EFI Relay: Inspection

  1. INSPECT EFI RELAY
    1. Check the resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.

        Standard

        TESTER CONNECTIONS AND SPECIFIED CONDITION TABLE

        Tester Connection Specified Condition
        3 - 5 10 kΩ or higher
        3 - 5 Below 1 Ω
        (Apply battery voltage to terminals 1 and 2)

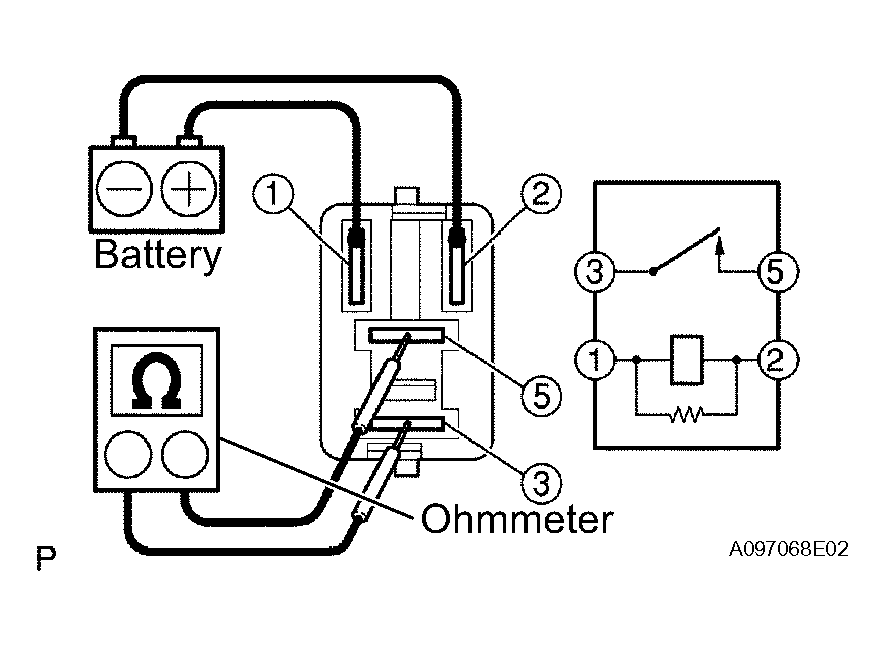

        Fig 1: Inspecting EFI Relay
        G04407937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        If the result is not as specified, replace the E.F.I relay.
