Accelerator Pedal: Inspection

INSPECT ACCELERATOR PEDAL ROD ASSEMBLY

Check the resistance.

Using an ohmmeter, measure the resistance between the terminals.

Standard

TESTER CONNECTIONS AND SPECIFIED CONDITION TABLE

Tester Connection	Specified Condition
5 (EP1) - 4 (VCP1)	1M Ω or higher
2 (EP2) - 1 (VCP2)	1M Ω or higher

If the result is not as specified, replace the accelerator pedal.

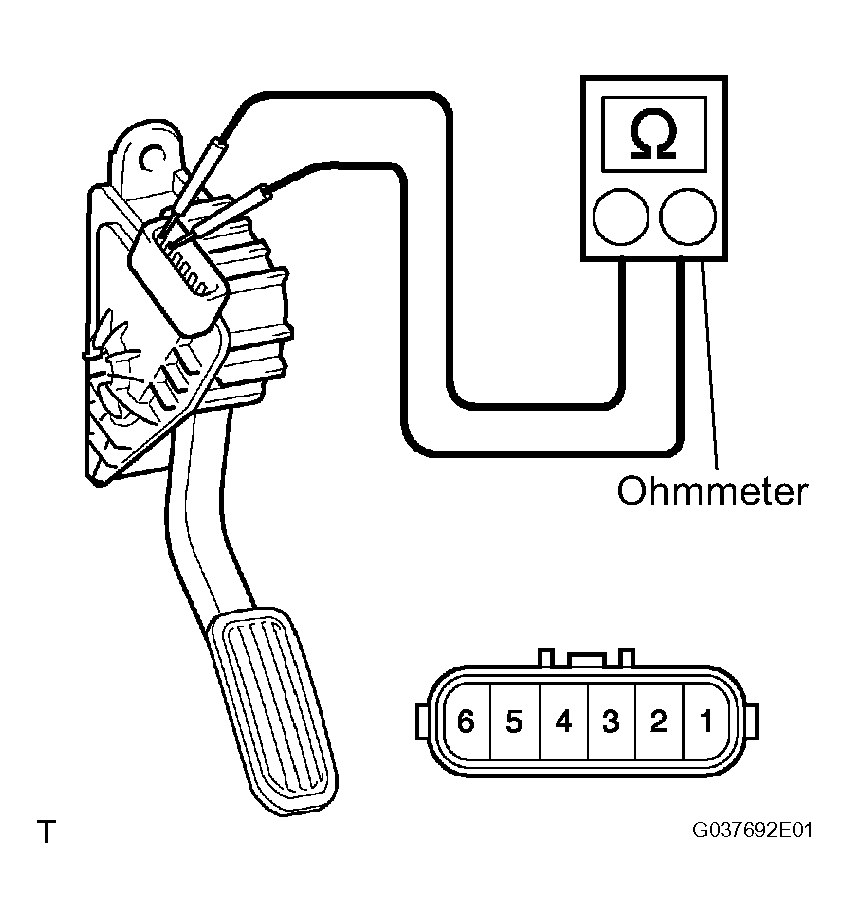

Fig 1: Measuring Resistance Between Terminals Using Ohmmeter
