OEM System Circuits: Taillight: Notes

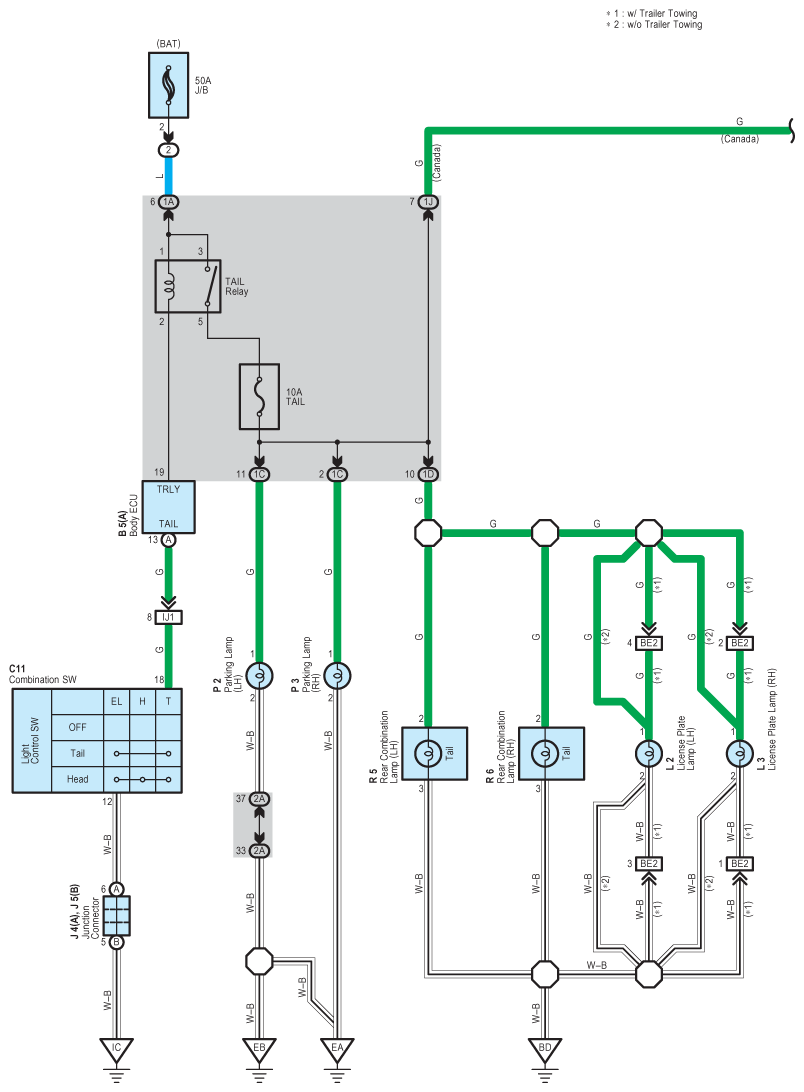

Fig 1: Taillight Wiring Diagram (1 Of 2)
G08788528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

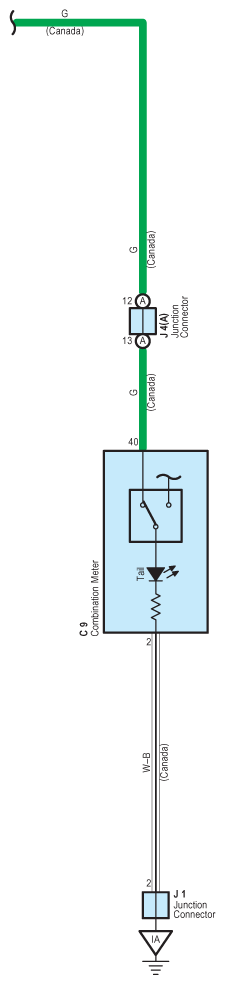

Fig 2: Taillight Wiring Diagram (2 Of 2)
G08788529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
