Multiplex Communication System - CAN: Notes

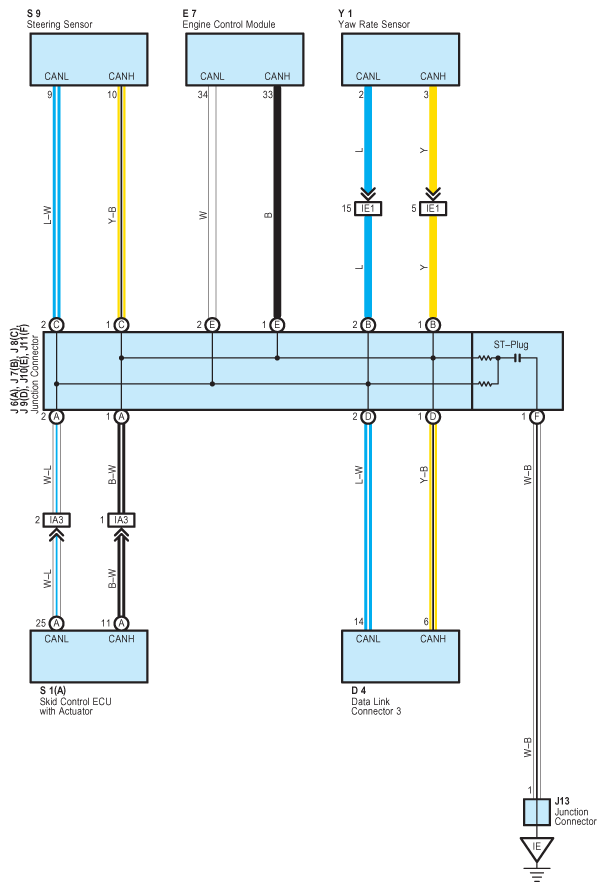

Fig 1: Multiplex Communication System Wiring Diagram (CAN)

G08788558

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
