Interior Light: Notes

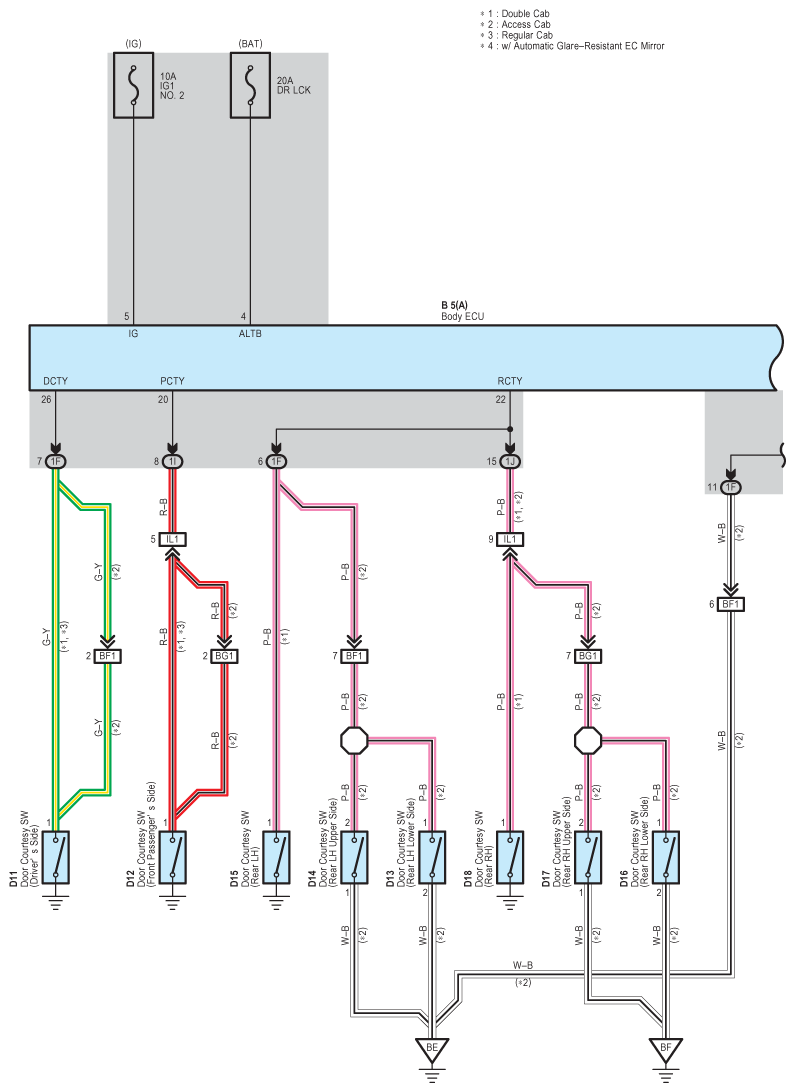

Fig 1: Interior Light Wiring Diagram (1 Of 2)
G08788534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

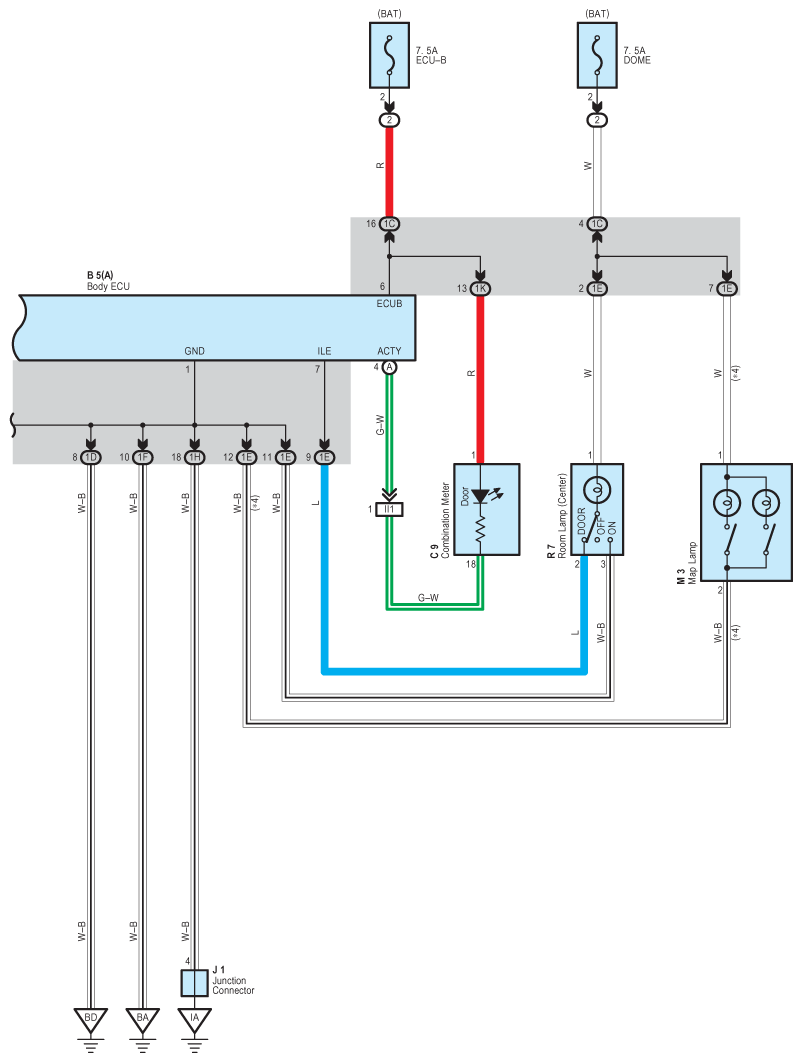

Fig 2: Interior Light Wiring Diagram (2 Of 2)
G08788535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
