OEM System Circuits: Illumination: Notes

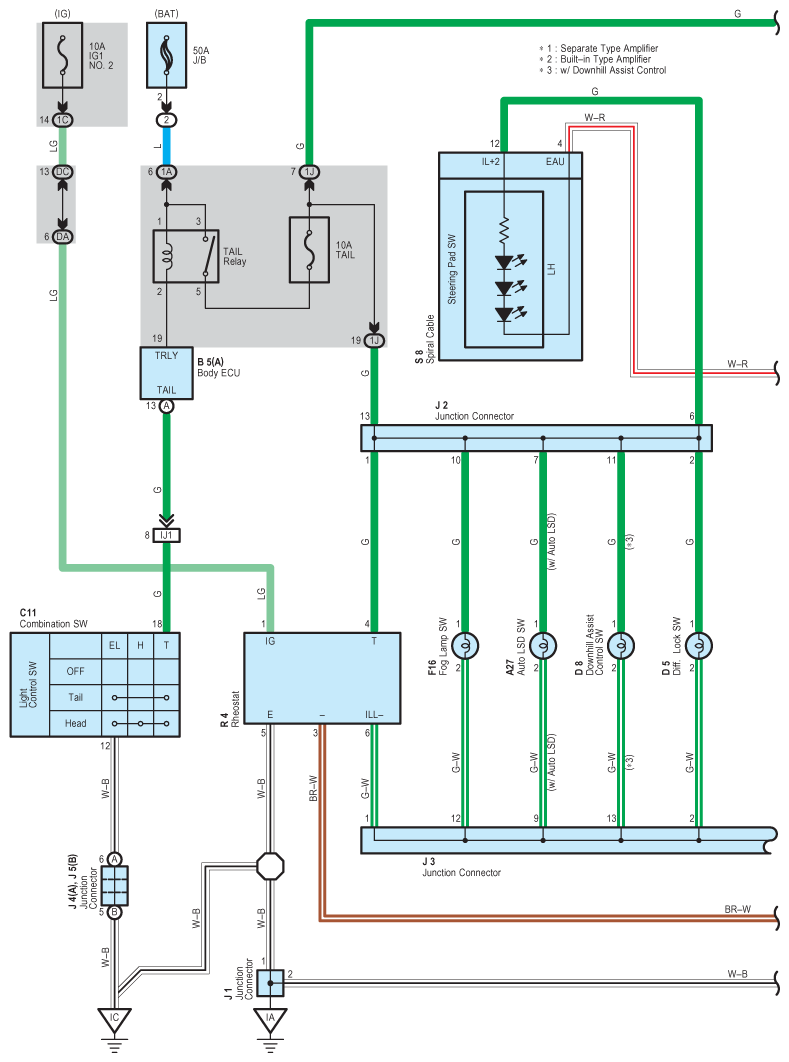

Fig 1: Illumination Wiring Diagram (1 Of 2)
G08788530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

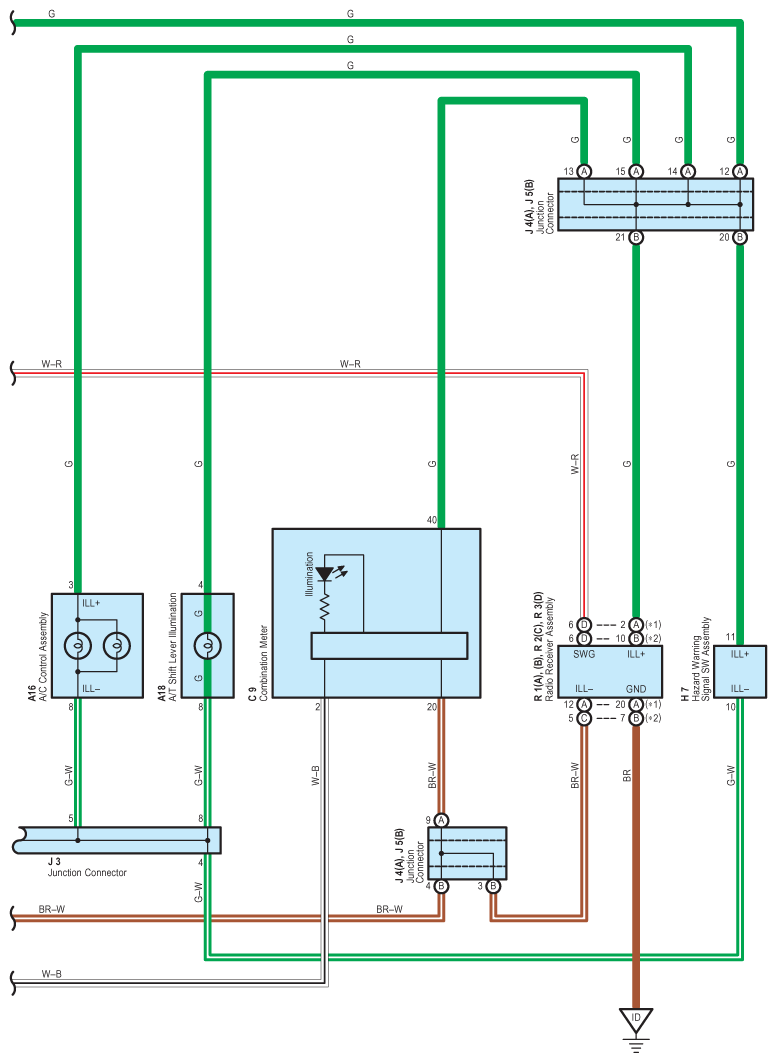

Fig 2: Illumination Wiring Diagram (2 Of 2)
G08788531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
