Engine Immobiliser System for 2TR-FE: Notes

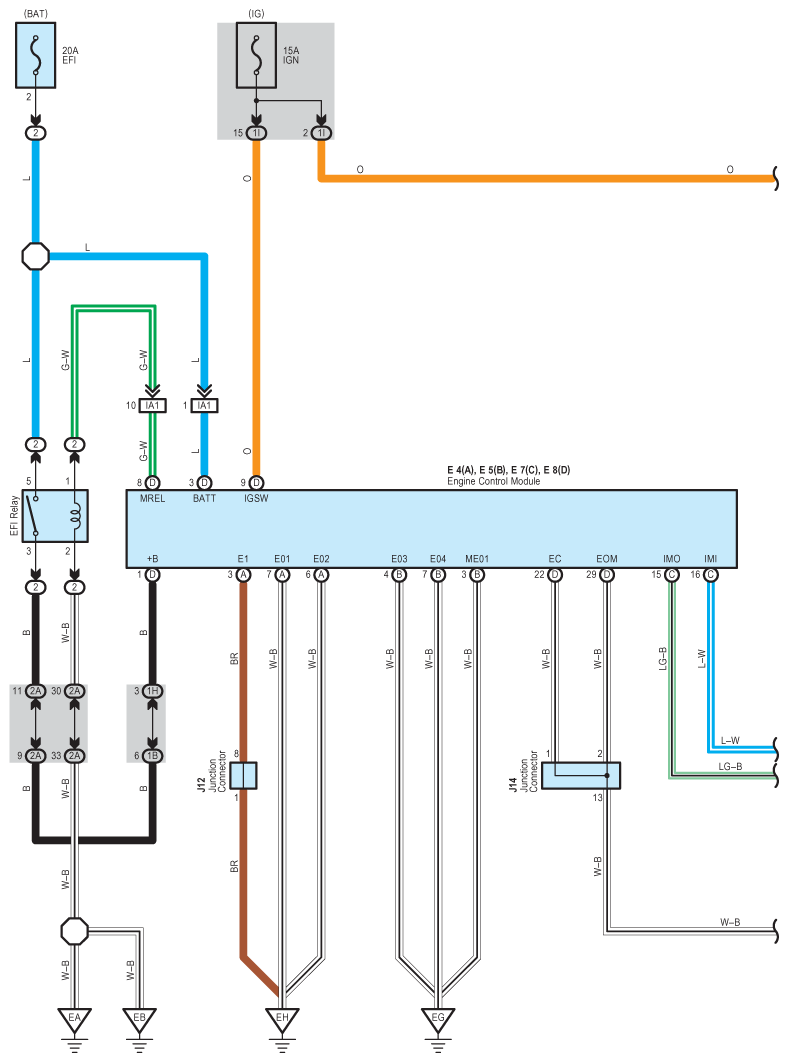

Fig 1: Engine Immobiliser System Wiring Diagram (2TR-FE; 1 Of 2)
G08788522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

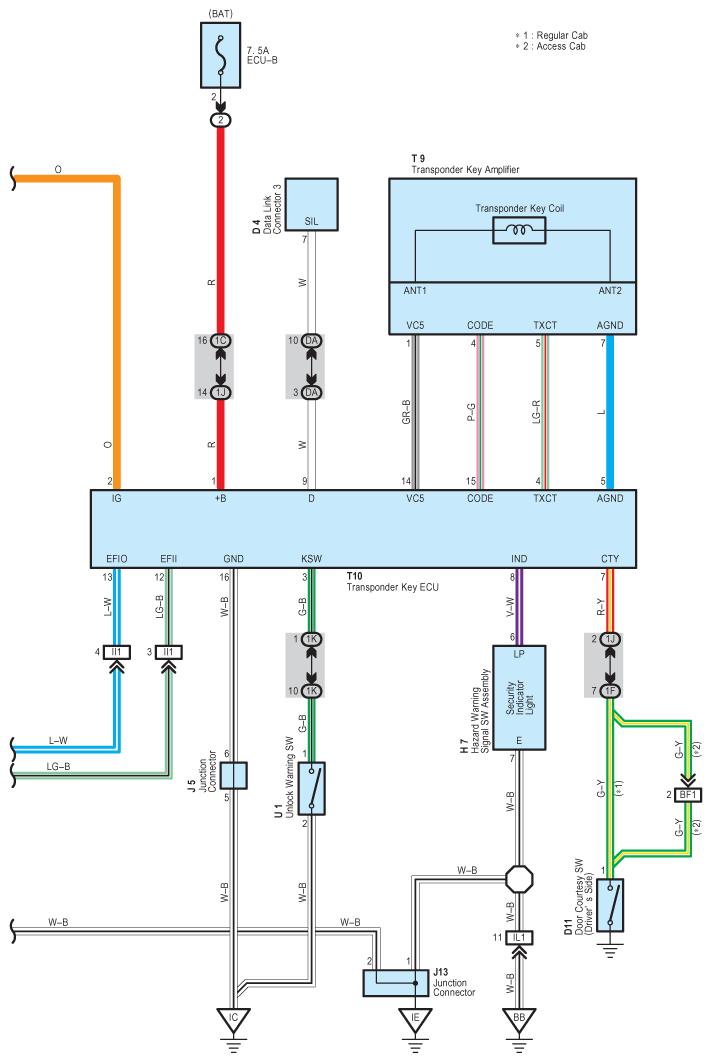

Fig 2: Engine Immobiliser System Wiring Diagram (2TR-FE; 2 Of 2)
G08788523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
