Engine Control for 1GR-FE: Notes

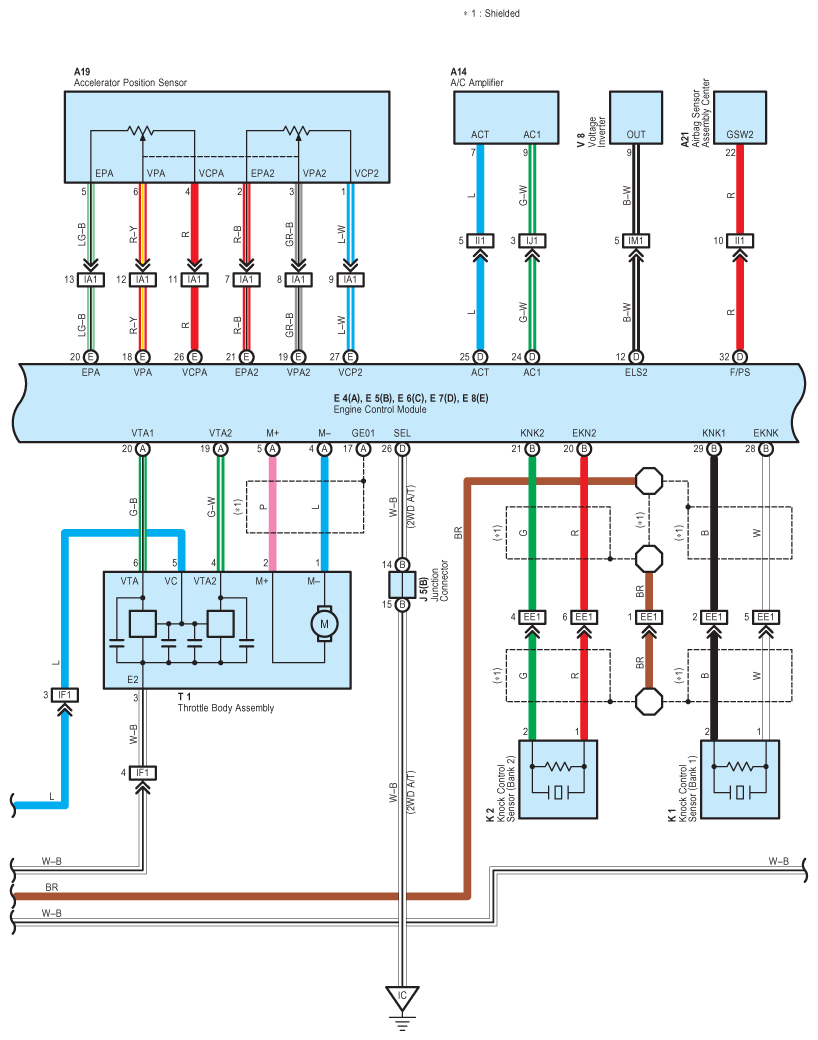

Fig 1: Engine Control System Wiring Diagram (1GR-FE; 1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

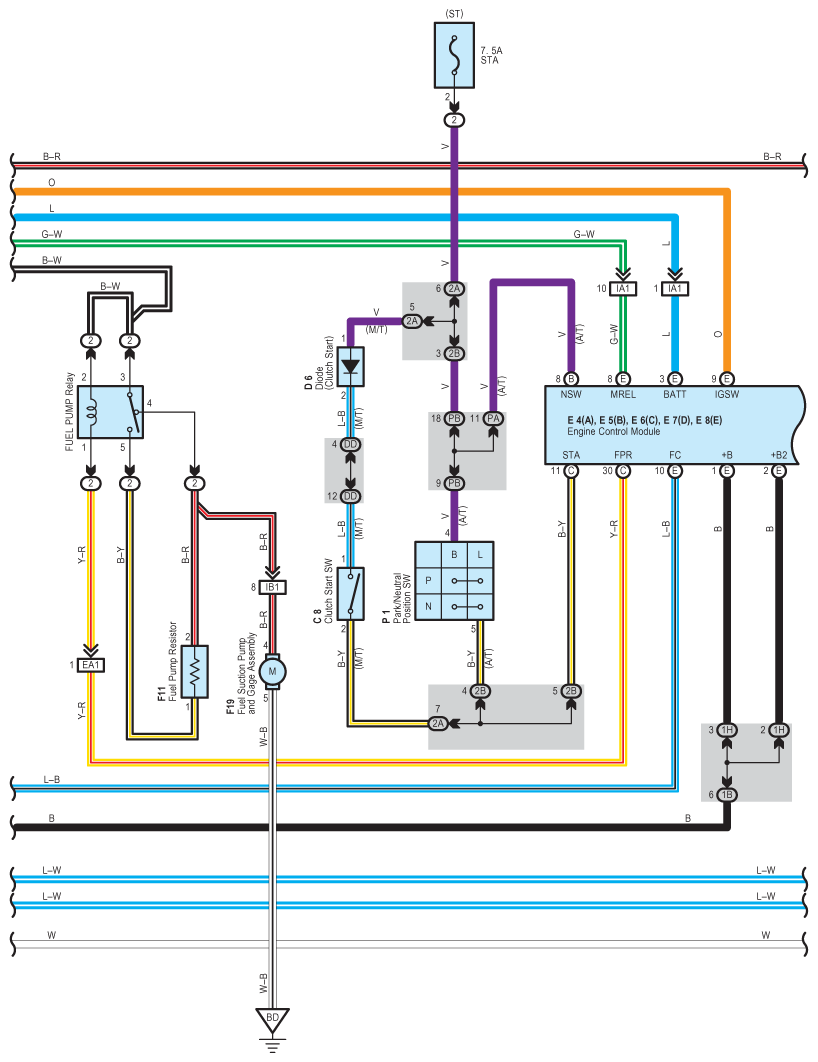

Fig 2: Engine Control System Wiring Diagram (1GR-FE; 2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

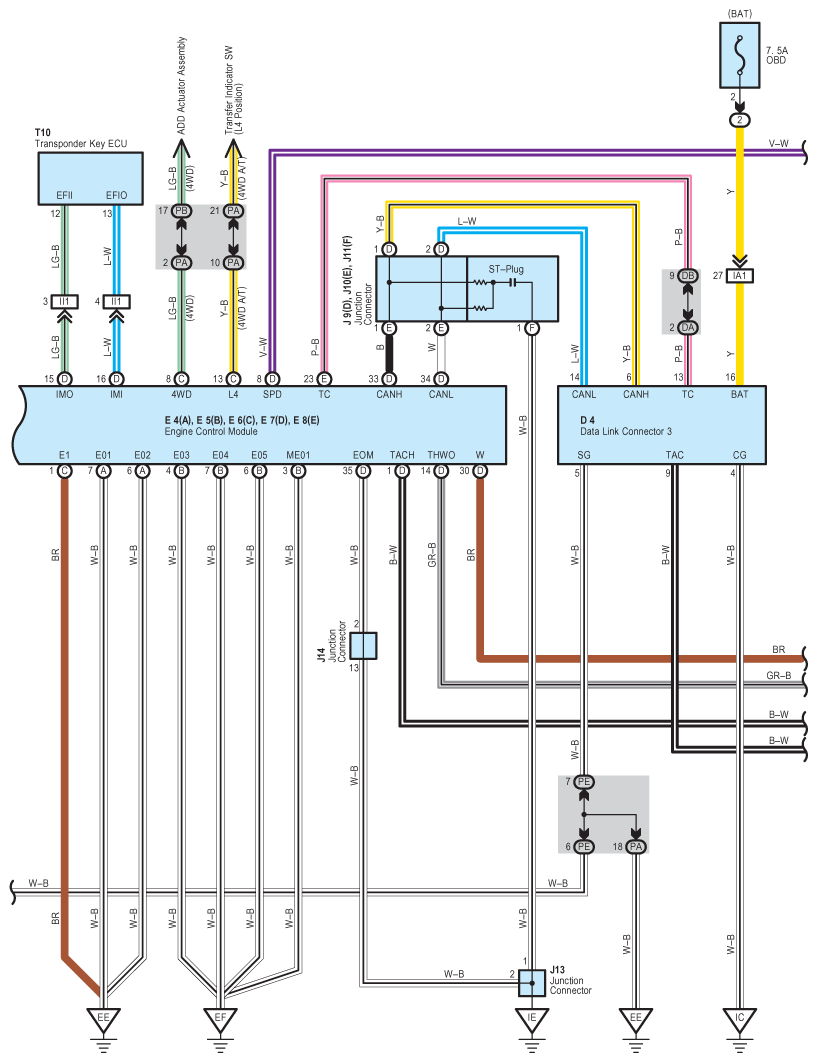

Fig 3: Engine Control System Wiring Diagram (1GR-FE; 3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

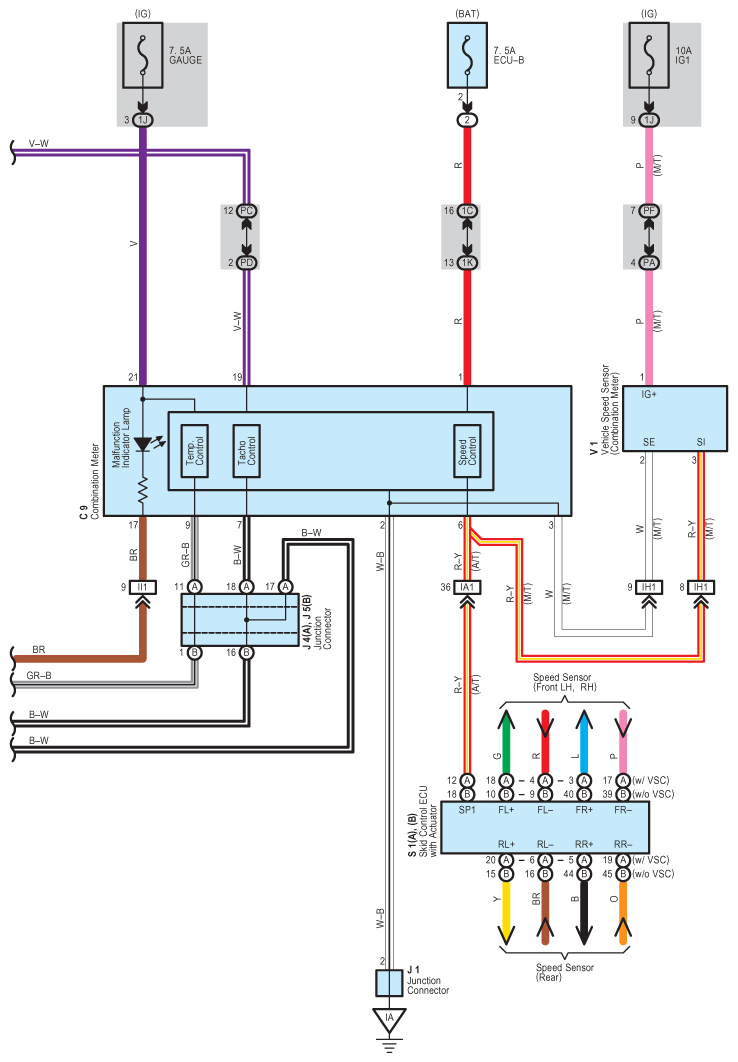

Fig 4: Engine Control System Wiring Diagram (1GR-FE; 4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

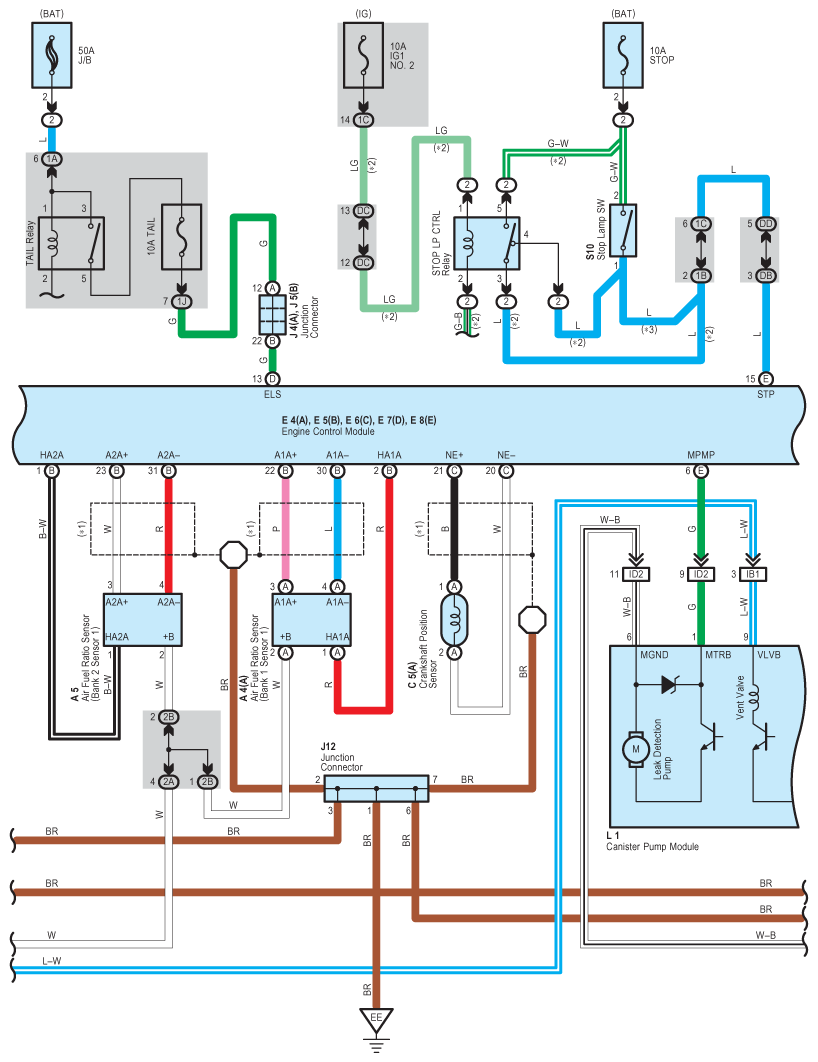

Fig 5: Engine Control System Wiring Diagram (1GR-FE; 5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

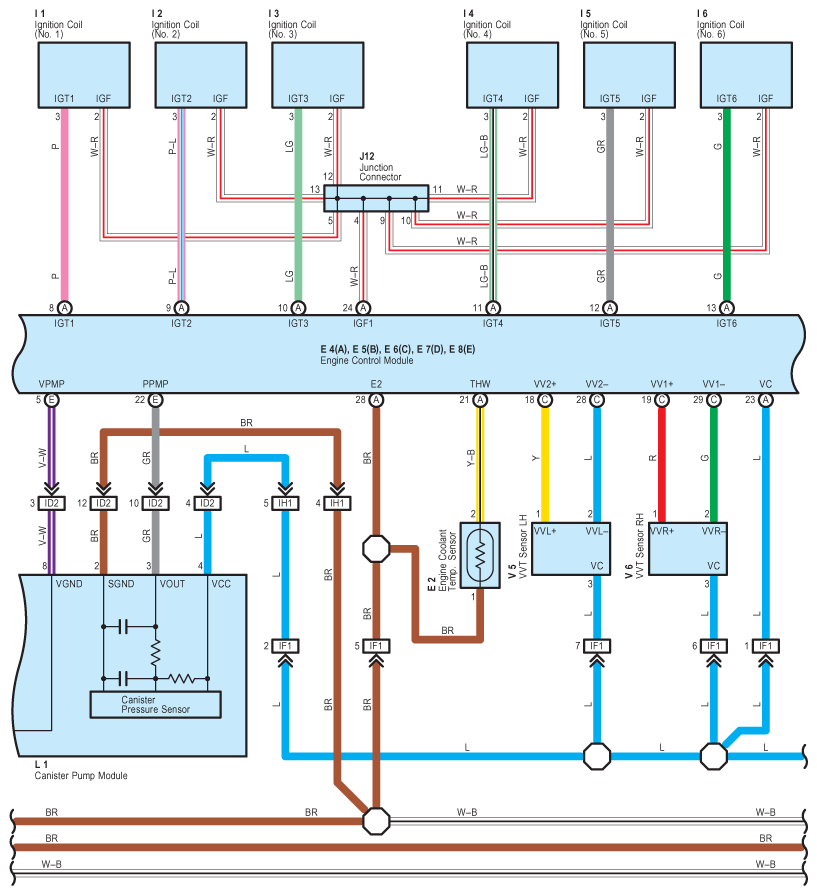

Fig 6: Engine Control System Wiring Diagram (1GR-FE; 6 Of 8)

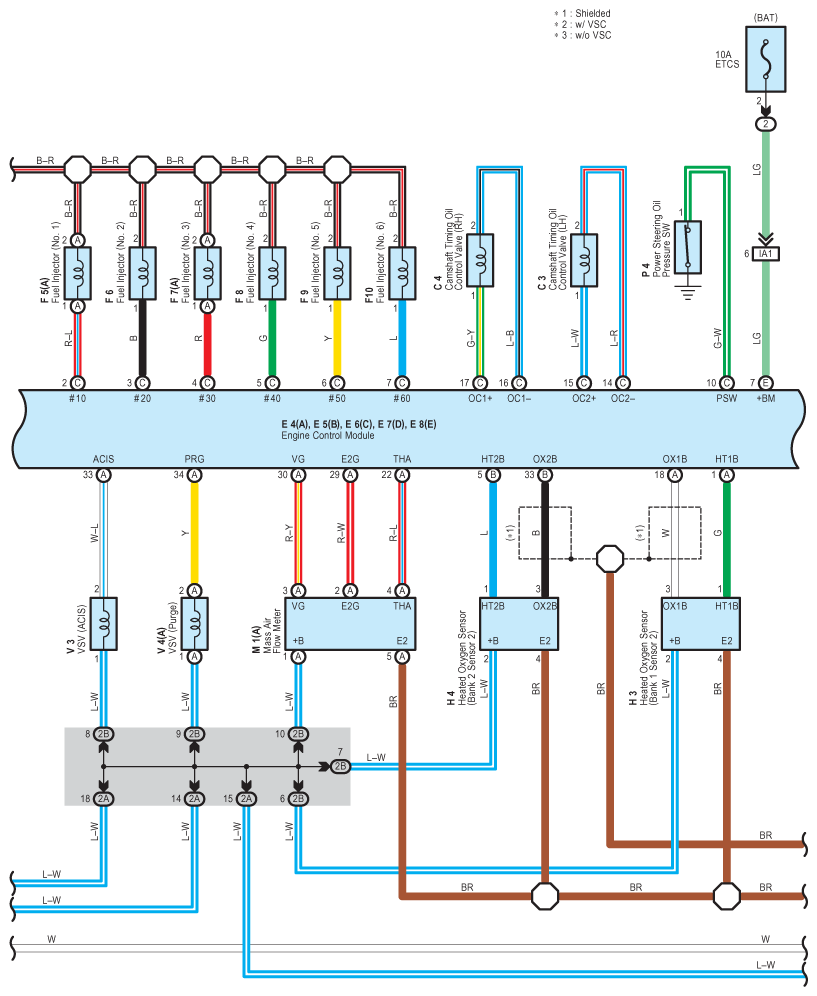

Fig 7: Engine Control System Wiring Diagram (1GR-FE; 7 Of 8)

Fig 8: Engine Control System Wiring Diagram (1GR-FE; 8 Of 8)
