Door Lock Control: Notes

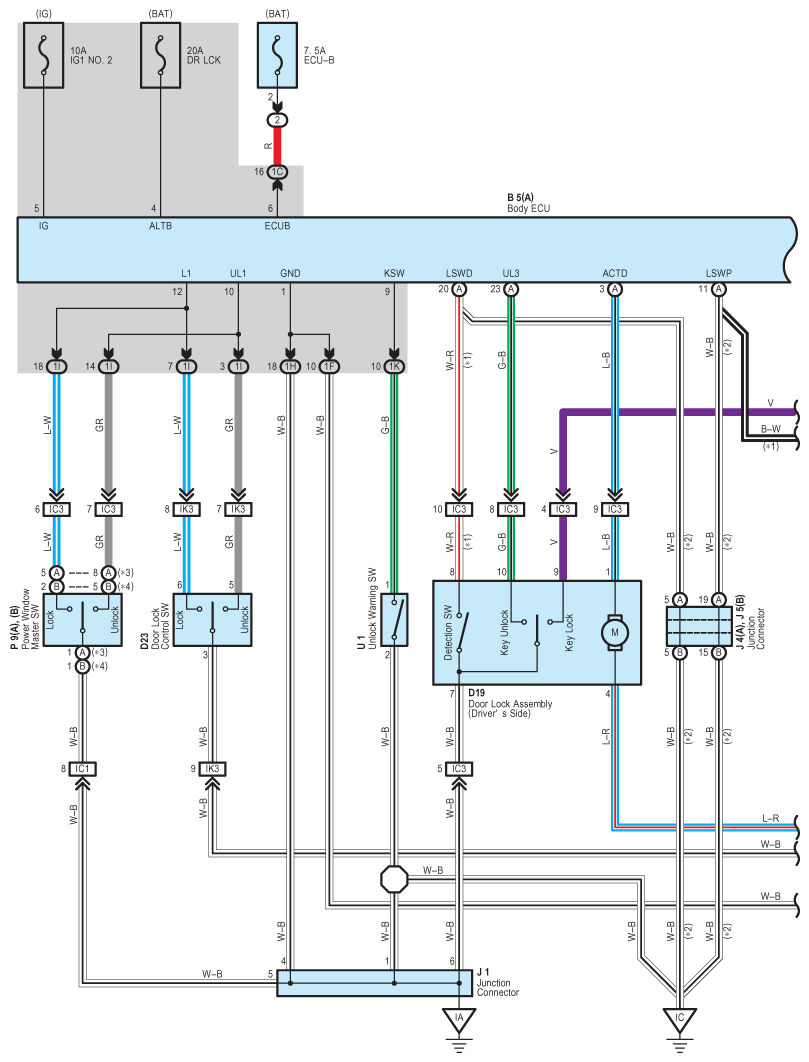

Fig 1: Door Lock Control System Wiring Diagram (1 Of 2)
G08788577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

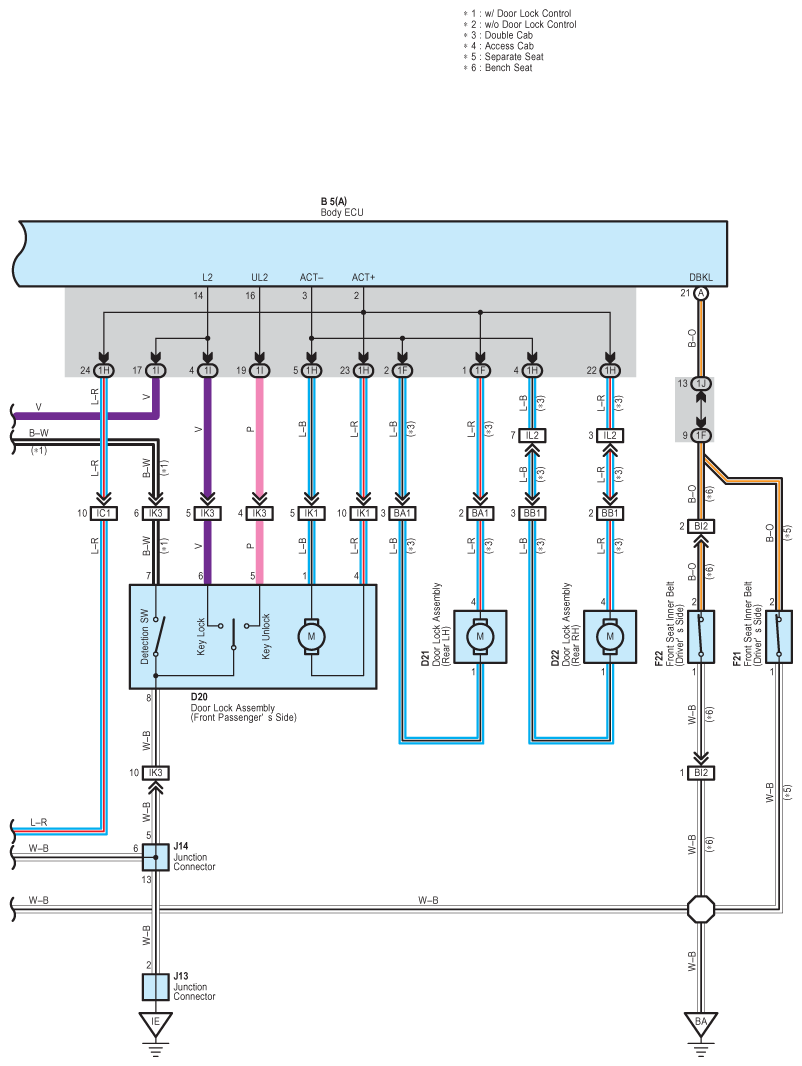

Fig 2: Door Lock Control System Wiring Diagram (2 Of 2)
G08788578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
