Cruise Control for 2TR-FE: Notes

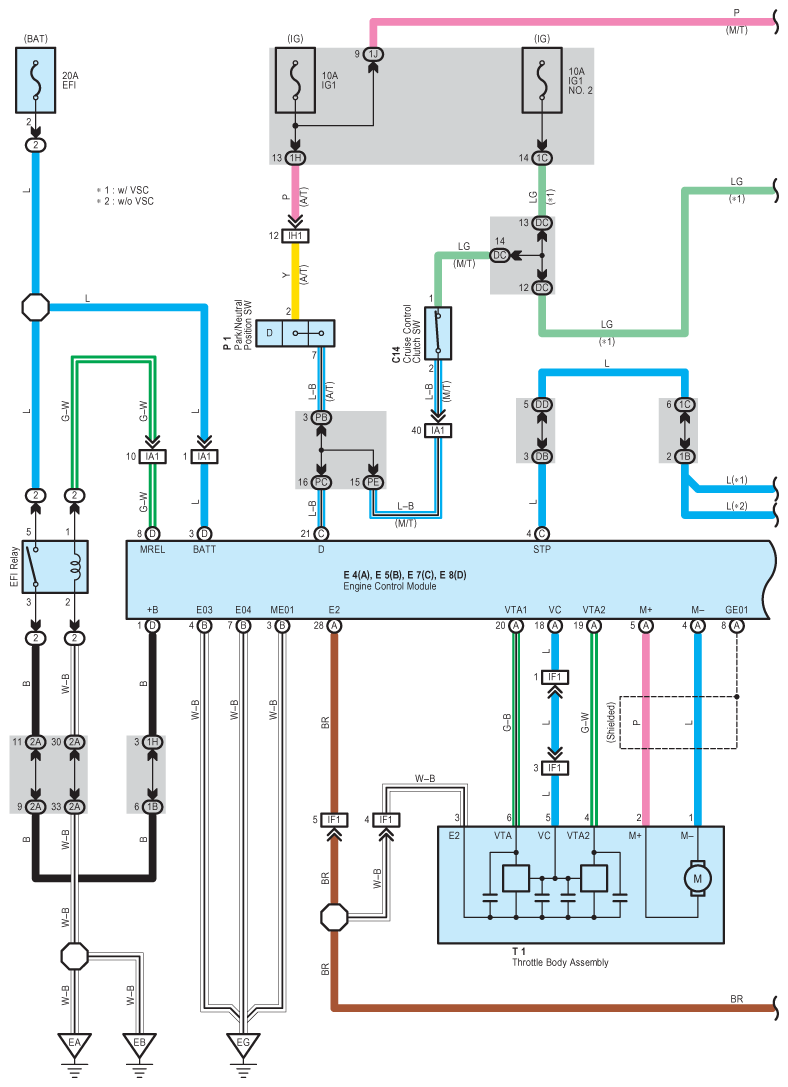

Fig 1: Cruise Control System Wiring Diagram (2TR-FE; 1 Of 4)
G08788554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

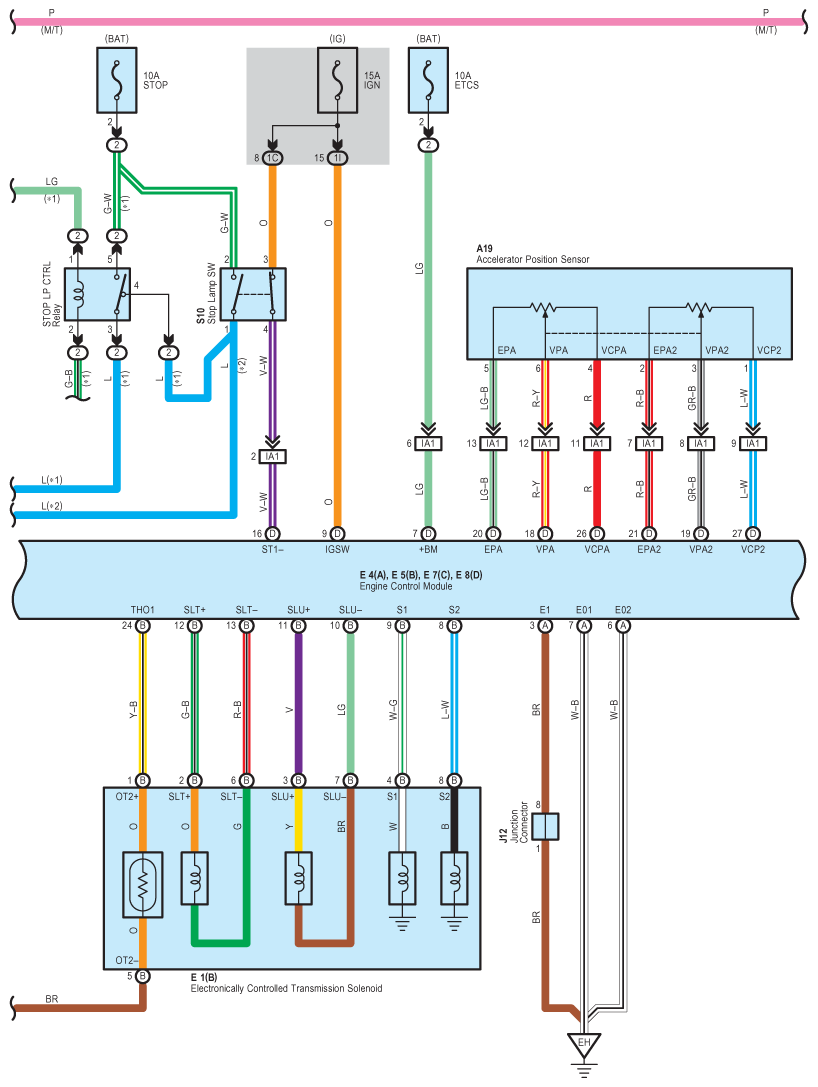

Fig 2: Cruise Control System Wiring Diagram (2TR-FE; 2 Of 4)
G08788555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Cruise Control System Wiring Diagram (2TR-FE; 3 Of 4)
G08788556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

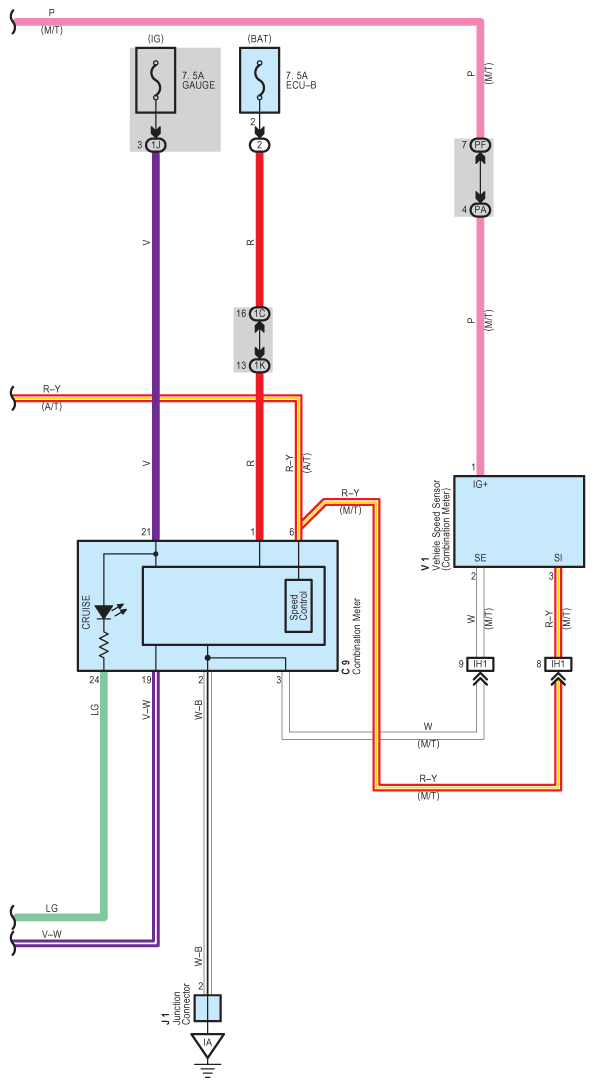

Fig 4: Cruise Control System Wiring Diagram (2TR-FE; 4 Of 4)
G08788557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
