Engine Assembly: Installation

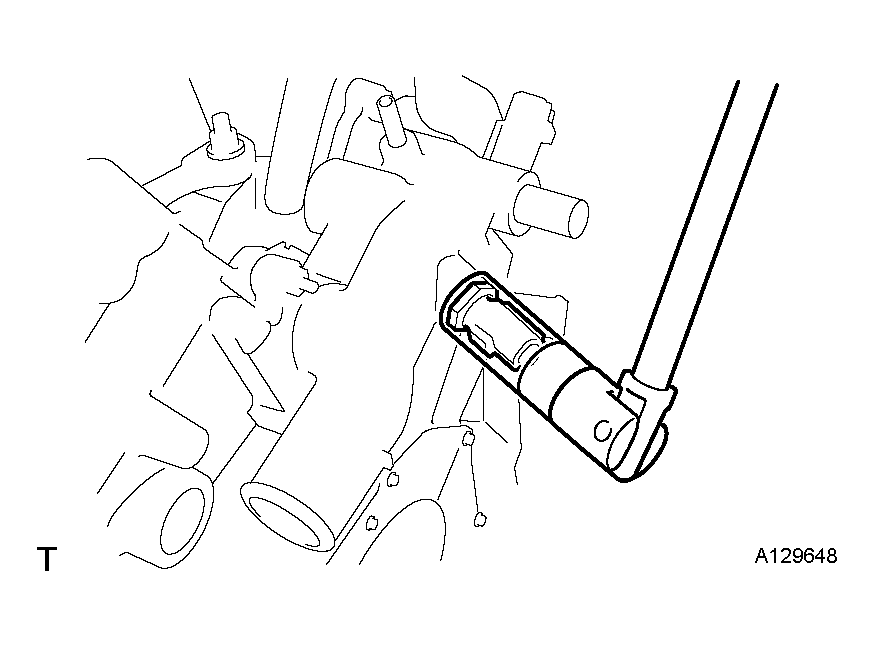

1. Using a 19 mm deep socket wrench, install the EFI engine coolant temperature sensor and a new gasket.

   Torque: 20 N*m (200 kgf*cm, 14 ft.*lbf)

1. Clean the threads of the oil pressure switch. Apply adhesive to 2 or 3 threads of the oil pressure switch.

   Adhesive: Part No. 08833-00080 THREE BOND 1344, LOCTITE 242 or equivalent

2. Using a 24 mm deep socket wrench install the oil pressure switch.

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

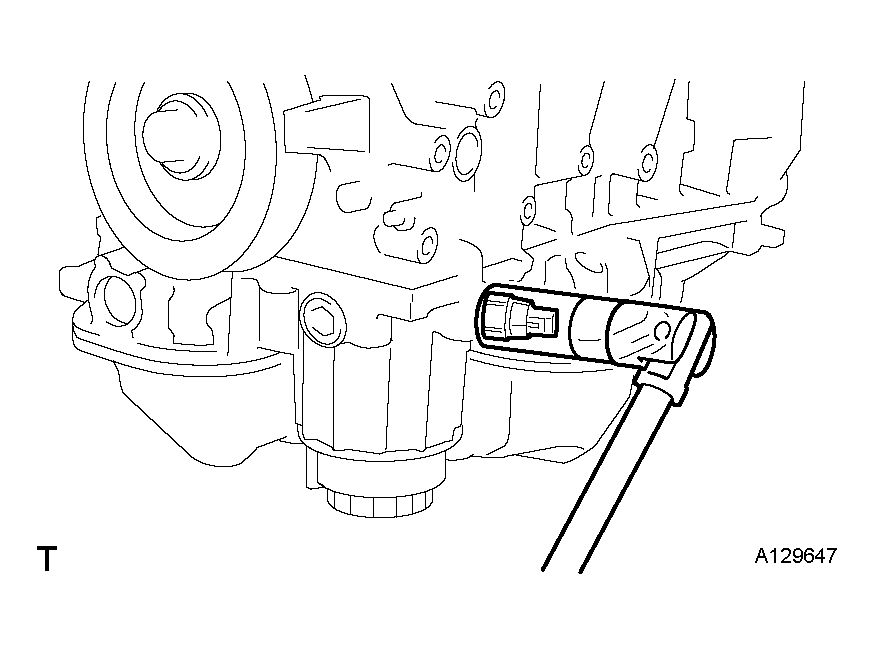

   Fig 2: Installing Oil Pressure Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Installing Engine Mounting Bracket Front

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the engine mounting bracket front No. 1 LH with the 6 bolts.

   Torque: 54 N*m (551 kgf*cm, 40 ft.*lbf)

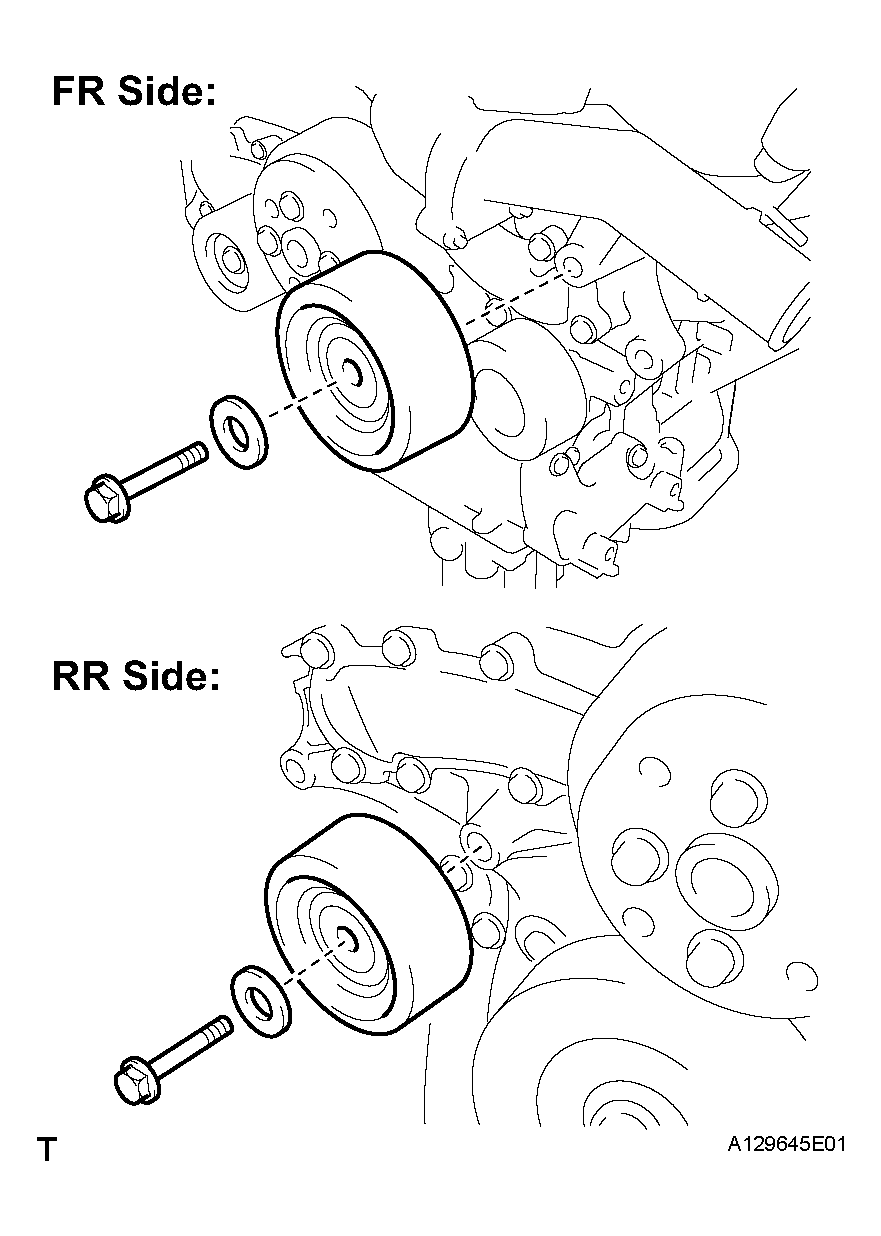

1. Install the idler pulley sub-assembly No. 2 and cover plate with the bolt.
   Fig 4: Installing Idler Pulley Sub-Assembly And Cover Plate With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

1. Install the timing gear cover No. 2 with the 2 bolts.

   Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

1. Temporarily install the V-ribbed belt tensioner with the 5 bolts.
2. Install the V-ribbed belt tensioner by tightening the bolt 1 and bolt 2 in the order shown in Fig 5.

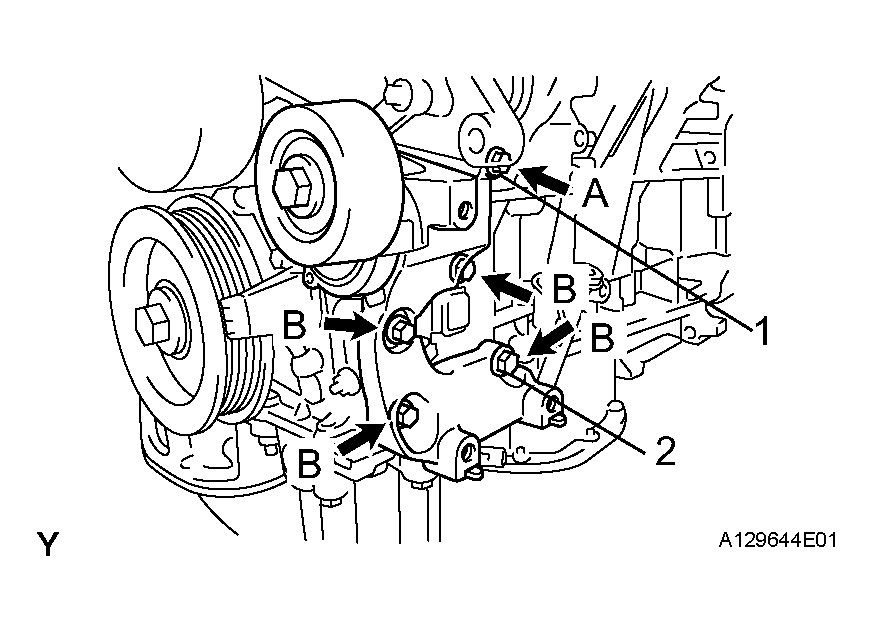

   Fig 5: Installing V-Ribbed Belt Tensioner

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

3. Tighten the other bolts.

   Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

   HINT:

   Each bolt length is as follows:

   A: 70 mm (2.76 in.)

   B: 33 mm (1.30 in.)

1. Install the drive shaft bearing bracket with the 3 bolts.

   Torque: 64 N*m (650 kgf*cm, 47 ft.*lbf)

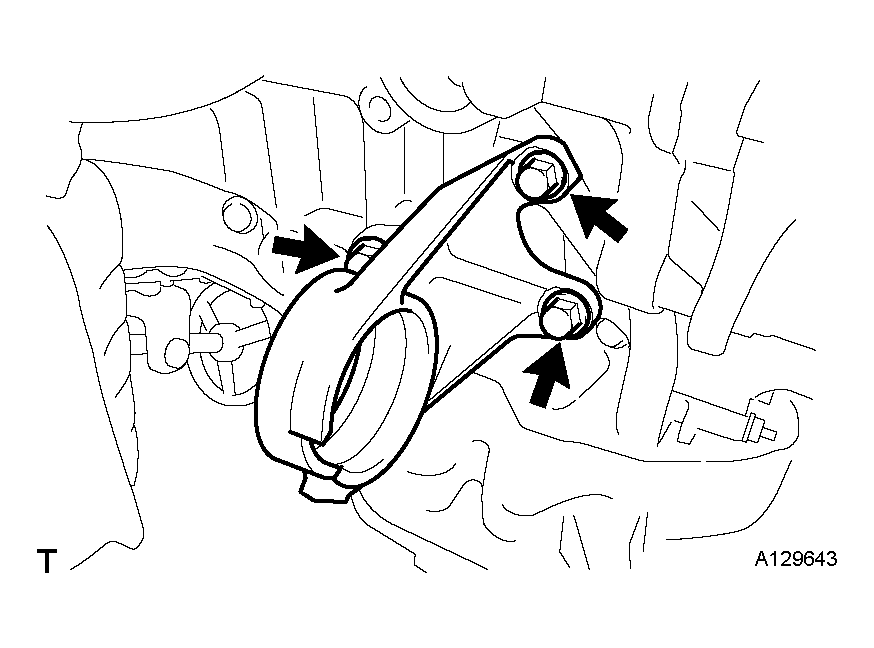

   Fig 6: Installing Drive Shaft Bearing Bracket With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the engine mounting bracket RH with the 3 bolts.

   Torque: 54 N*m (551 kgf*cm, 40 ft.*lbf)

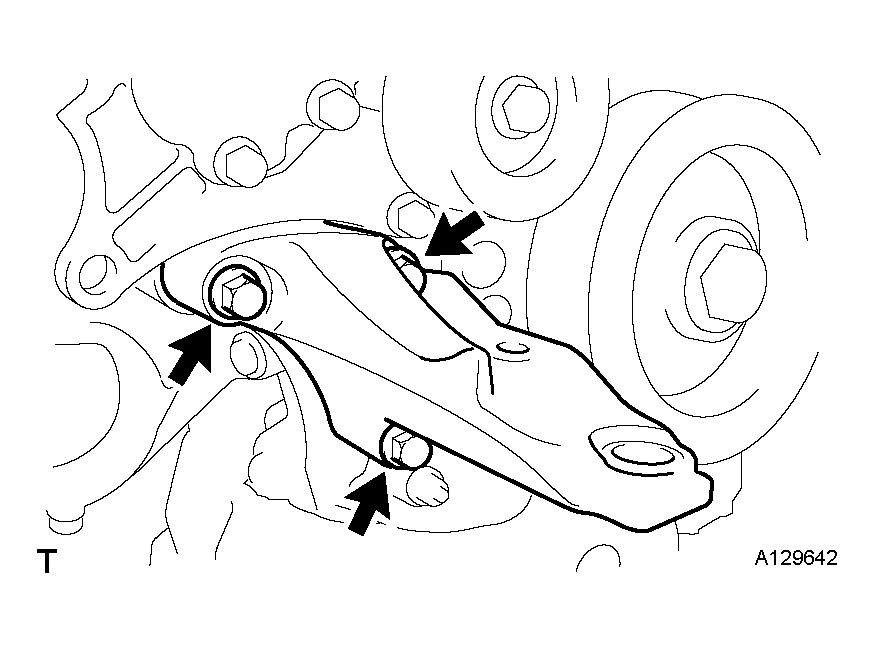

   Fig 7: Installing Engine Mounting Bracket RH With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new gasket as shown in Fig 8.

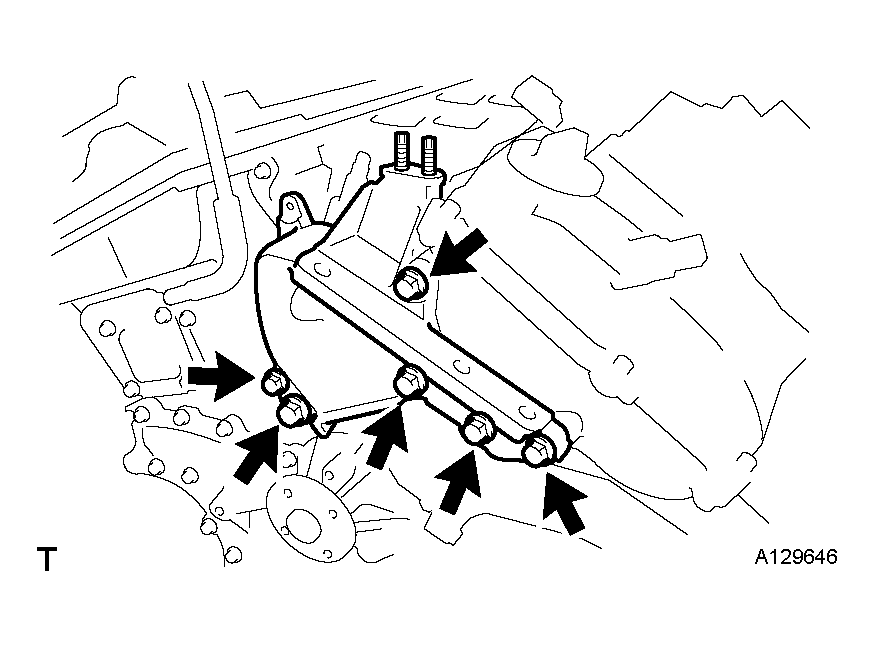

   Fig 8: Installing Exhaust Manifold Sub-Assembly RH With Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the exhaust manifold sub-assembly RH with the 6 nuts.

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

1. Install the insulator No. 2 with the 3 bolts.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

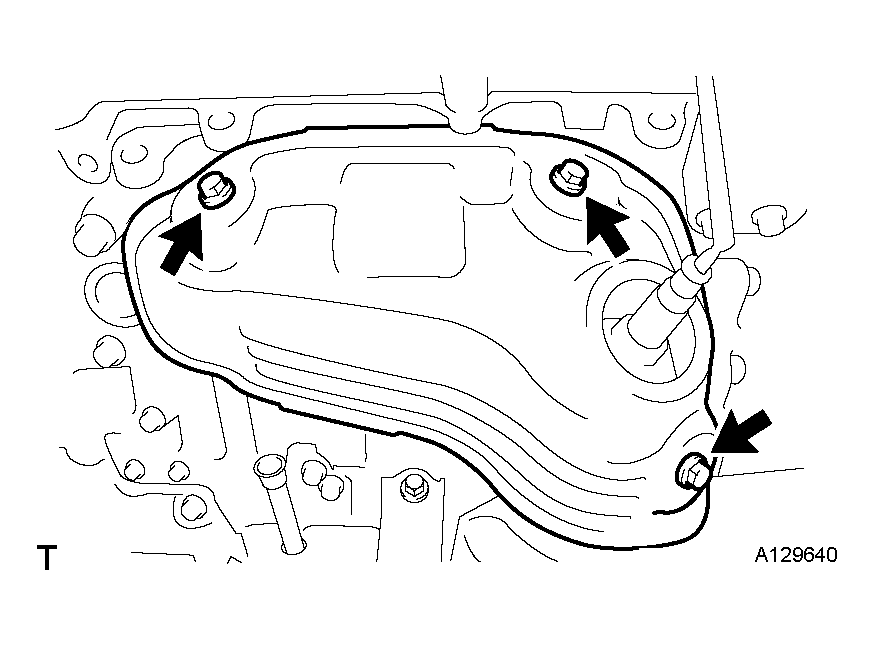

   Fig 9: Installing Insulator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the manifold stay No. 2 with the 2 bolts.

   Torque: 34 N*m (347 kgf*cm, 25 ft.*lbf)

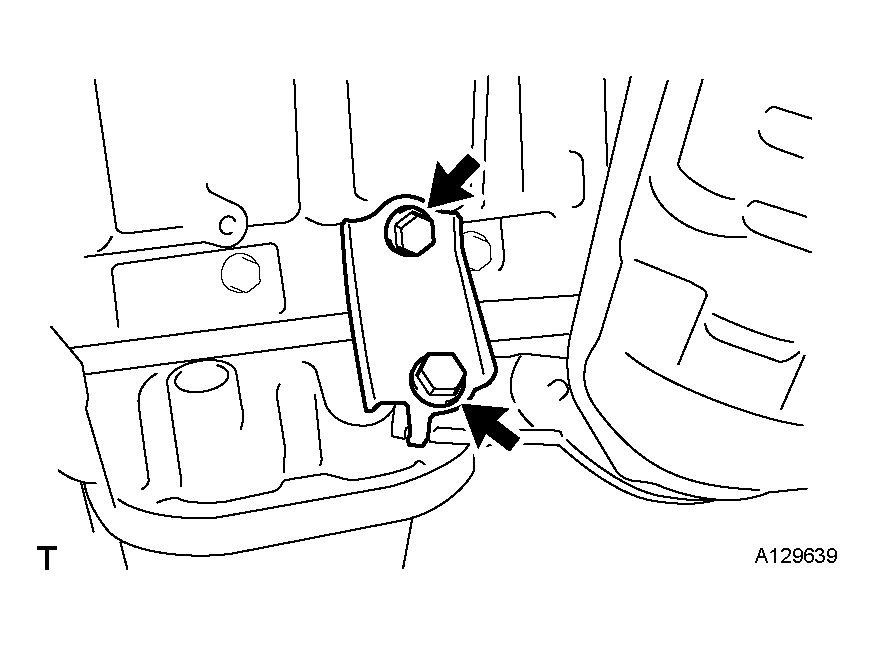

   Fig 10: Installing Manifold Stay

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install 2 new O-rings to the oil level gauge guide.

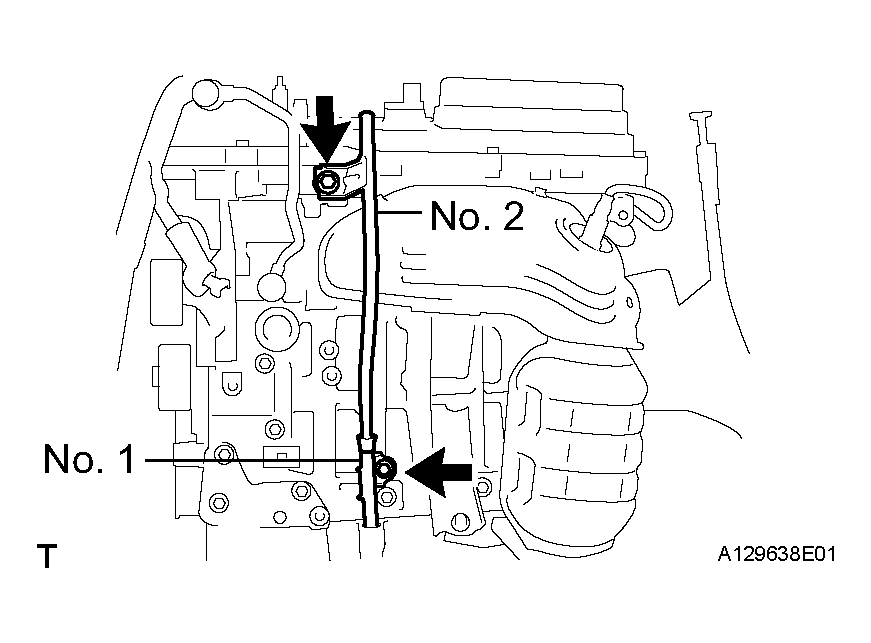

   Fig 11: Installing Oil Level Gauge

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply a coat of engine oil lightly to the O-rings.
3. Push in the oil level gauge guide end into the guide hole.
4. Install the oil level gauge guide No. 1 with the bolt.

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

5. Install the oil level gauge guide No. 2 with the bolt.

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

6. Install the oil level gauge.

1. Install a new gasket as shown in Fig 12.

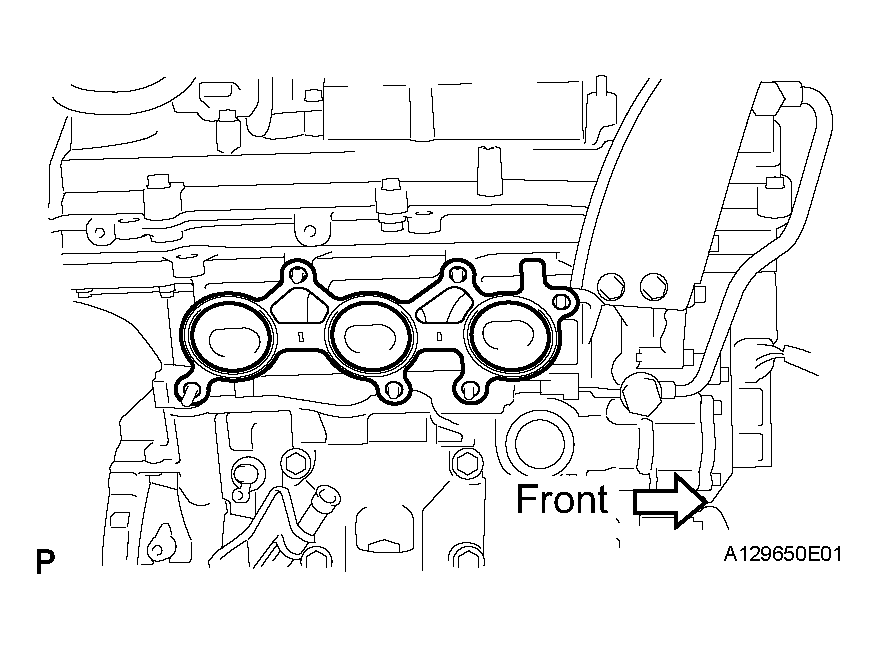

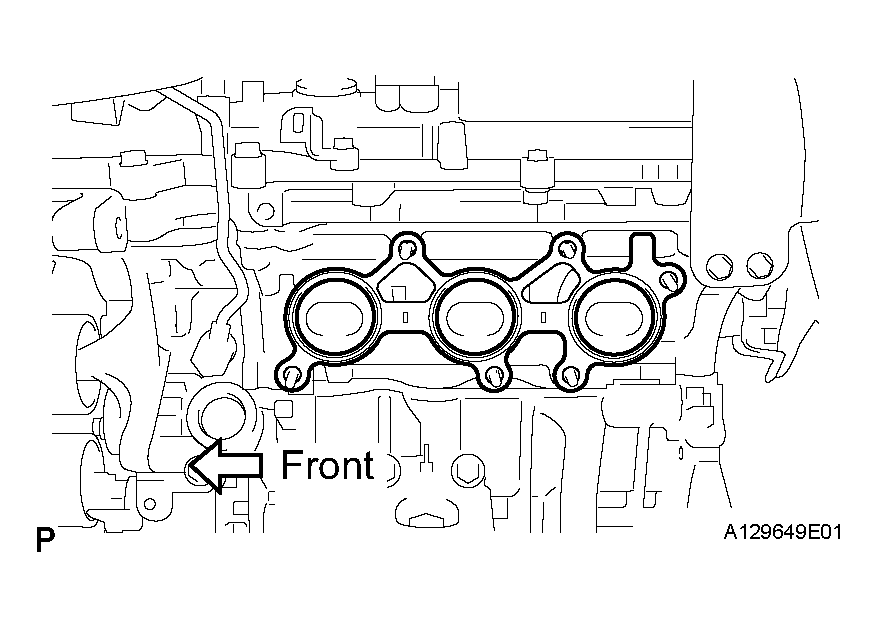

   Fig 12: Installing New Gasket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the exhaust manifold sub-assembly RH with the 6 nuts.

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

1. Install the mounting stay No. 2 RH with the bolt.

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

1. Install the 6 ignition coil assembly with the 6 bolts.

   Torque: 10 N*m (102 kgf*cm, 7 in.*lbf)

SST 09213-70011, 09330-00021

1. Install the engine mounting insulators RH and LH with the 2 nuts.

   Torque: 95 N*m (969 kgf*cm, 70 ft.*lbf)

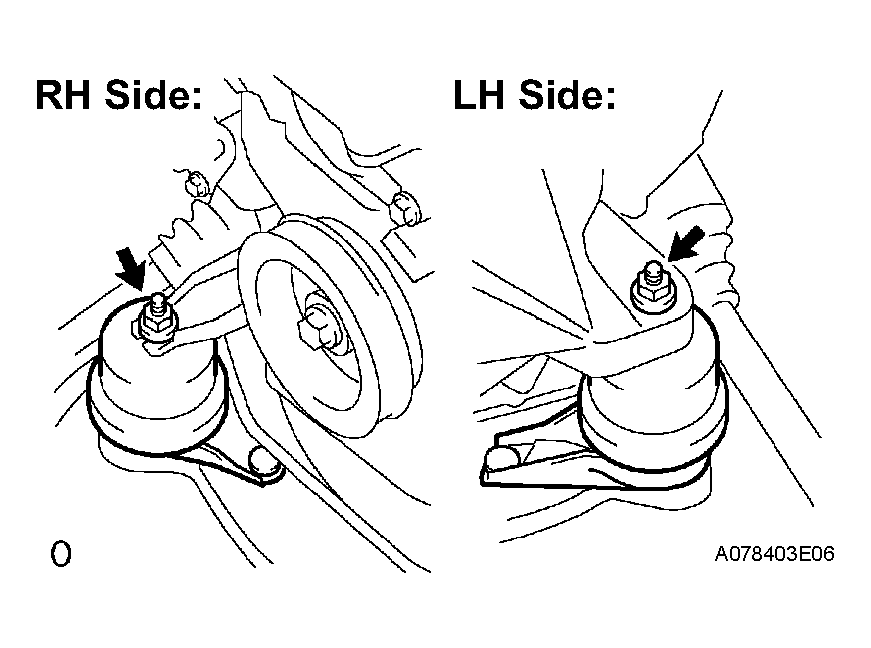

   Fig 13: Installing Engine Mounting Insulators RH And LH With Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

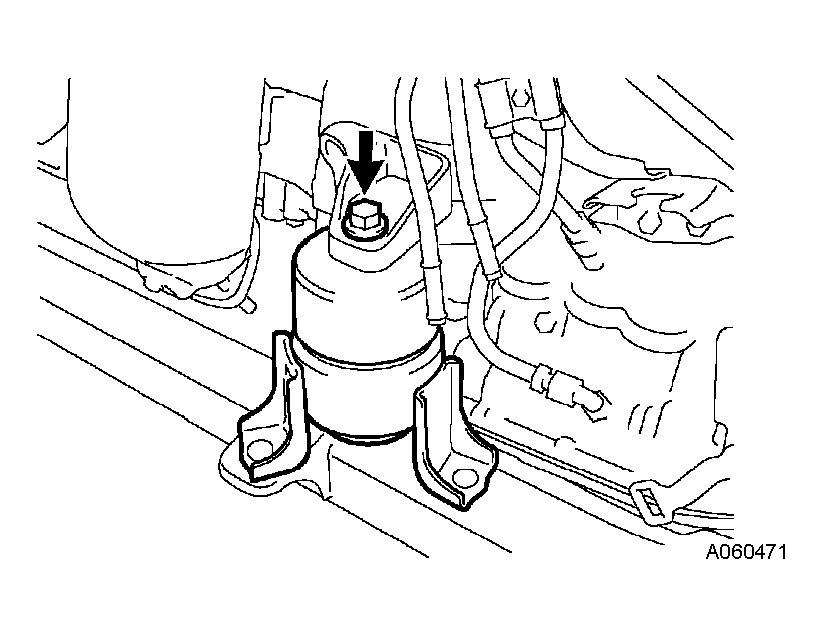

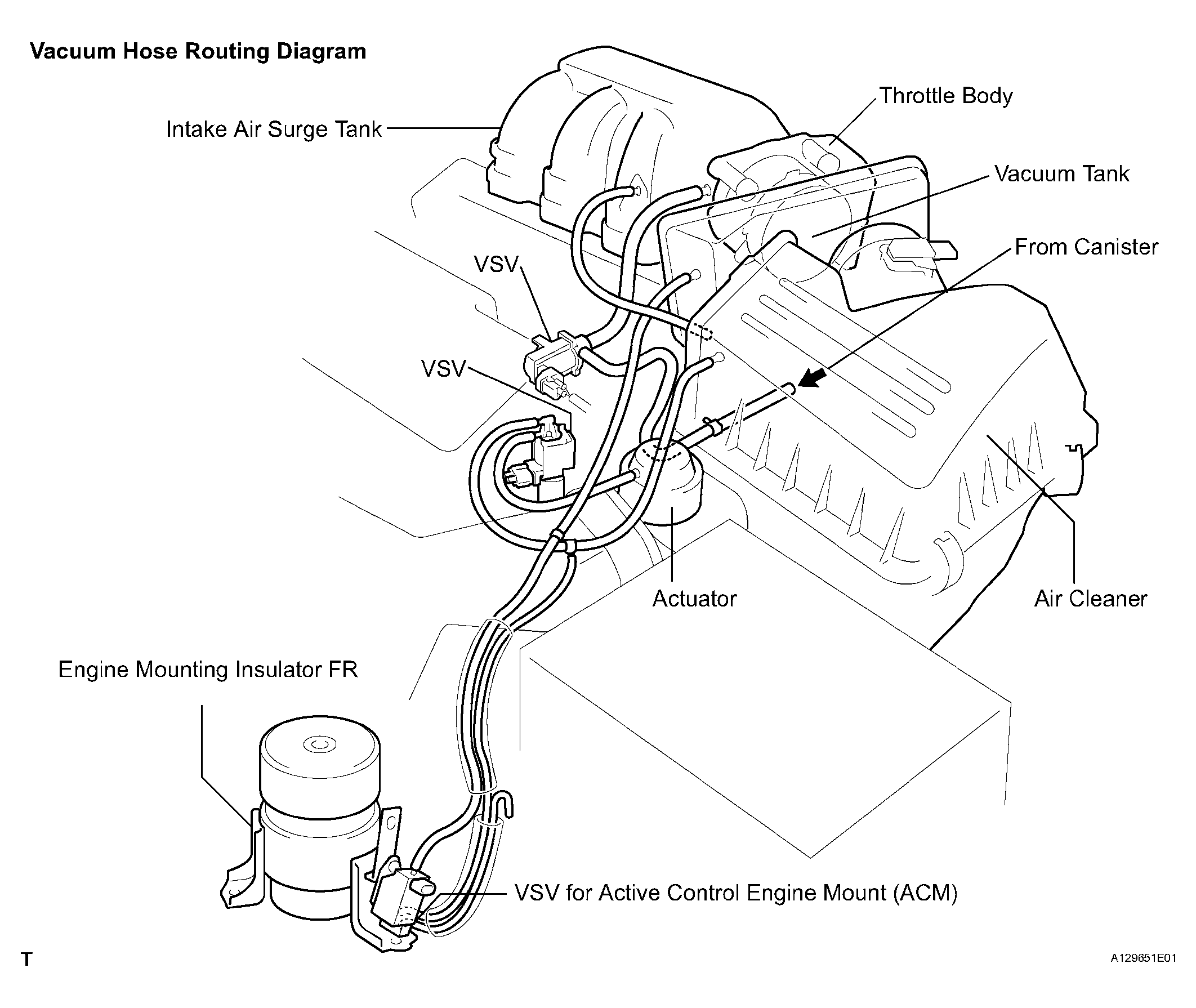

2. Install the engine mounting insulator FR with the bolt.

   Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)

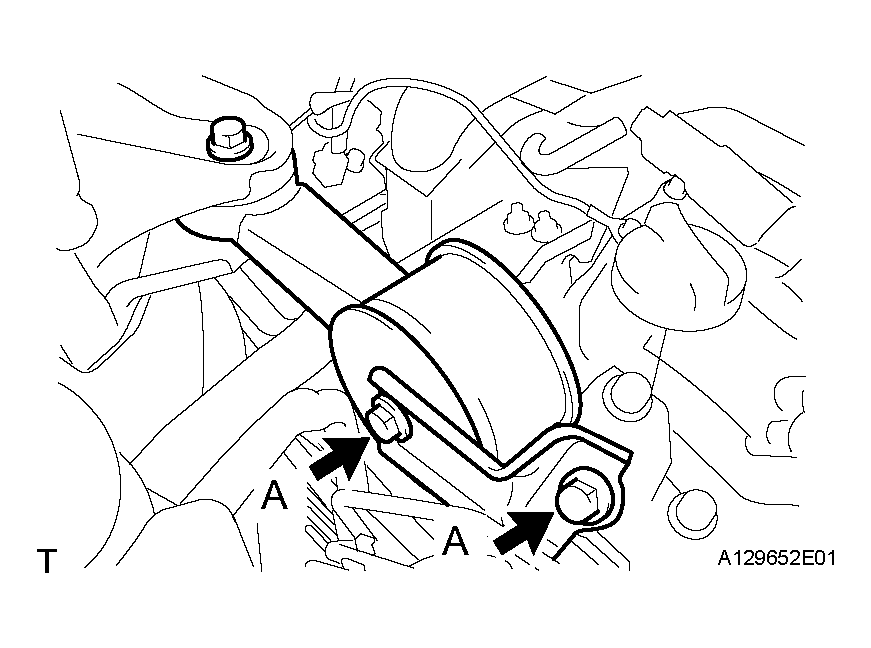

   Fig 14: Installing Engine Mounting Insulator FR With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the vane pump with the 2 bolts and nut.

   Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

2. Install the pressure feed tube clamp bolt.

   Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

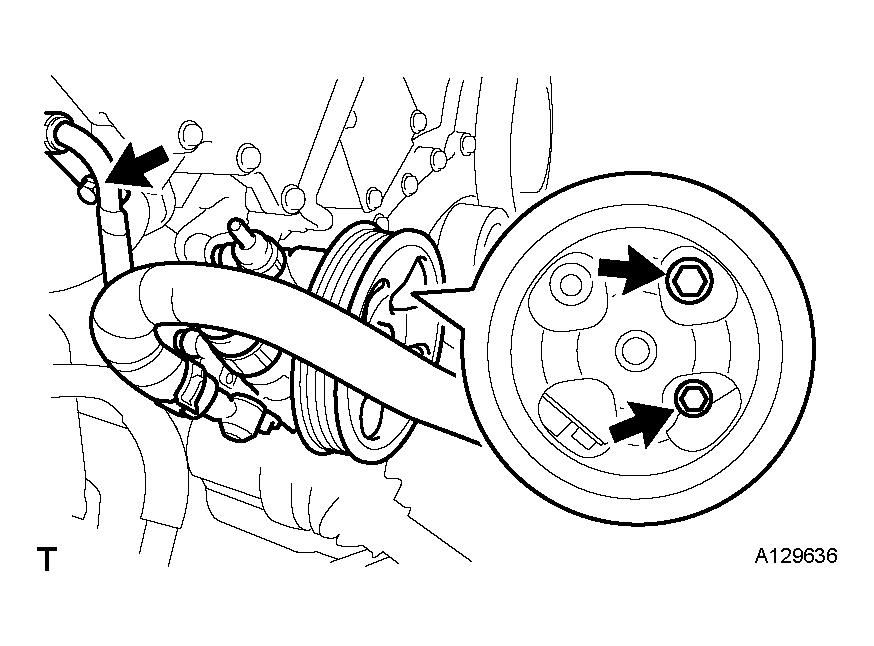

   Fig 15: Installing Vane Pump With Bolts And Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Set the engine assembly with transaxle on the engine lifter.
2. Install the engine assembly to the vehicle.
3. Install the frame side rail plates RH and LH with the 4 bolts and 2 nuts.

   Torque: A

   85 N*m (867 kgf*cm, 63 ft.*lbf)

   B: Go to Next Step

   32 N*m (329 kgf*cm, 24 ft.*lbf)

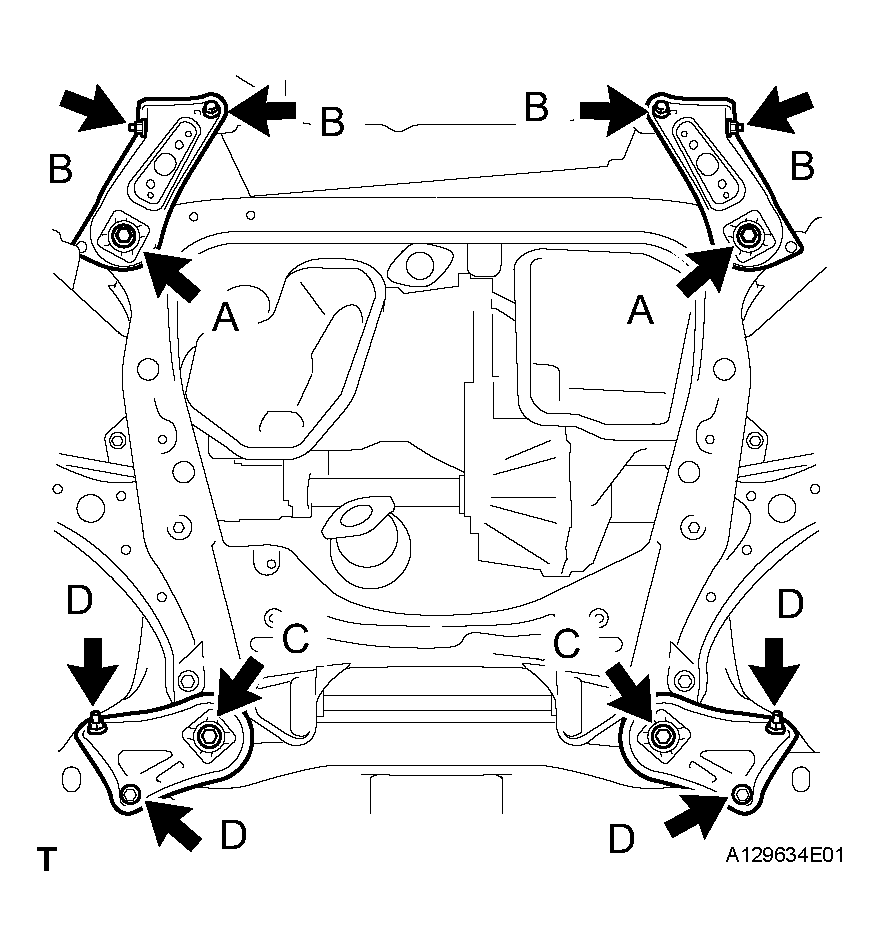

4. Install the front suspension member brace rears RH and LH with the 4 bolts and 2 nuts.

   Torque: C

   85 N*m (867 kgf*cm, 63 ft.*lbf)

   D: Go to Next Step

   32 N*m (329 kgf*cm, 24 ft.*lbf)

   Fig 16: Installing Front Suspension Member Brace Rears

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Temporarily install the cooler compressor with the 4 bolts.
2. Install the compressor with the 4 bolts by tightening the bolt in the order shown in Fig 17.

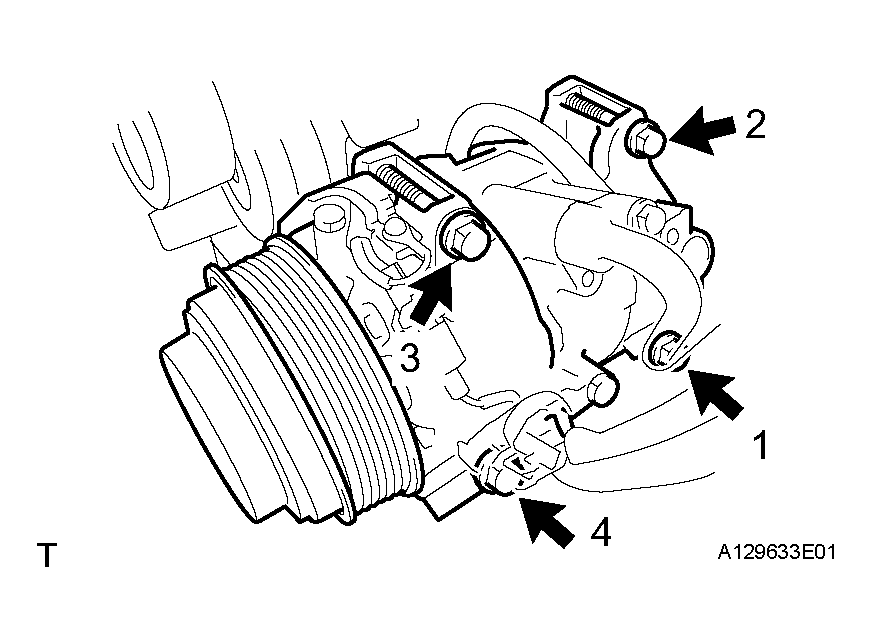

   Fig 17: Installing Compressor With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 25 N*m (250 kgf*cm, 18 ft.*lbf)

3. Install the 2 connector clamps.

1. Align the matchmarks on the intermediate shaft and control valve shaft, and install the bolt.

   Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

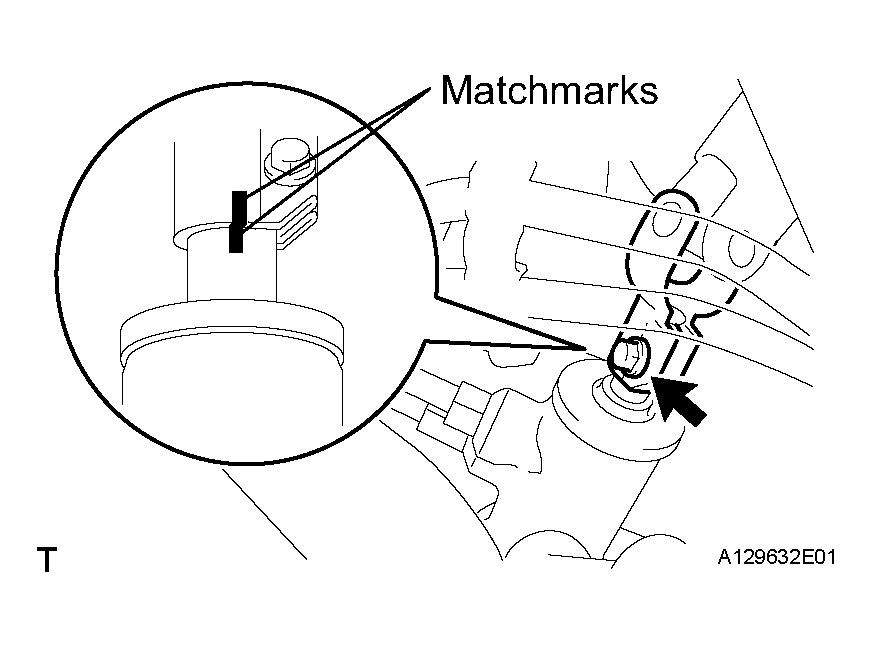

   Fig 18: Aligning Matchmarks On Intermediate Shaft And Control Valve Shaft

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, hold the crankshaft.

   SST 09213-70011 (09213-70020), 09330-00021

2. Using kerosene or gasoline, clean the bolts thoroughly.
3. Apply adhesive to 2 or 3 threads of the bolt end.

   Adhesive: Part No. 08833-00070, THREE BOND 1324 or equivalent

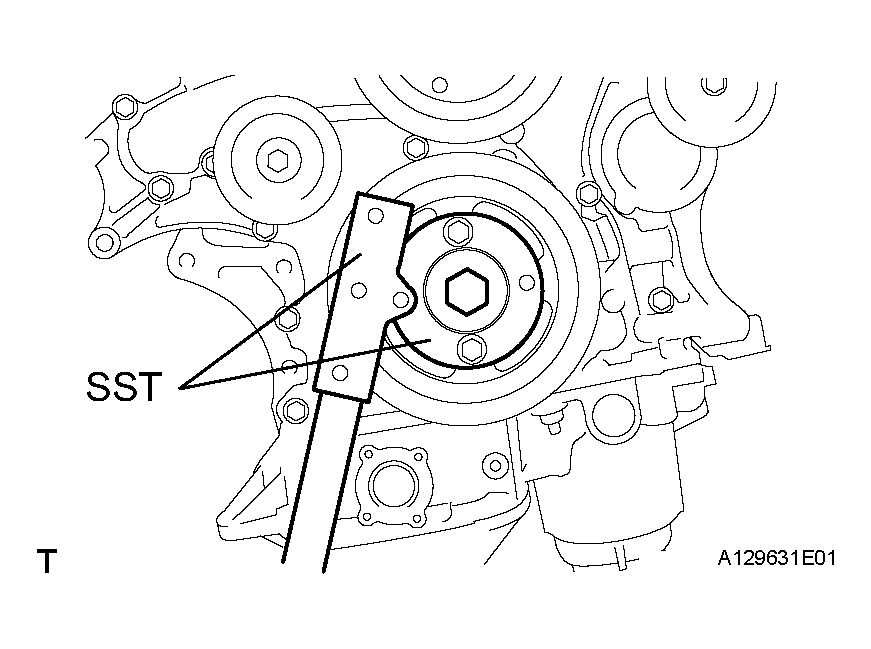

   Fig 19: Holding Crankshaft Using SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the 6 torque converter set bolts.

   Torque: 41 N*m (413 kgf*cm, 30 ft.*lbf)

   NOTE: First tighten the green colored bolt, then the other 5 bolts.
5. Install the flywheel housing under cover with the 2 bolts.

   Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

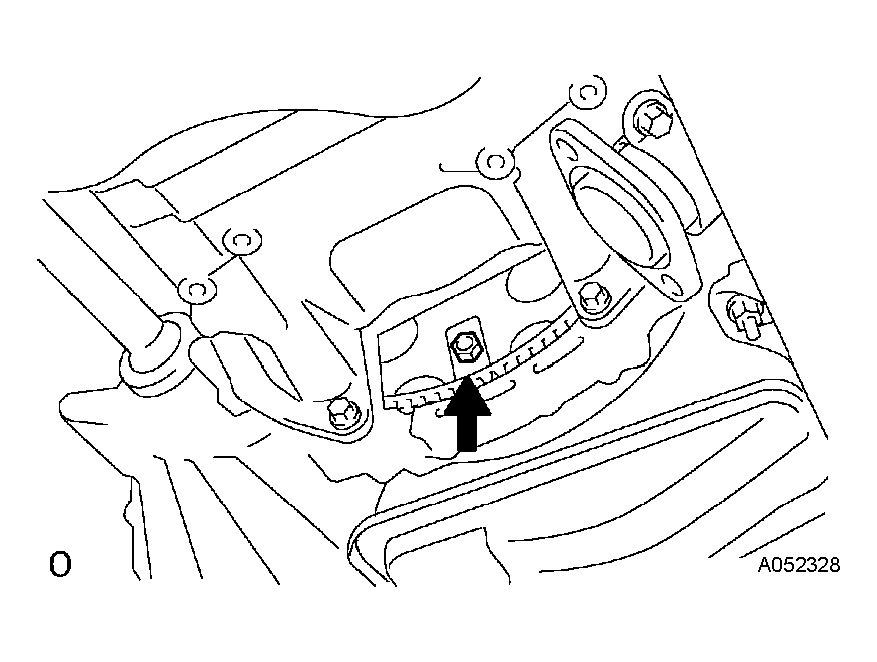

   Fig 20: Installing Torque Converter Set Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the exhaust pipe support bracket No. 1 with the 2 bolts.

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

1. Install the drive shaft to the steering knuckle.

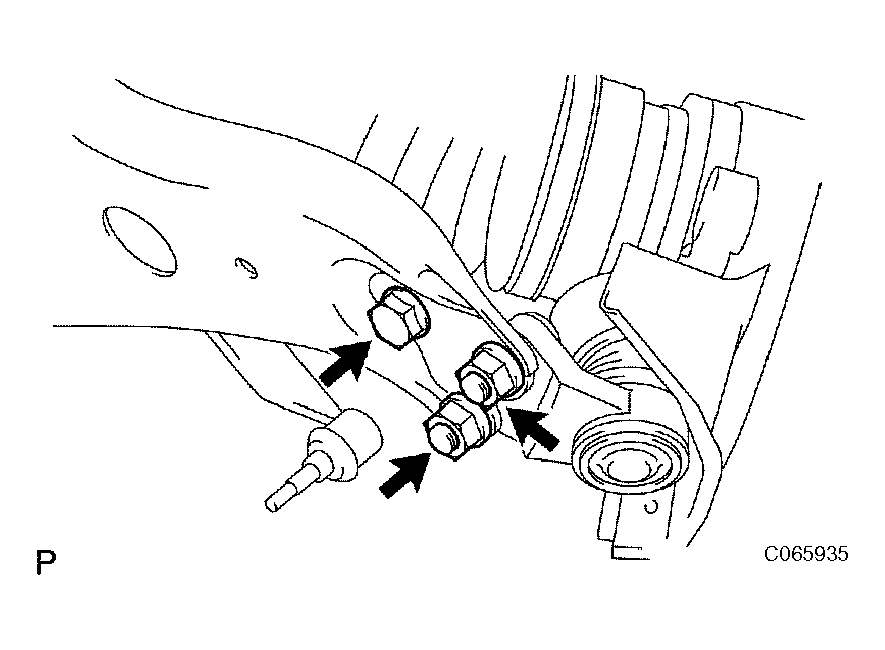

   Fig 21: Identifying Suspension Lower Arm Mounting Bolt And Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the suspension lower arm with the bolt and 2 nuts.

   Torque: 75 N*m (764 kgf*cm, 55 ft.*lbf)

HINT:

Use the same procedures described for the LH side.

1. Connect the tie rod end to the steering knuckle with the castle nut.

   Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

   NOTE:

   • Prevent lubricants from contacting the thread and taper portions.
   • After tightening the castle nut, tighten additional 60° so that a cotter pin can be inserted.
2. Insert a new cotter pin.

HINT:

Use the same procedures described for the LH side.

HINT:

Use the same procedures described for the LH side.

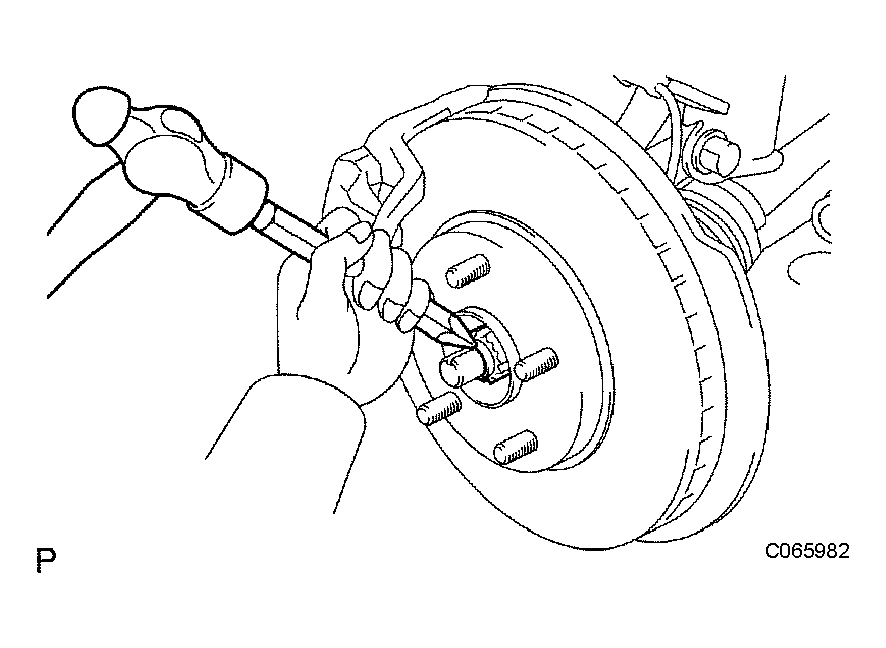

Fig 22: Tapping Hub Nut

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a 30 mm socket wrench, install a new hub nut.

   Torque: 294 N*m (2,998 kgf*cm, 217 ft.*lbf)

2. Using a chisel and hammer, tap the hub nut.

HINT:

Use the same procedures described for the LH side.

1. Using a 6 mm socket hexagon wrench, hold the ball stud and install the nut.

   Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

HINT:

Use the same procedures described for the LH side.

1. Connect the oil reservoir to pump hose No. 1.

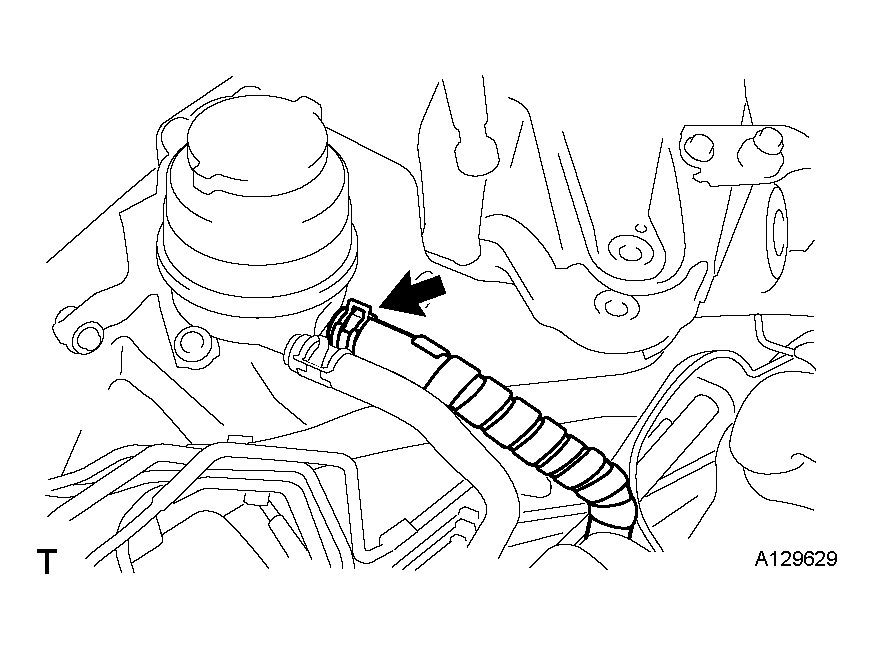

   Fig 23: Connecting Oil Reservoir To Pump Hose

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

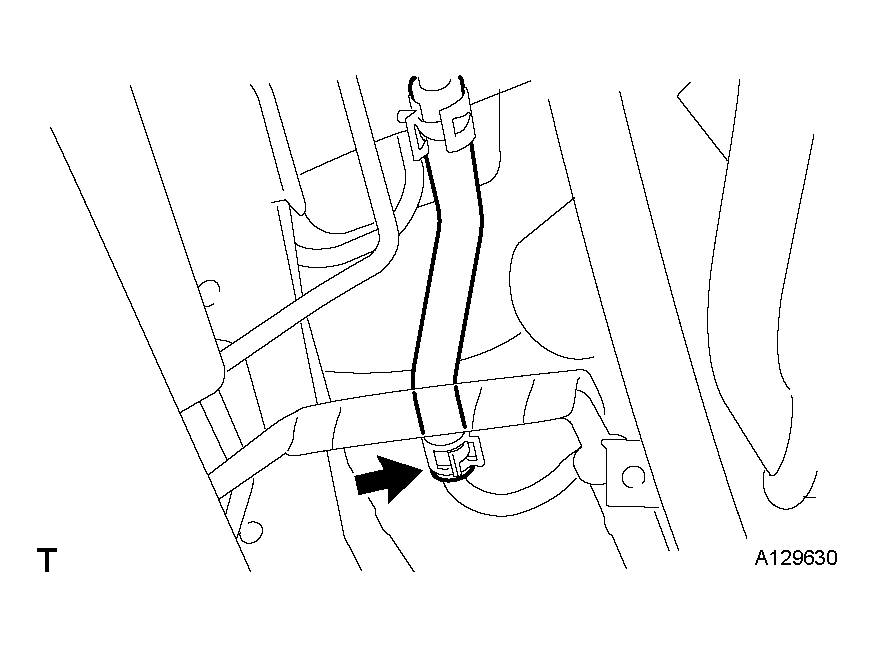

1. Connect the steering gear outlet return tube.
   Fig 24: Connecting Steering Gear Outlet Return Tube

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

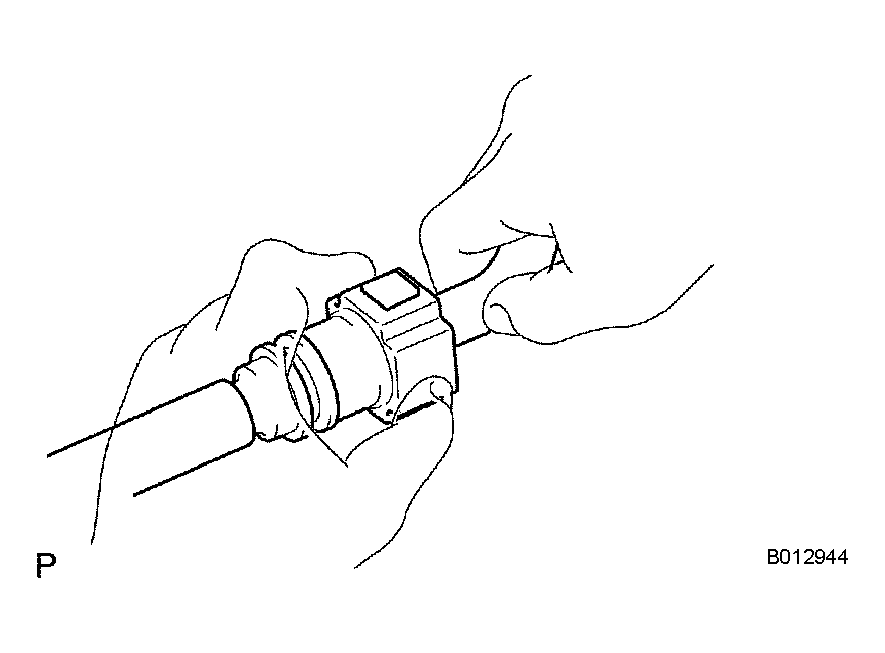

Fig 25: Connecting Fuel Tube Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Push in the fuel tube connector to the fuel pipe until connector makes a "click" sound.
   NOTE:

   • Check for damage or contamination on the connected part of the pipe.
   • Check if the pipe and the connector are securely connected by trying to pull them apart.
2. Install the fuel pipe clamp No. 1.

1. Install the nut and connect the wire harness to the engine room J/B.

   Torque: 8.4 N*m (85 kgf*cm, 74 in.*lbf)

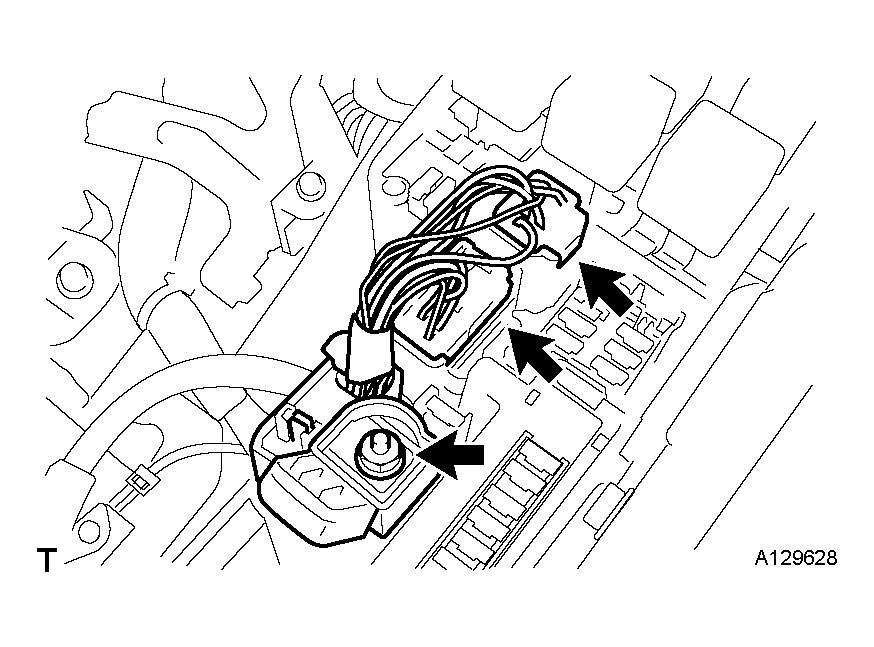

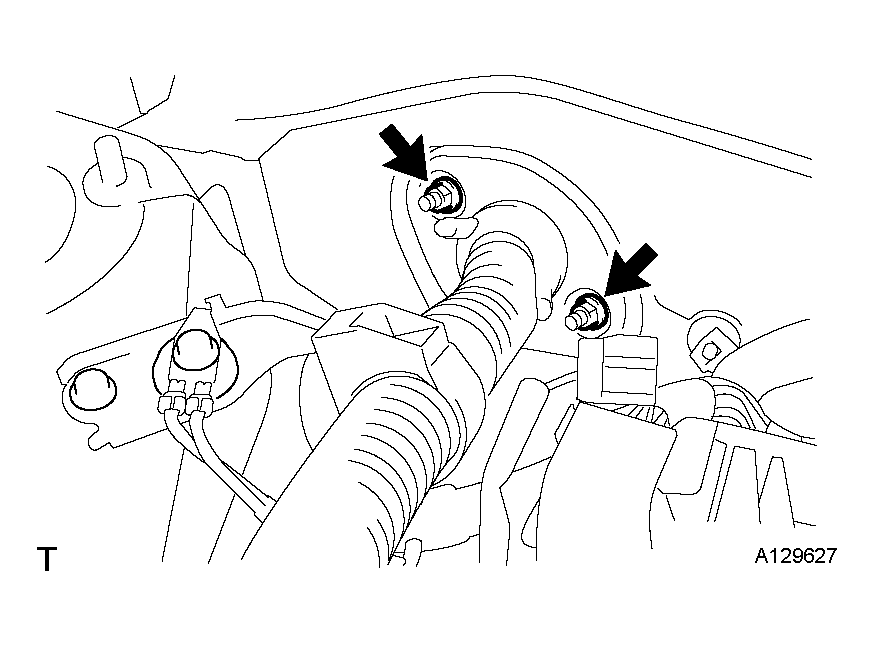

   Fig 26: Connecting Wire Harness To Engine Room J/B

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the engine wire to the body with the 2 nuts.

   Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

1. Install the intake air resonator with the bolt and clip.

   Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

1. Install the air cleaner inlet No. 1 with the bolt.

   Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

1. Install the air cleaner case with the 3 bolts.

   Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

2. Install the air cleaner cap with the hose clamp and 3 clips.
3. Connect the MAF meter connector and clamp.
4. Connect the 3 vacuum hoses and ventilation hose No. 2.

1. Install air cleaner inlet No. 2 with the 2 bolts.

   Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

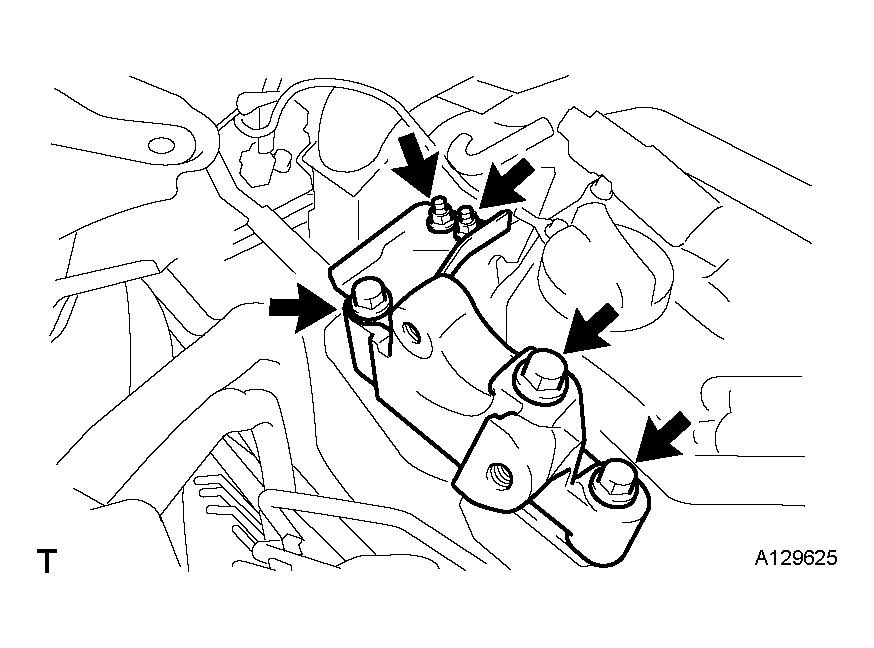

1. Temporarily install the mounting stay No. 2 RH and mounting bracket with the 3 bolts and 2 nuts.
   Fig 29: Installing Mounting Stay RH And Mounting Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 30: Installing Moving Control Rod And Mounting Stay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Temporarily install the moving control rod and mounting stay No. 3 RH with the 3 bolts.
2. Tighten the bolt A.

   Torque: 44 N*m (450 kgf*cm, 32 ft.*lbf)

3. Tightening the bolt B in the order shown in Fig 31.

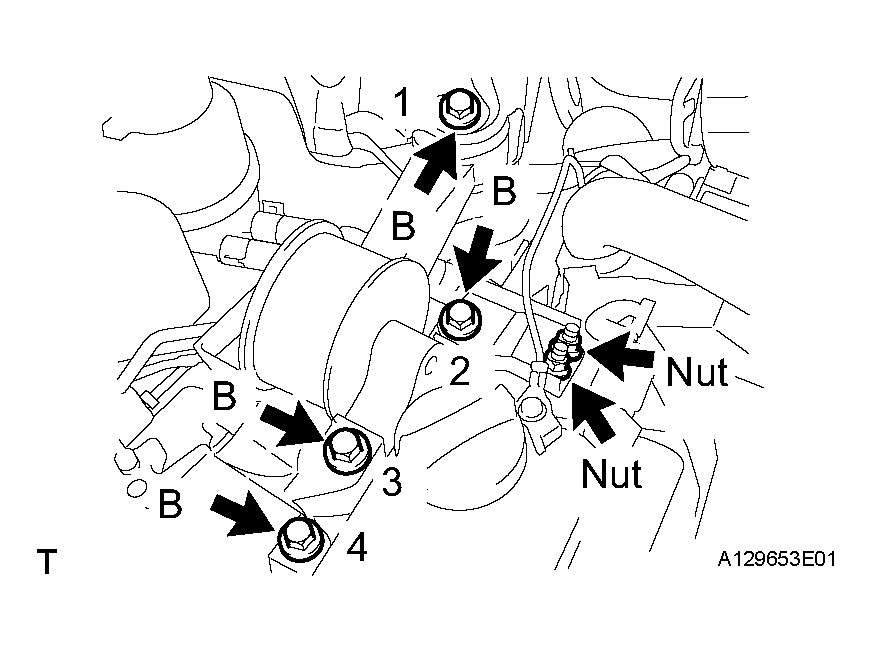

   Fig 31: Tightening Nuts And Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 38 N*m (387 kgf*cm, 28 ft.*lbf)

4. Tighten the 2 nuts.

   Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

HINT:

Install the V-ribbed belt (See INSTALLATION ).

SST 09249-63010

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

HINT:

Adjust the front wheel alignment (See ADJUSTMENT ).

1. Fit the 3 retainers and install the V-bank cover.

1. ABS WITH EBD SYSTEM (See TEST MODE PROCEDURE )
2. ABS WITH EBD & BA & TRAC & VSC SYSTEM (See TEST MODE PROCEDURE )

1. Some systems need initialization when disconnecting the cable from the negative battery terminal.
