Wiper and Washer without INT Time SW: Notes

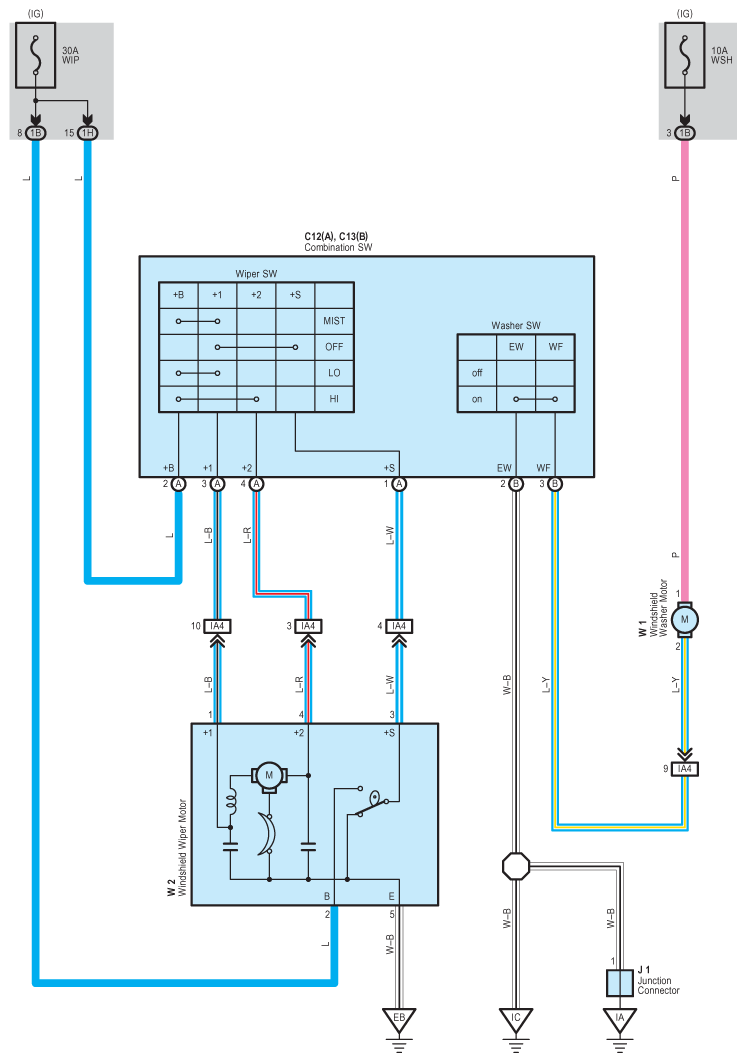

Fig 1: Wiper And Washer System Wiring Diagram (Without INT Time SW)

G08788589

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
