Wiper and Washer with INT Time SW: Notes

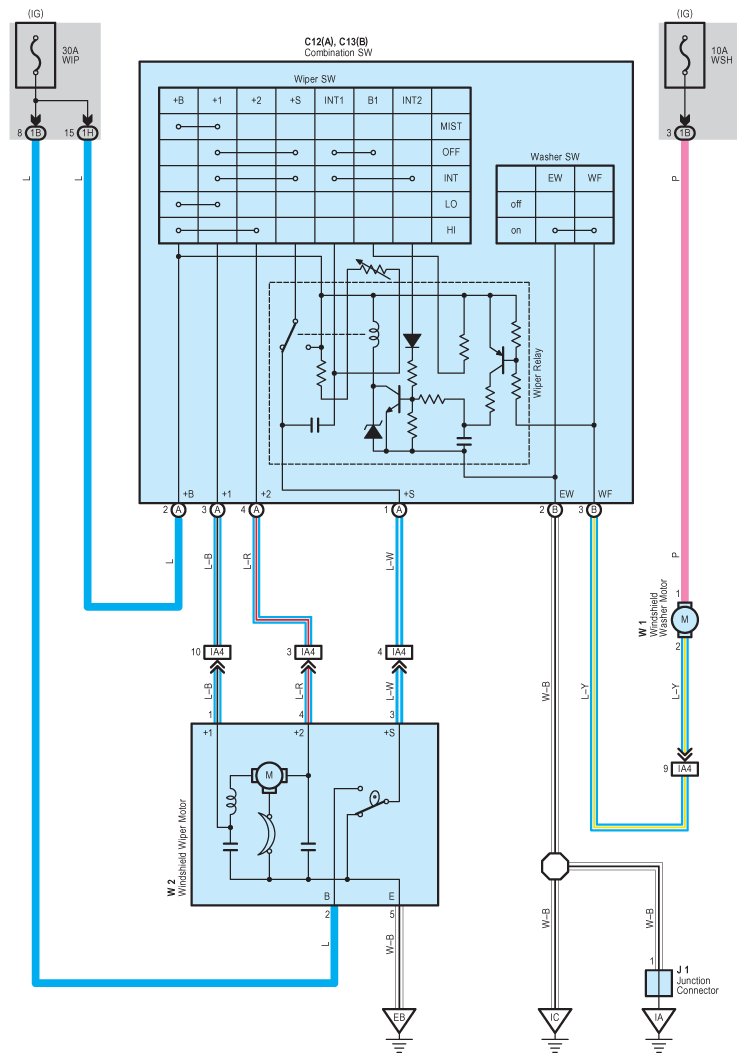

Fig 1: Wiper And Washer System Wiring Diagram (With INT Time SW)

G08788588

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
