Power Outlet for 115V: Notes

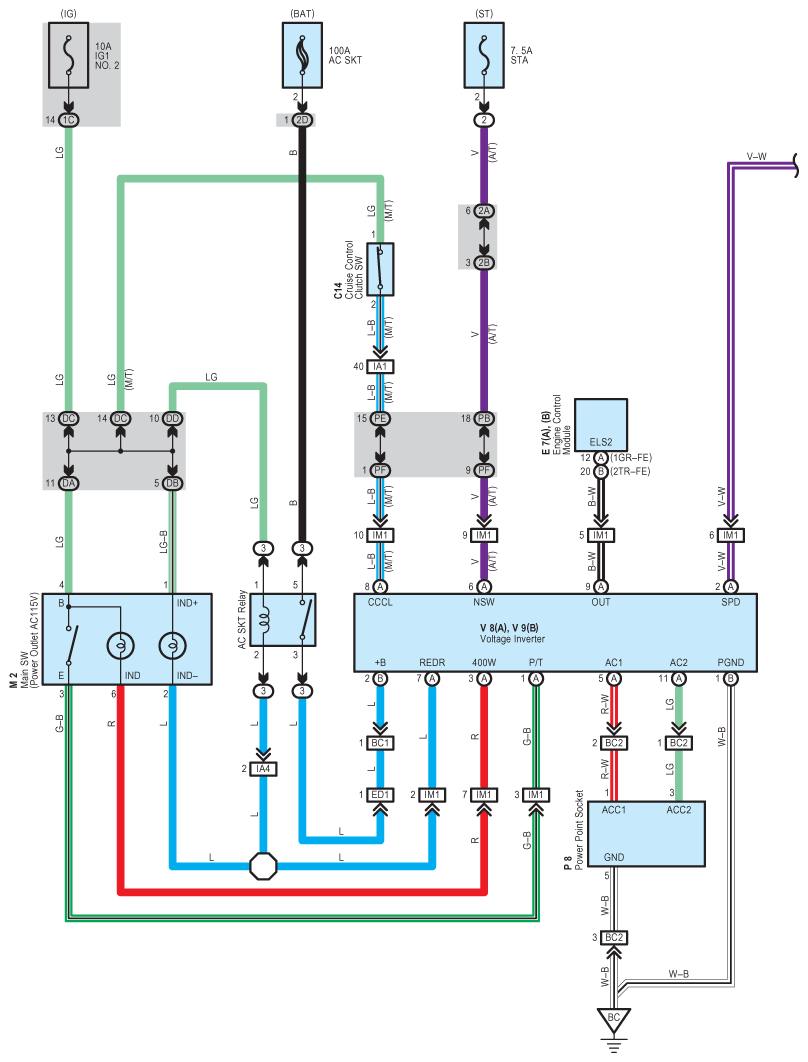

Fig 1: Power Outlet For 115V Wiring Diagram (1 Of 2)
G08788597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Outlet For 115V Wiring Diagram (2 Of 2)
G08788598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
