ECT and A/T Indicator for 2TR-FE: Notes

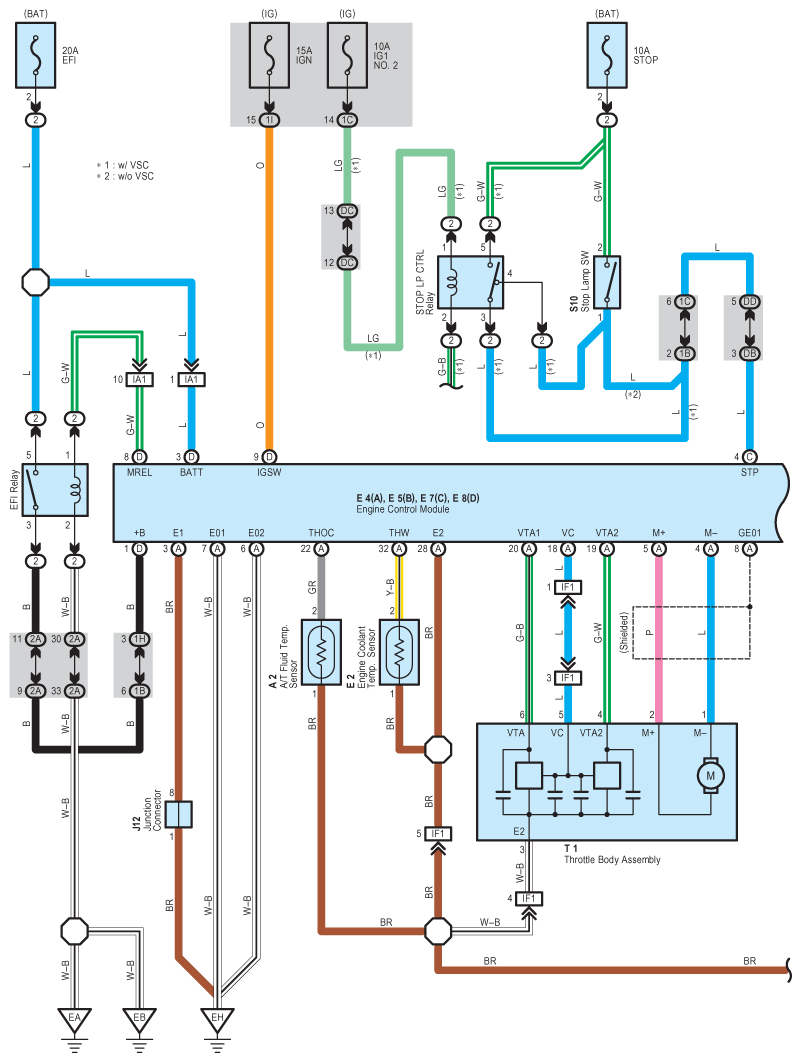

Fig 1: ECT And A/T Indicator System Wiring Diagram (2TR-FE; 1 Of 4)
G08788546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

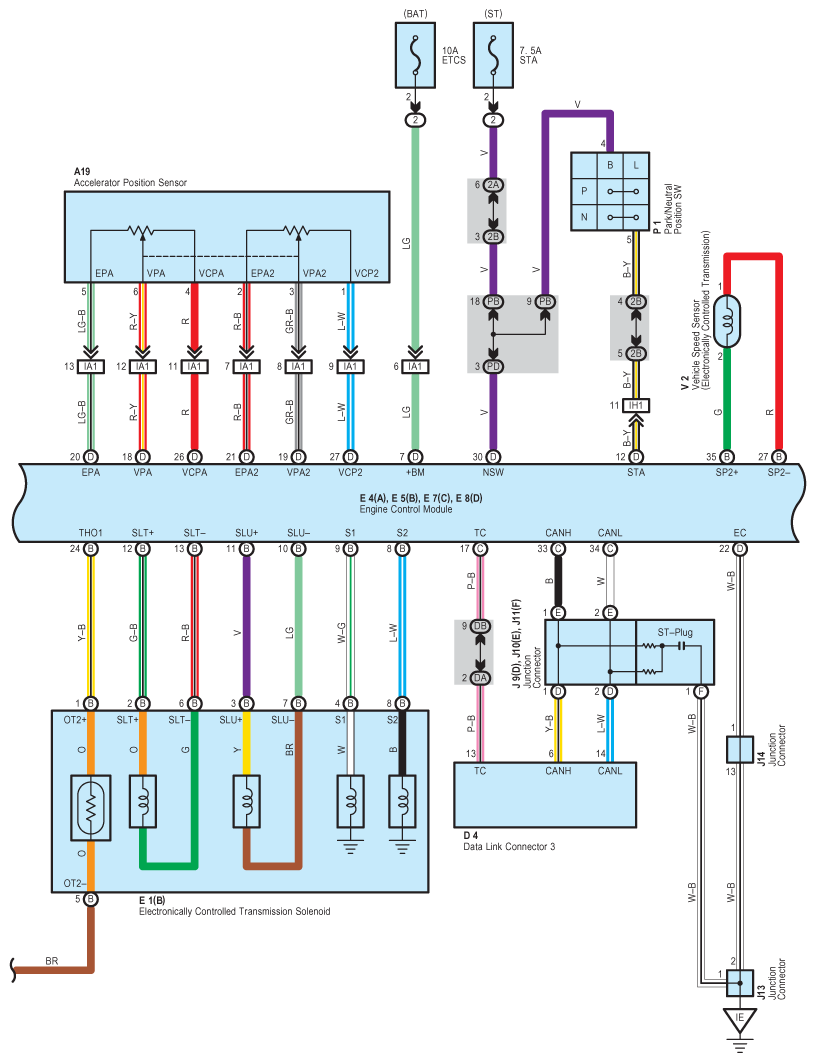

Fig 2: ECT And A/T Indicator System Wiring Diagram (2TR-FE; 2 Of 4)
G08788547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

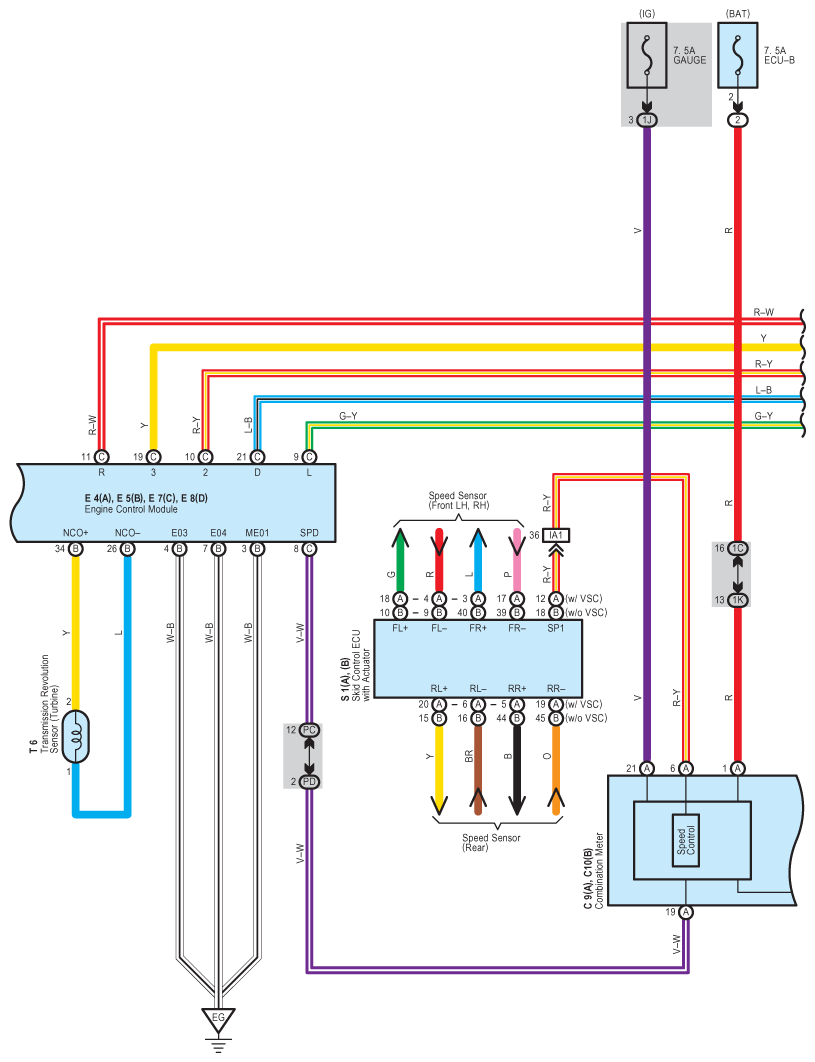

Fig 3: ECT And A/T Indicator System Wiring Diagram (2TR-FE; 3 Of 4)
G08788548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

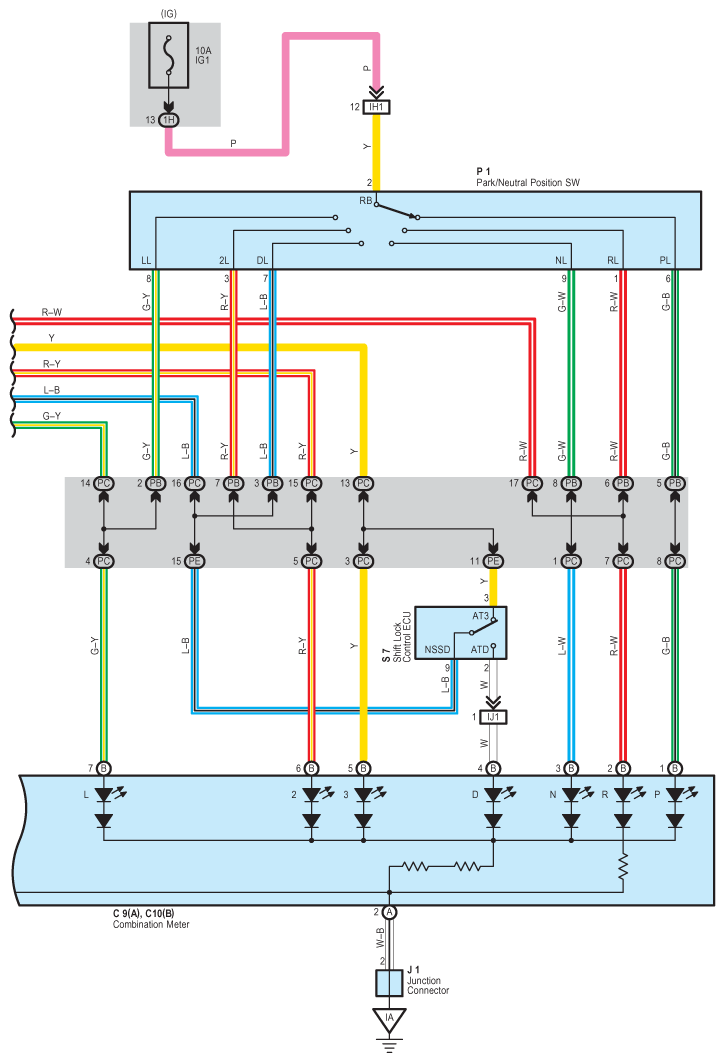

Fig 4: ECT And A/T Indicator System Wiring Diagram (2TR-FE; 4 Of 4)
G08788549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
