Cigarette Lighter and Power Outlet for 12V: Notes

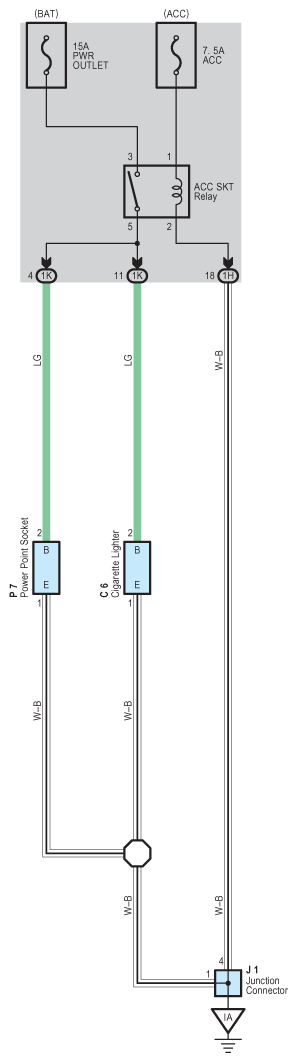

Fig 1: Cigarette Lighter And Power Outlet For 12V Wiring Diagram

G08788599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
