Rear Coil Spring: Components

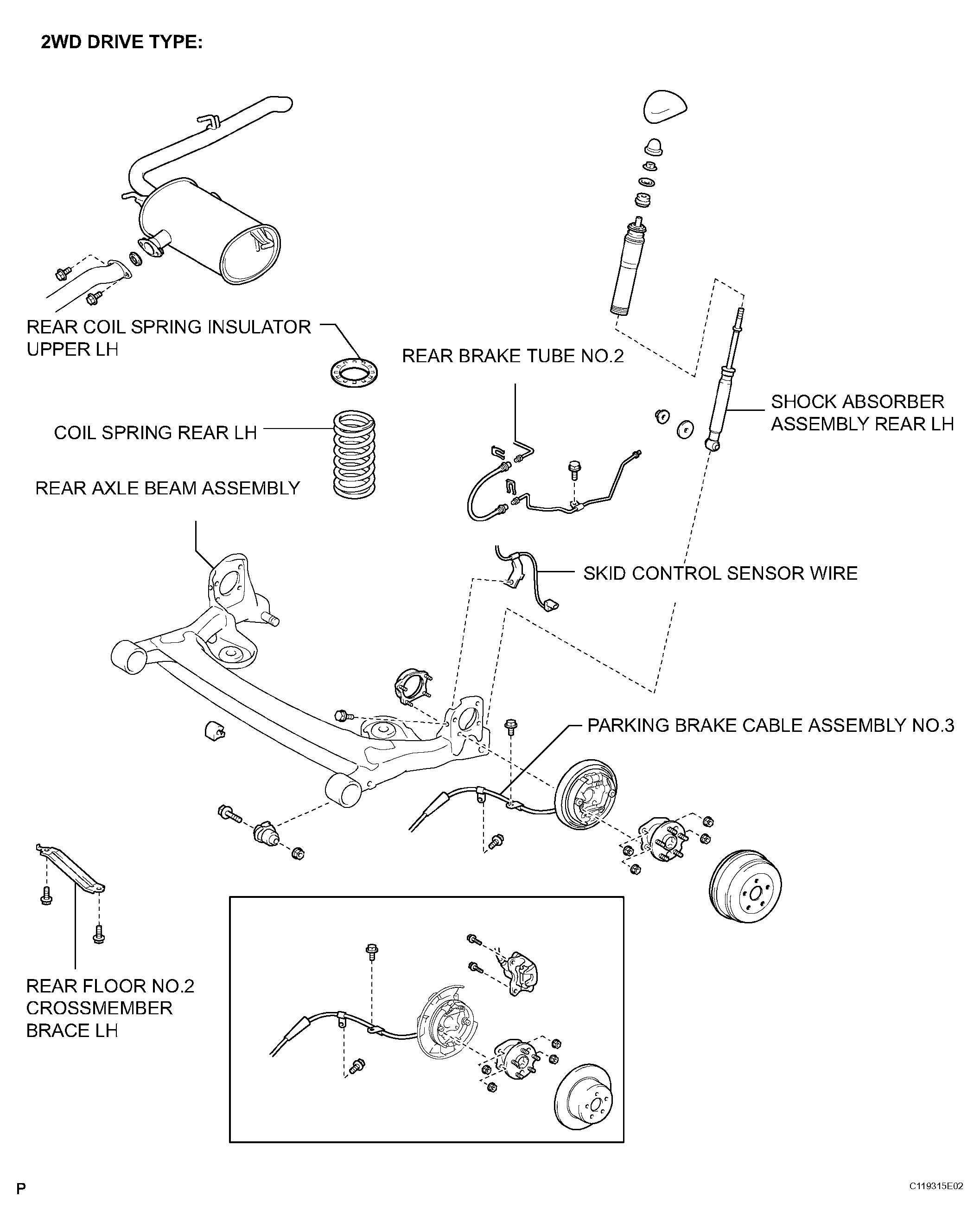

Fig 1: Identifying Rear Coil Spring Components (1 Of 3)
G04498043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

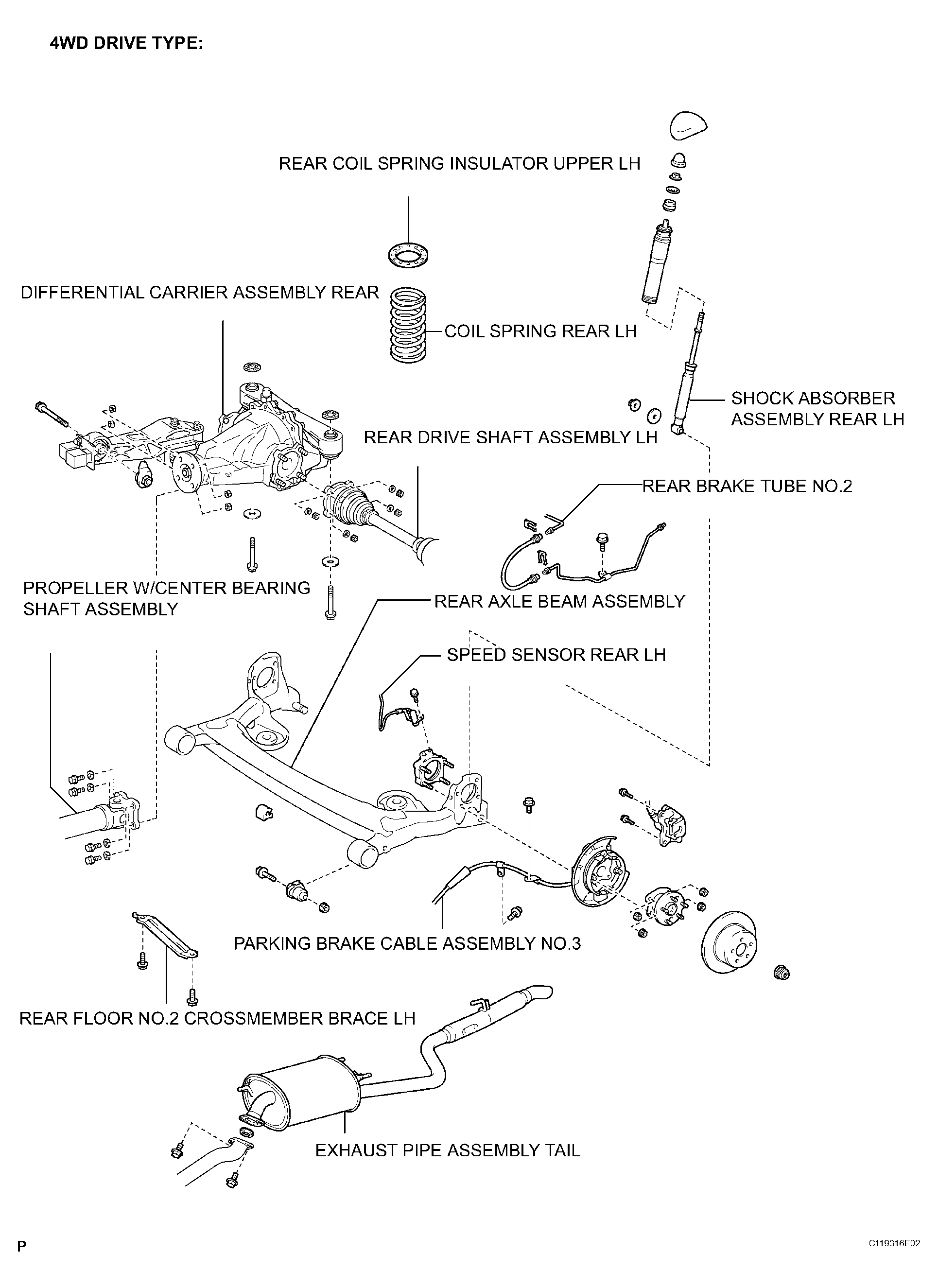

Fig 2: Identifying Rear Coil Spring Components (2 Of 3)
G04498044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Rear Coil Spring Components (3 Of 3)
G04498045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
