Fuel Pump: Components

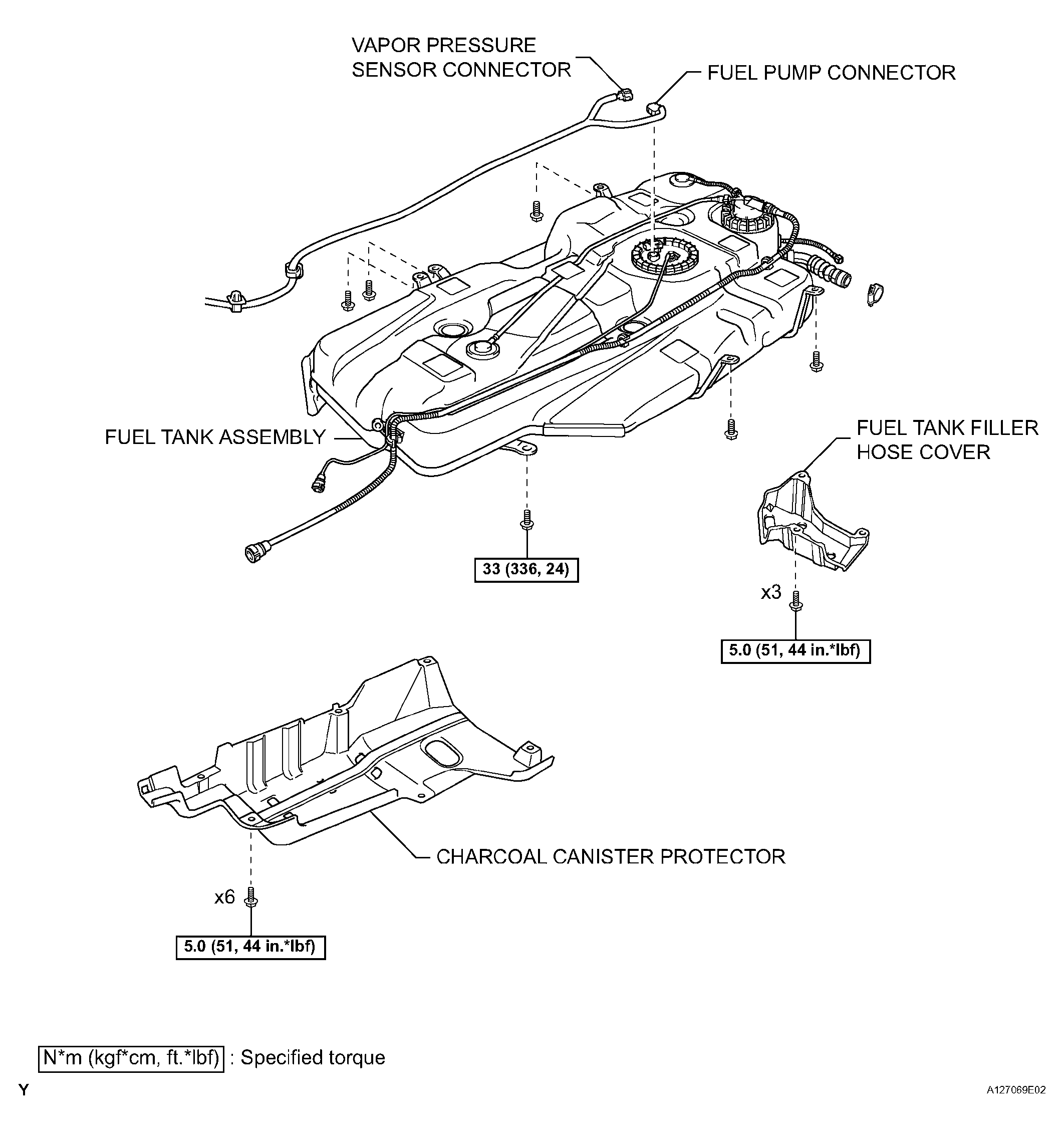

Fig 1: Identifying Fuel Pump Components And Replacements (1 Of 3)
G04494362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

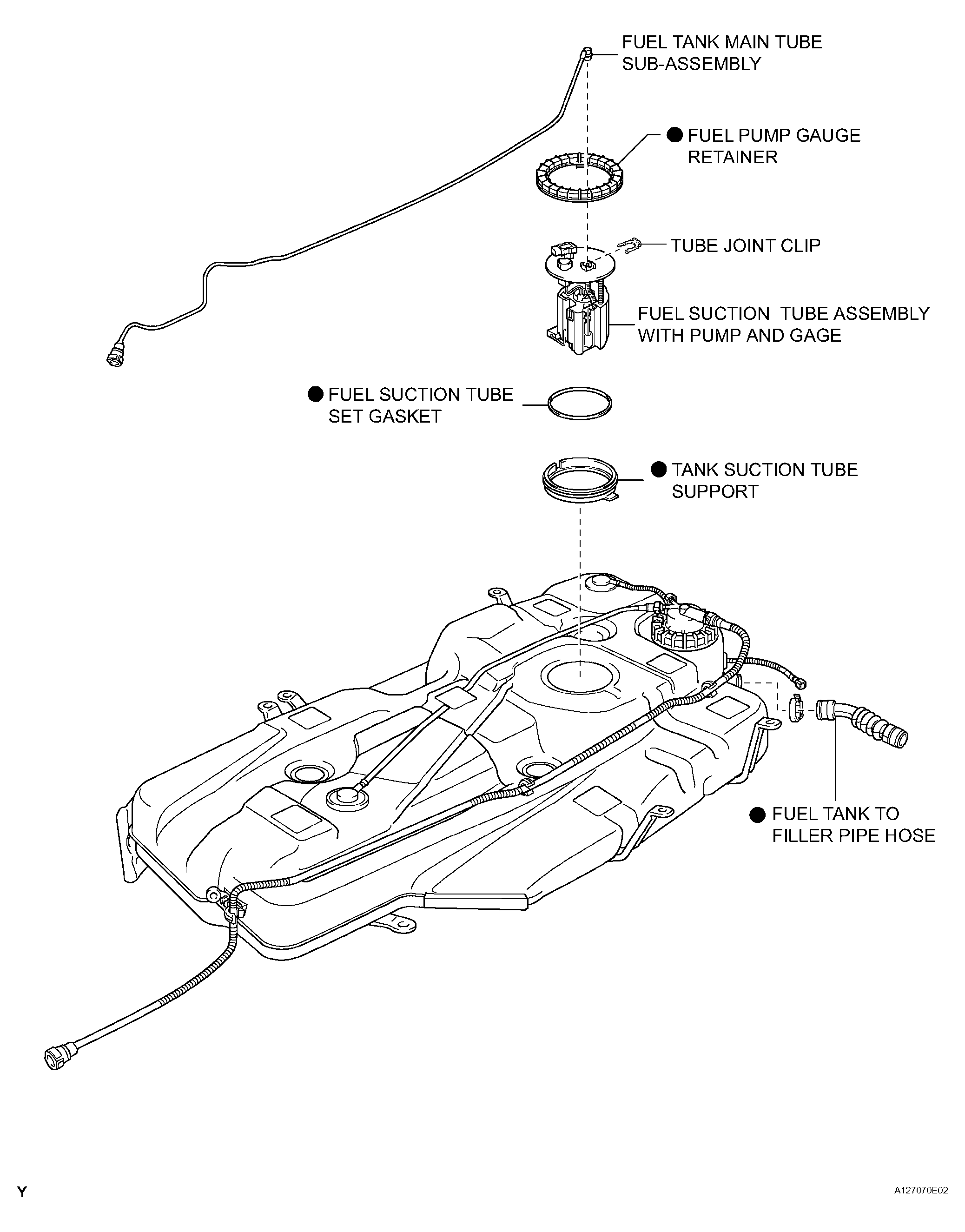

Fig 2: Identifying Fuel Pump Components And Replacements (2 Of 3)
G04494363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

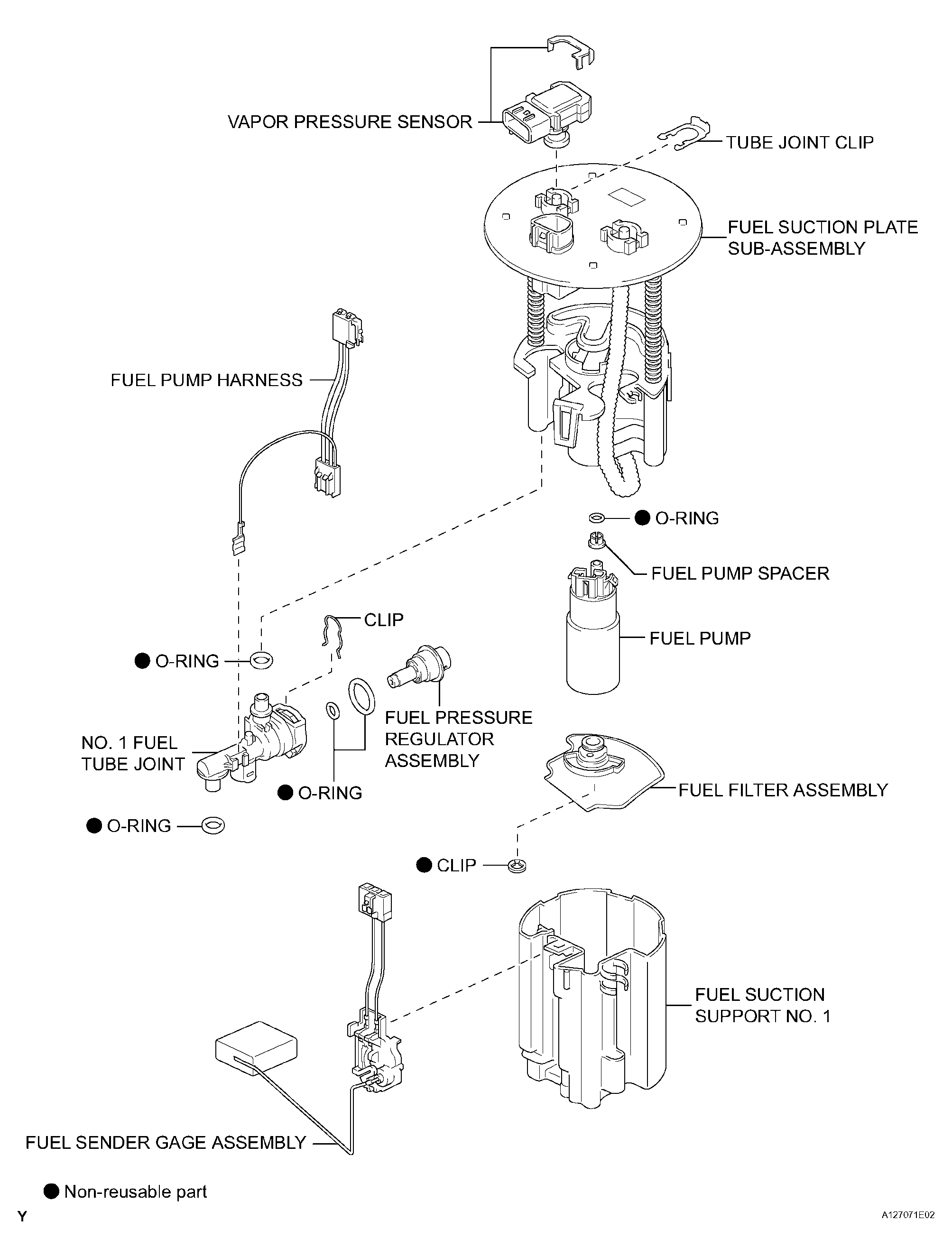

Fig 3: Identifying Fuel Pump Components And Replacements (3 Of 3)
G04494364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
