EVAP System: Wiring Diagram

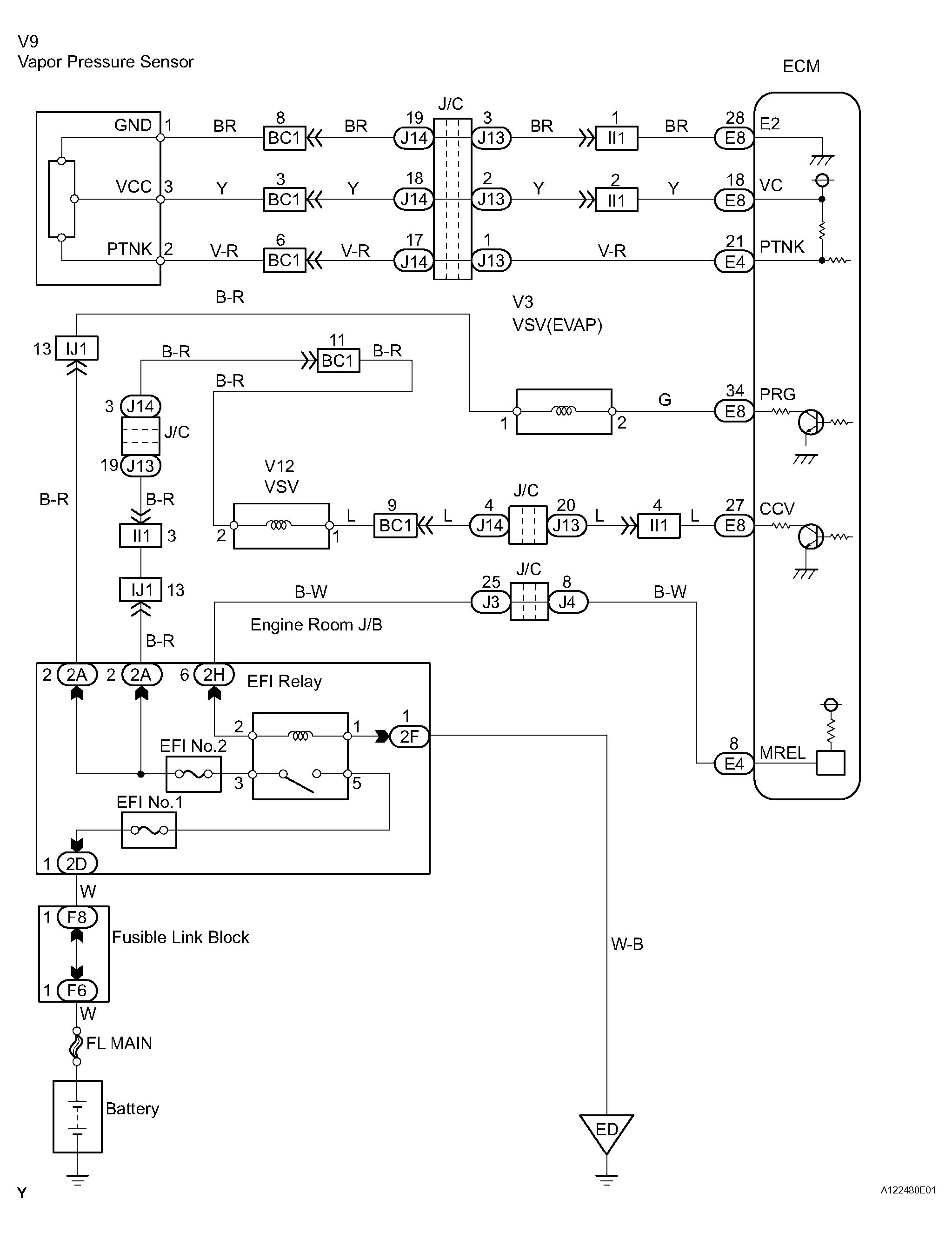

Fig 1: Vapor Pressure Sensor - Wiring Diagram
G04493748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
