Power Rear Quarter Window: Notes

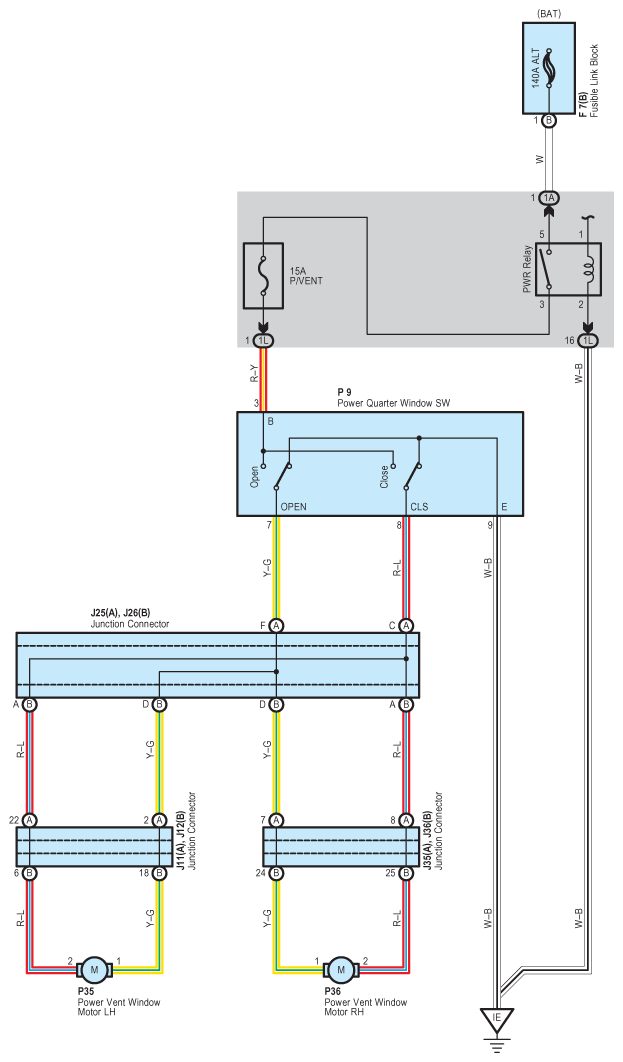

Fig 1: Power Rear Quarter Window System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
