Moon Roof: Notes

Fig 1: Moon Roof System Wiring Diagram (1 Of 2)
G08796125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

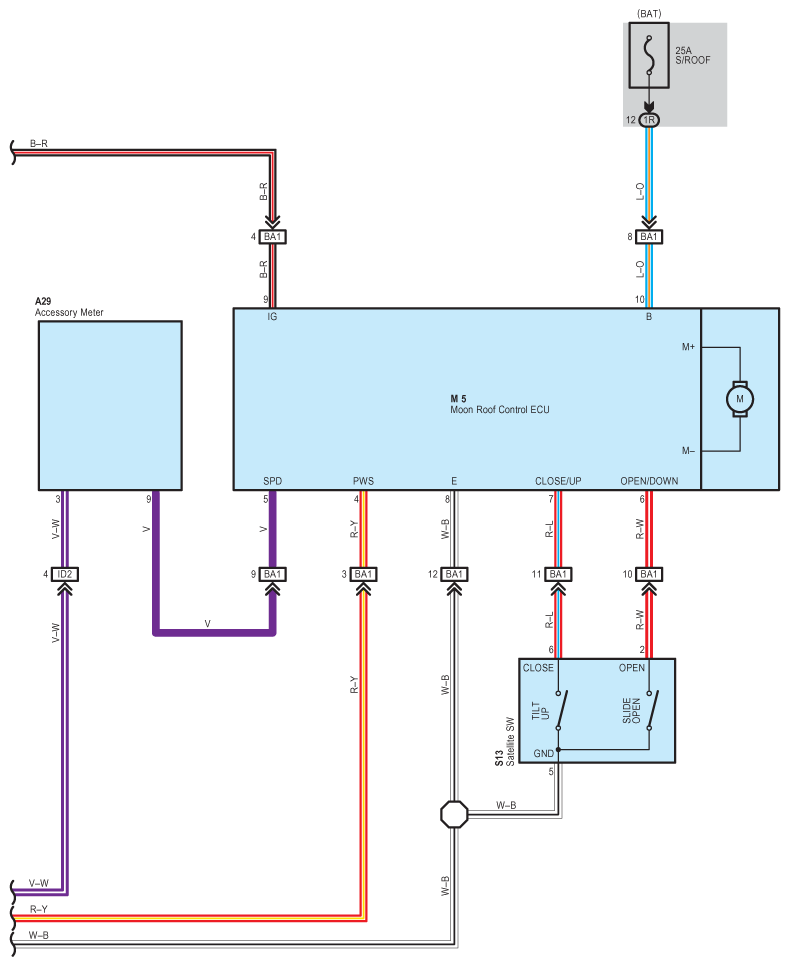

Fig 2: Moon Roof System Wiring Diagram (2 Of 2)
G08796126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
