Headlight Beam Level Control: Notes

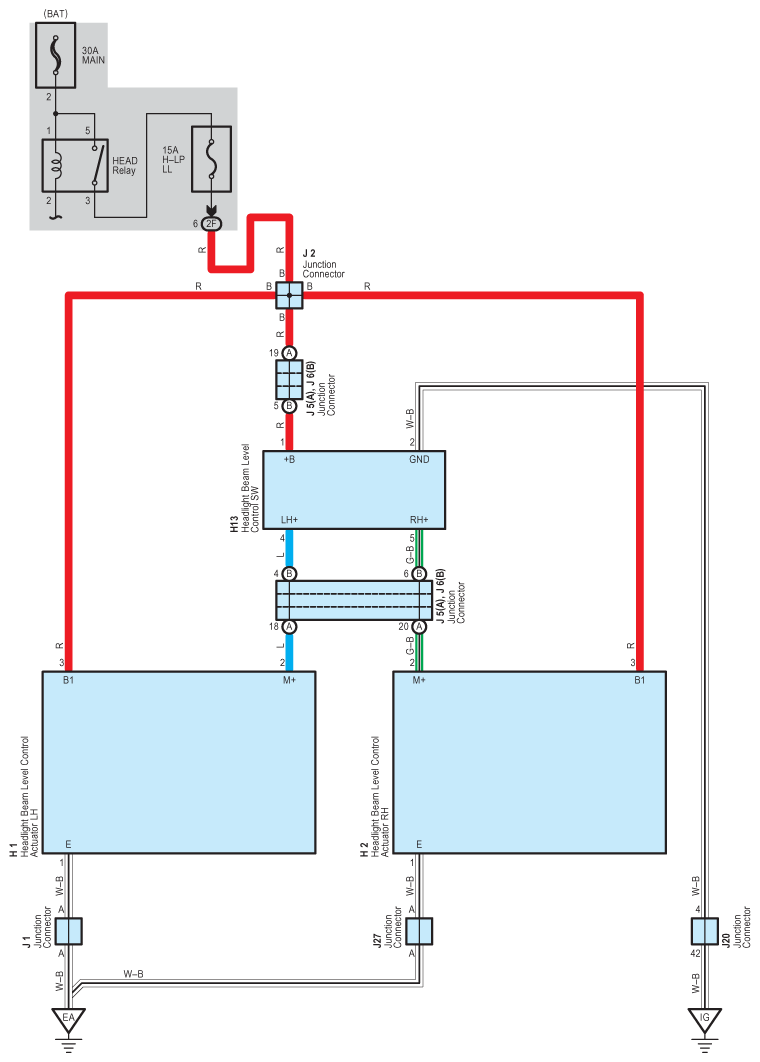

Fig 1: Headlight Beam Level Control System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
