Front Window Deicer and Rear Window Defogger: Notes

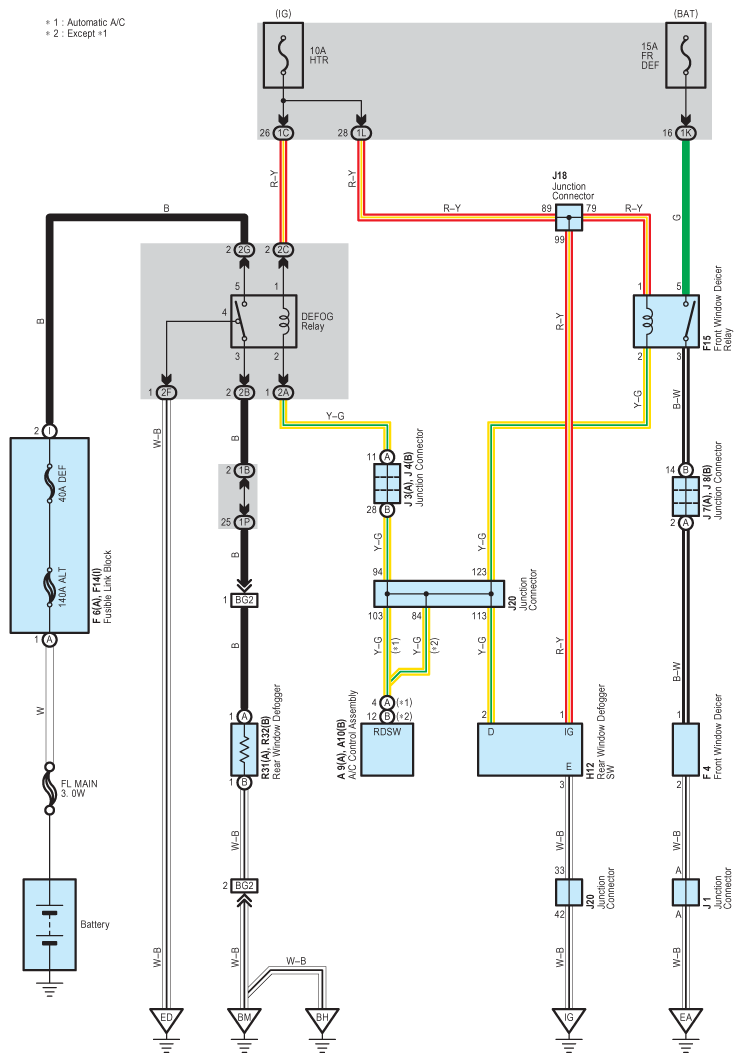

Fig 1: Front Window Deicer And Rear Window Defogger System Wiring Diagram

G08796149

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
