Fog Light: Notes

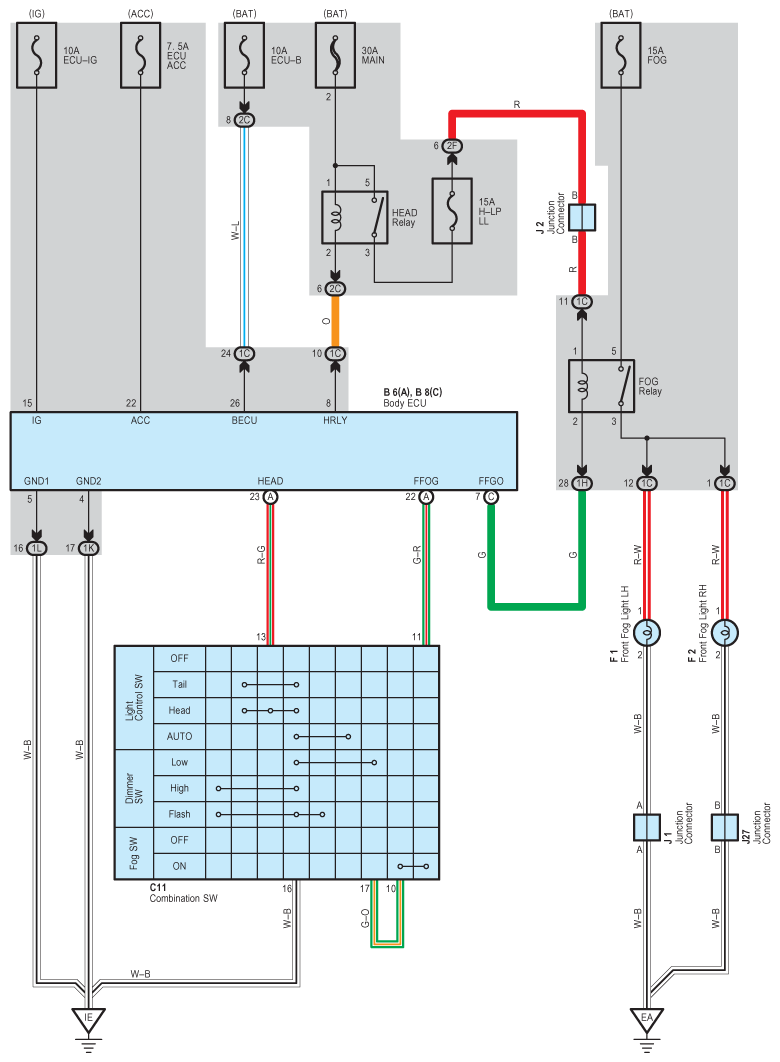

Fig 1: Fog Light System Wiring Diagram
G08796029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
