Dynamic Laser Cruise Control: Notes

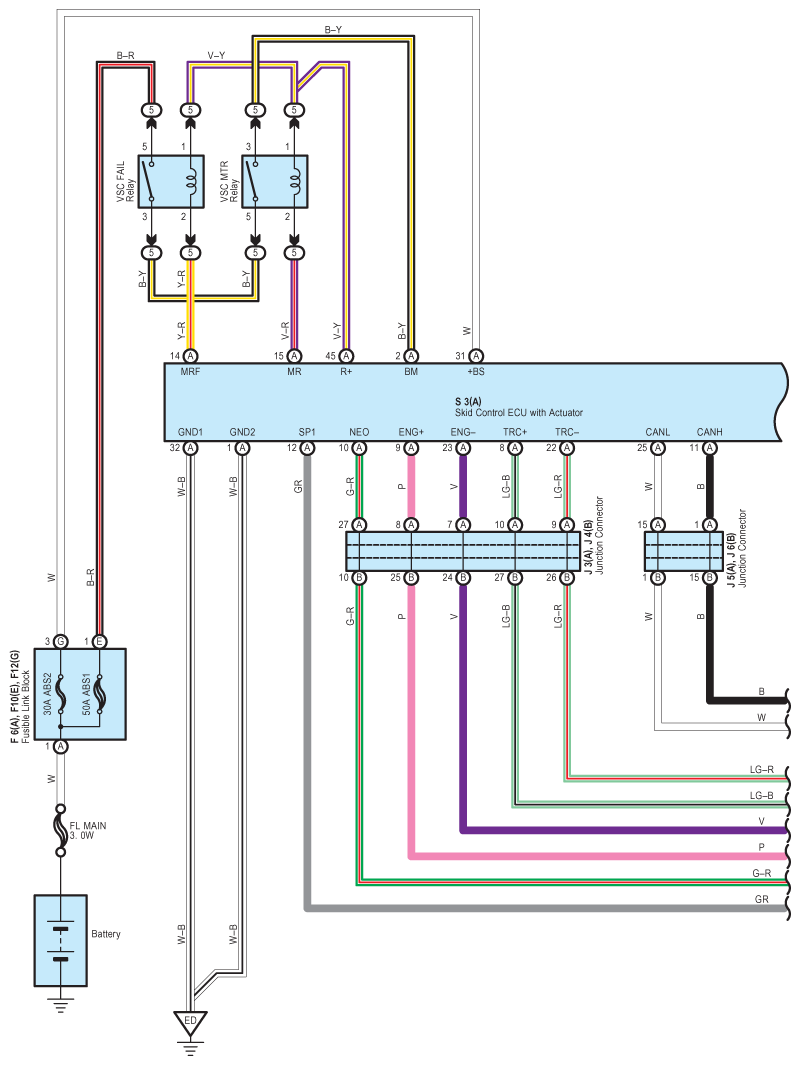

Fig 1: Dynamic Laser Cruise Control System Wiring Diagram (1 Of 9)
G08796100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

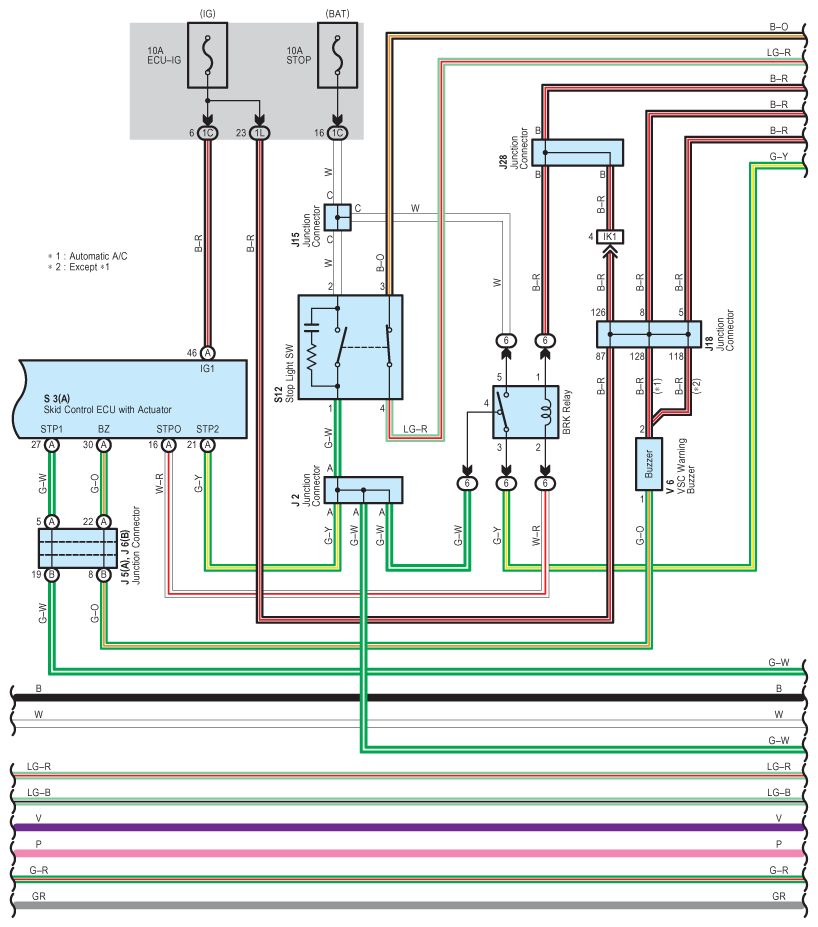

Fig 2: Dynamic Laser Cruise Control System Wiring Diagram (2 Of 9)
G08796101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

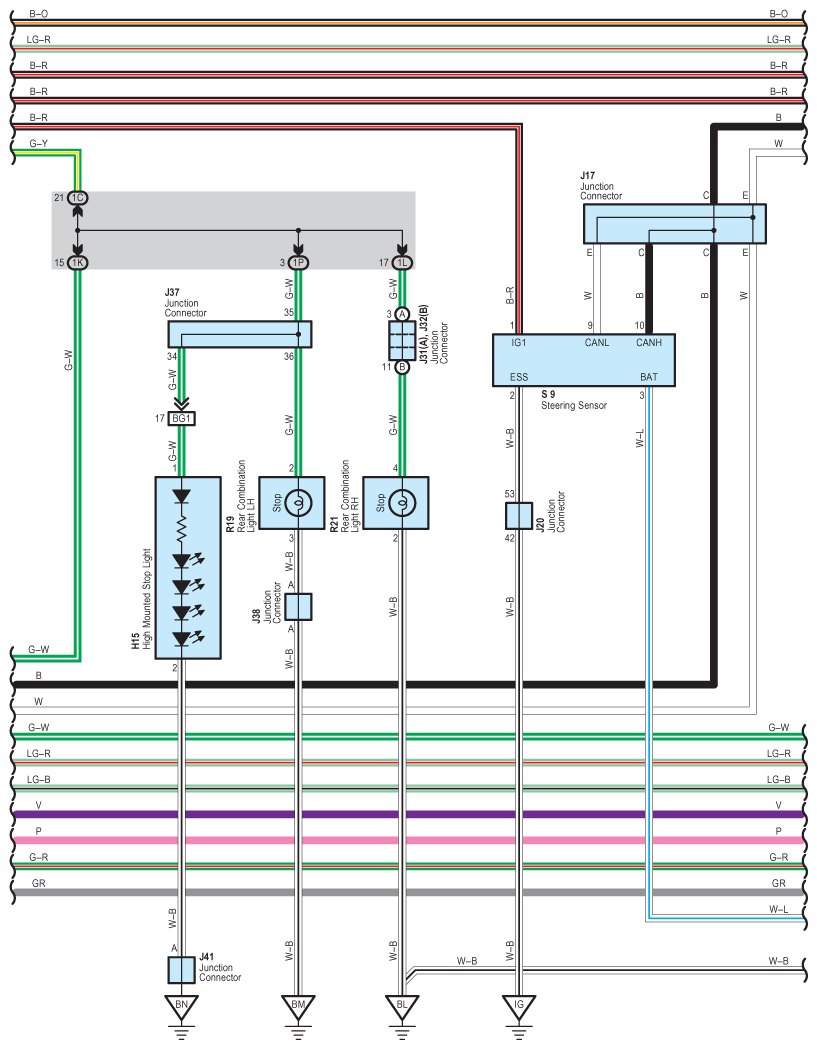

Fig 3: Dynamic Laser Cruise Control System Wiring Diagram (3 Of 9)
G08796102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

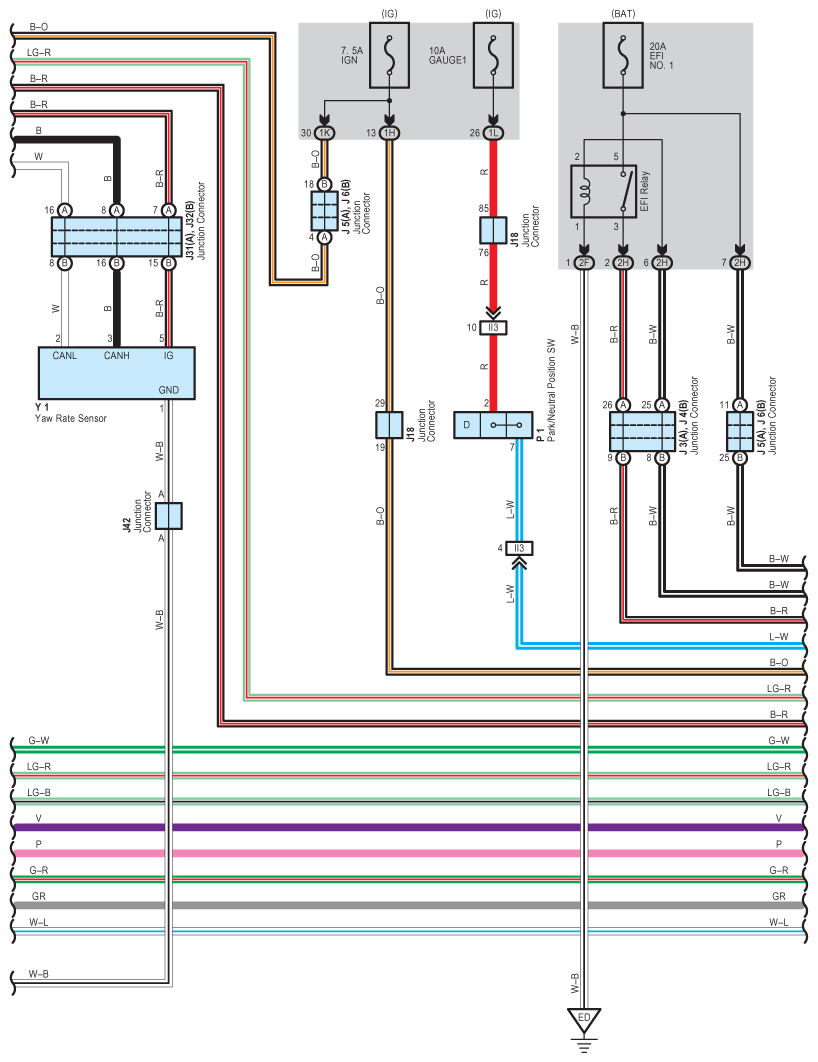

Fig 4: Dynamic Laser Cruise Control System Wiring Diagram (4 Of 9)
G08796103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

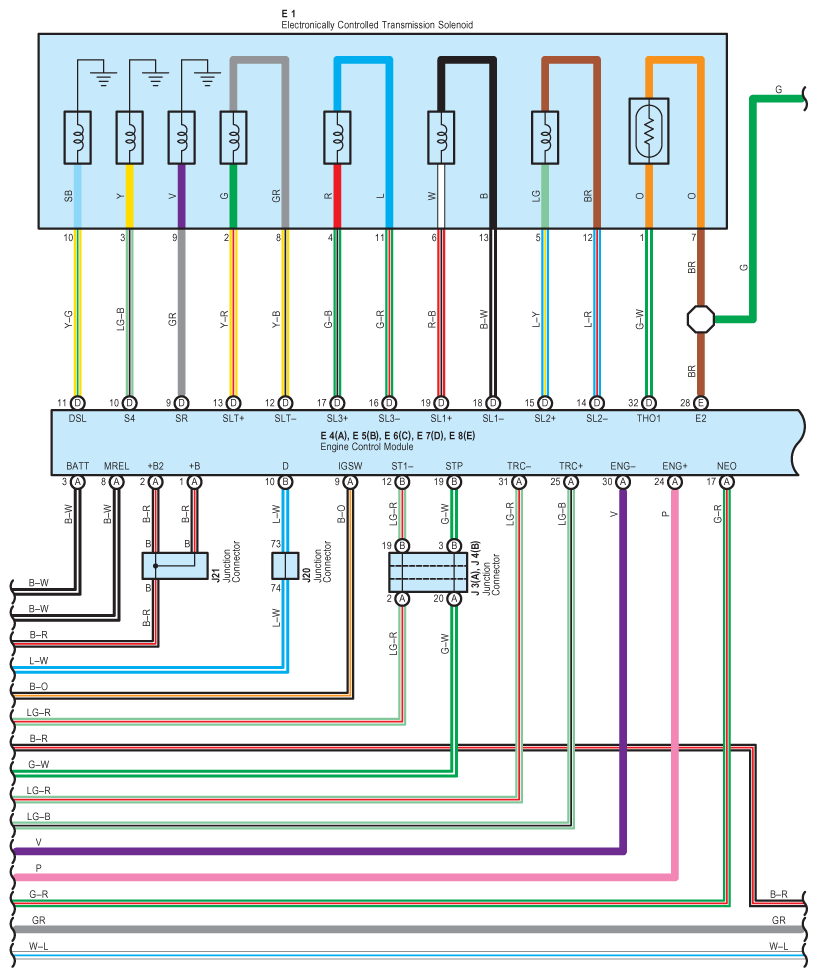

Fig 5: Dynamic Laser Cruise Control System Wiring Diagram (5 Of 9)
G08796104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

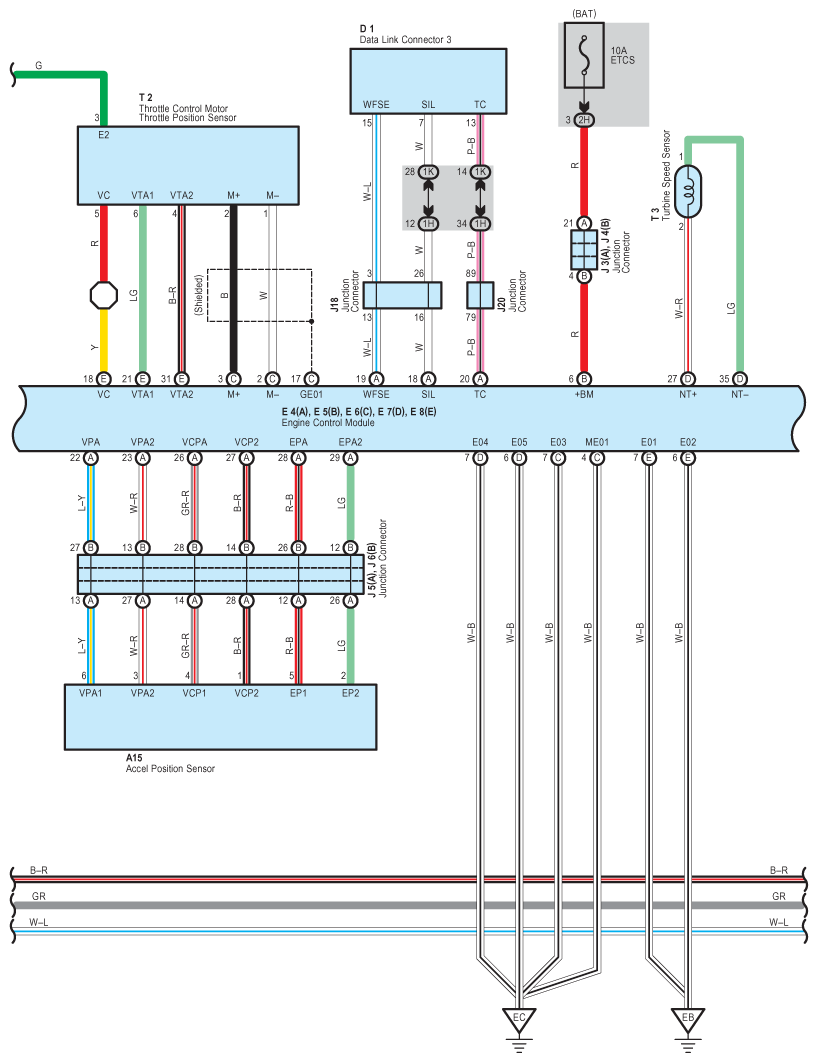

Fig 6: Dynamic Laser Cruise Control System Wiring Diagram (6 Of 9)
G08796105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

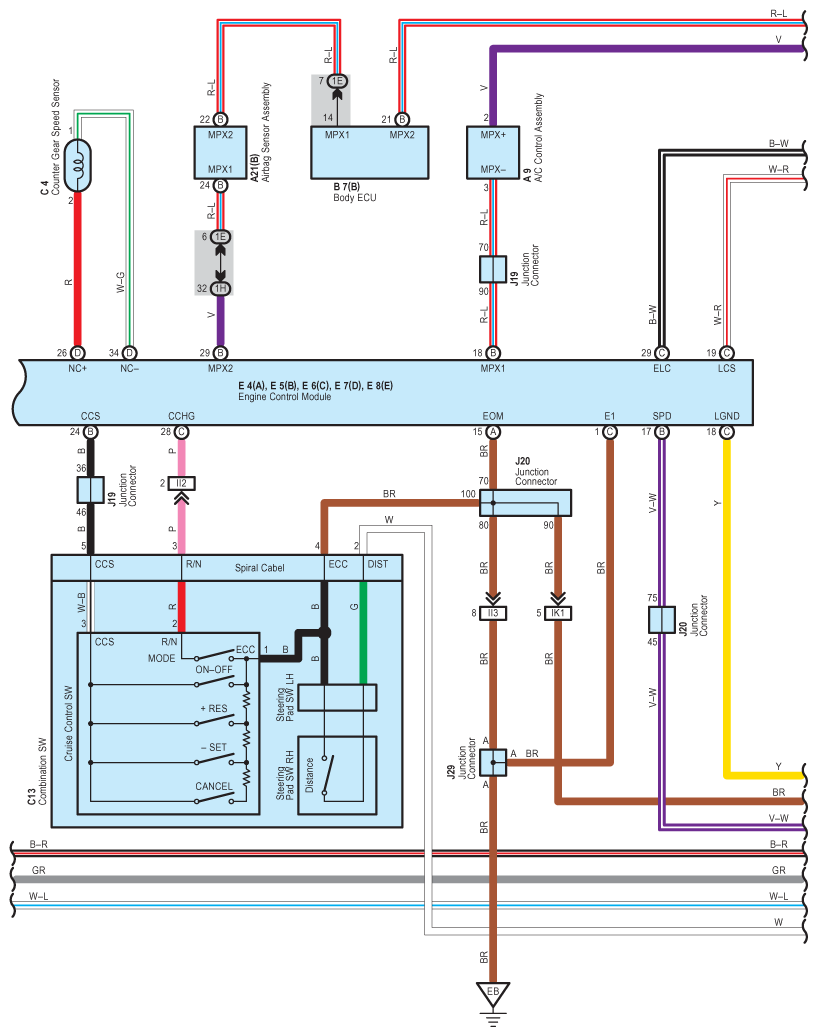

Fig 7: Dynamic Laser Cruise Control System Wiring Diagram (7 Of 9)
G08796106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

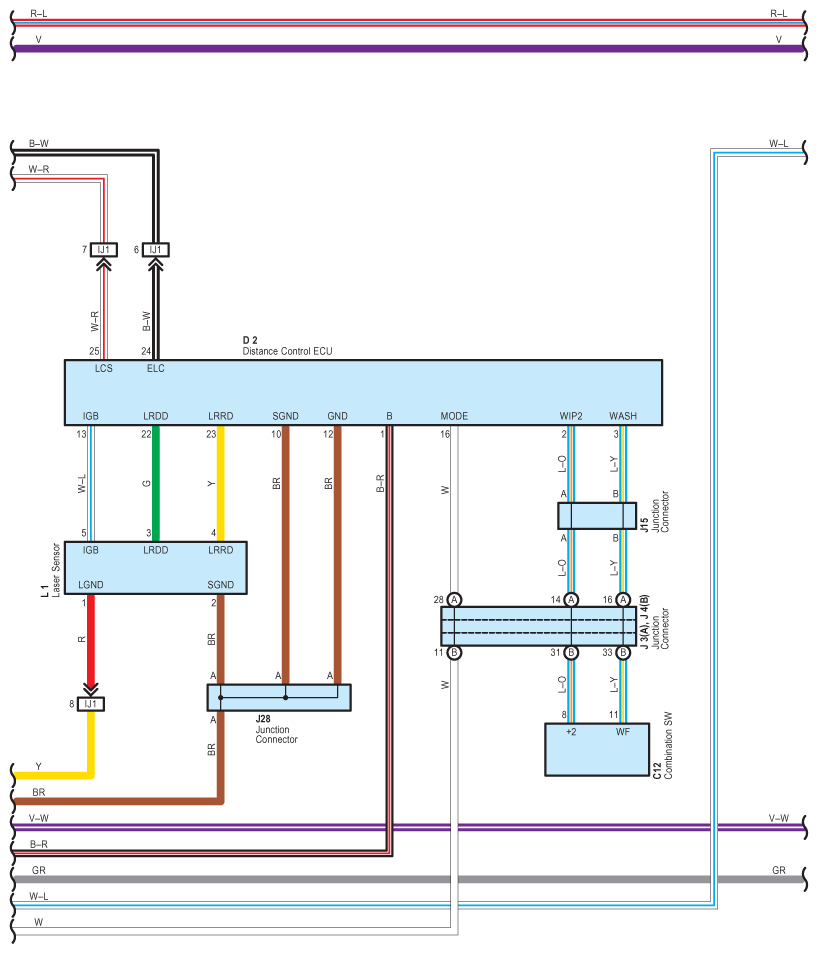

Fig 8: Dynamic Laser Cruise Control System Wiring Diagram (8 Of 9)
G08796107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

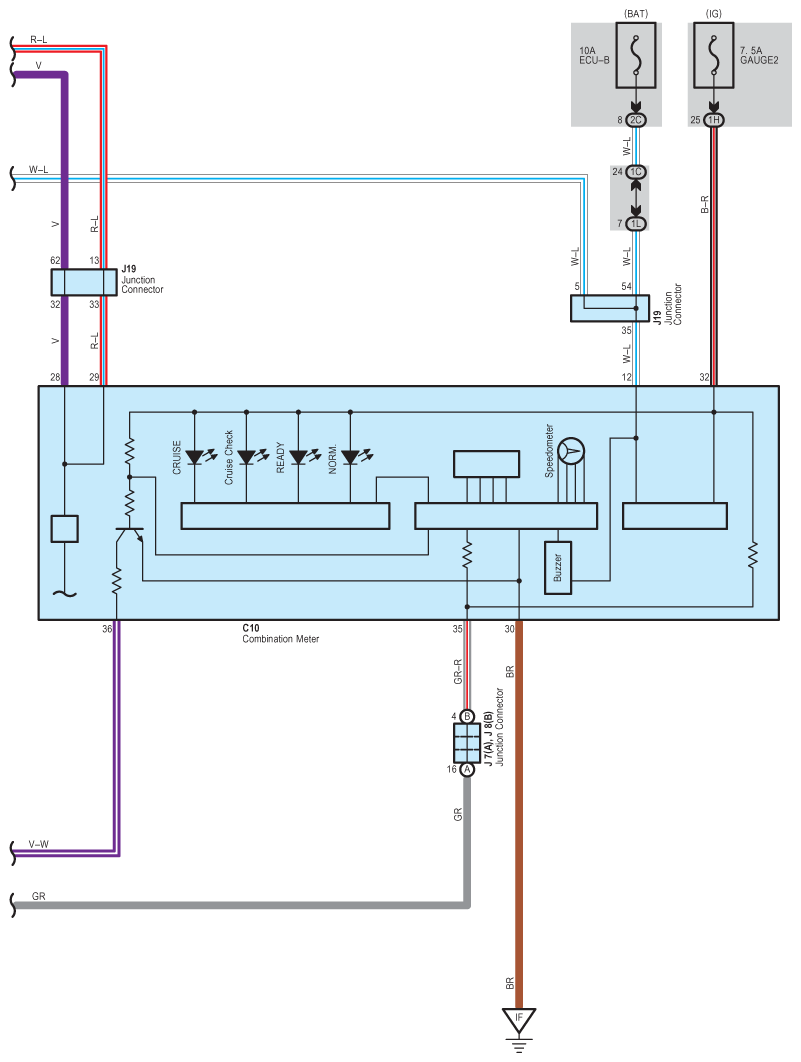

Fig 9: Dynamic Laser Cruise Control System Wiring Diagram (9 Of 9)
G08796108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
