Automatic Light Control: Notes

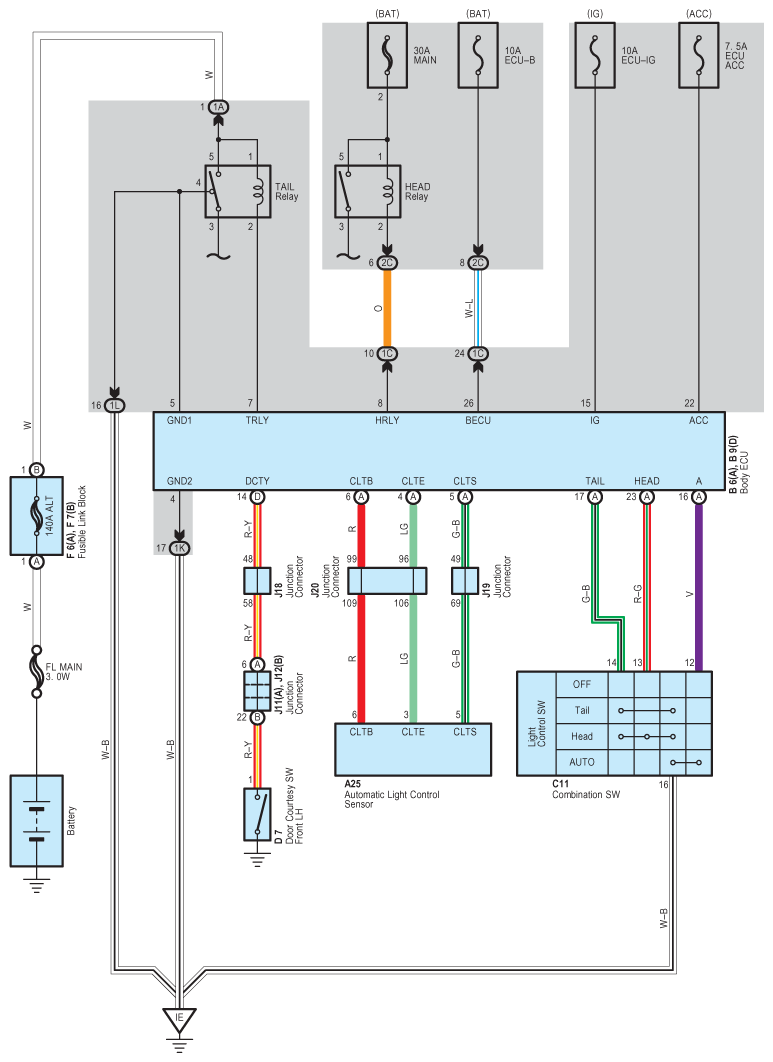

Fig 1: Automatic Light Control System Wiring Diagram

G08796030

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
