Rear Side Window Glass: Components

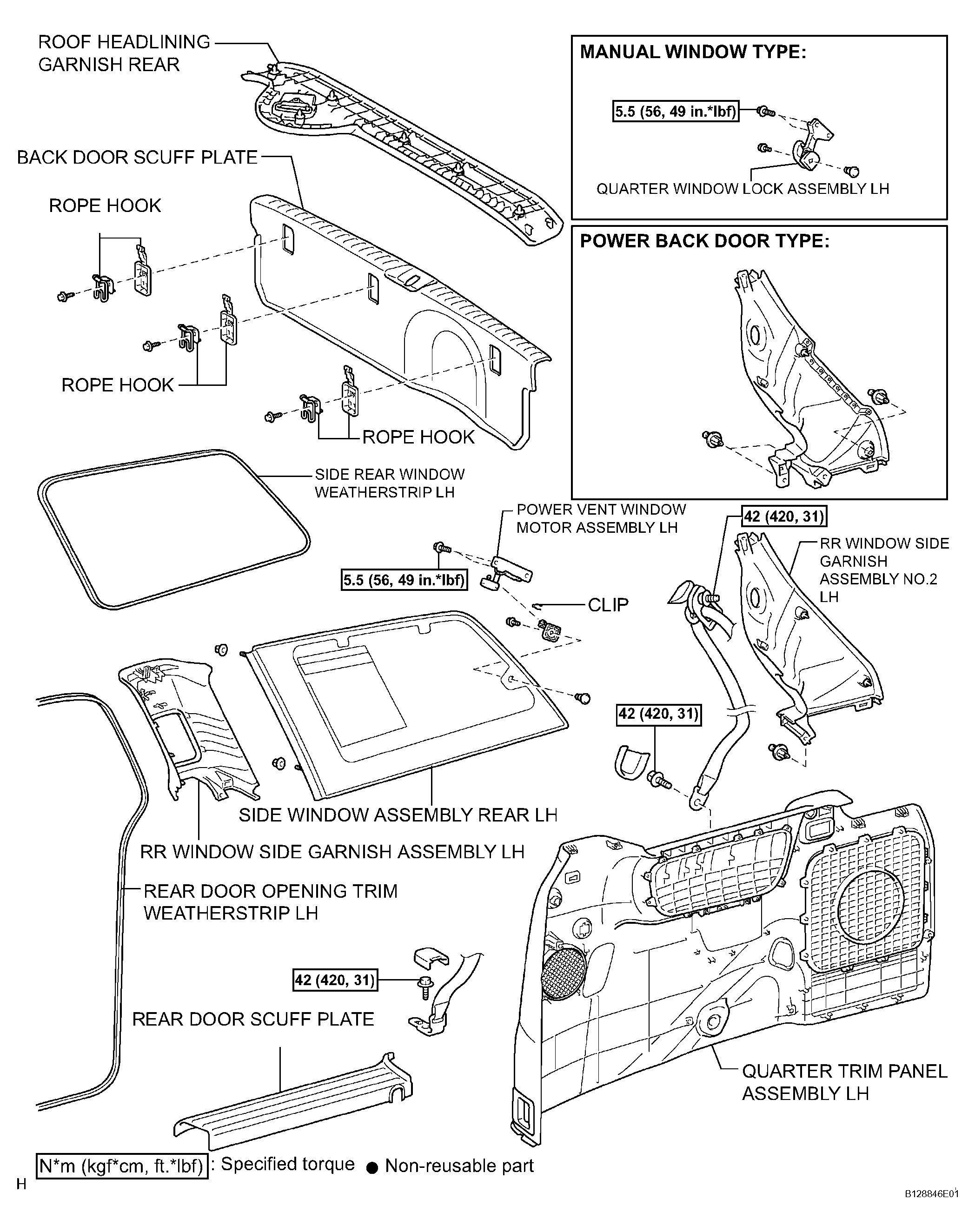

Fig 1: Identifying Rear Side Window Glass Components And Replacements

G04495687

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
