Power Window Regulator Motor: Inspection

  1. INSPECT POWER WINDOW REGULATOR MOTOR (FRONT RH)
    1. Remove the power window regulator motor.
    2. Apply battery voltage to the motor connector according to FRONT PASSENGER SIDE POWER WINDOW SWITCH  .
      NOTE: Do not apply battery to any terminals except terminals 1 and 2.

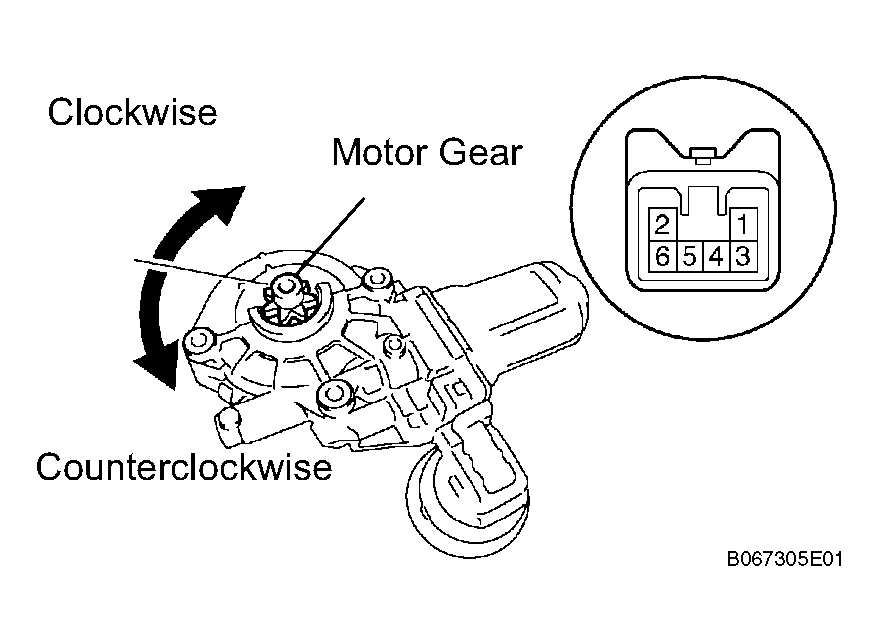

      Fig 1: Identifying Power Window Regulator Motor Connector Terminals
      G04116036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard

      POWER WINDOW REGULATOR MOTOR (FRONT RH)

      Measurement Condition Specified Condition
      Battery positive (+) -> Terminal 1 (D)
      Battery negative (-) -Terminal 2 (U)      		 Motor gear rotates clockwise
      Battery positive (+) -> Terminal 2 (U)
      Battery negative (-) -> Terminal 1 (D)      		 Motor gear rotates counterclockwise
  2. INSPECT POWER WINDOW REGULATOR MOTOR (FRONT LH)
    1. Remove the power window regulator motor.
    2. Apply battery voltage to the motor connector according to POWER WINDOW REGULATOR MOTOR (FRONT LH)  .
      NOTE: Do not apply battery to any terminals except terminals 1 and 2.

      Standard

      POWER WINDOW REGULATOR MOTOR (FRONT LH)

      Measurement Condition Specified Condition
      Battery positive (+) -> Terminal 1 (D)
      Battery negative (-) -> Terminal 2 (U)      		 Motor gear rotates counterclockwise
      Battery positive (+) -> Terminal 2 (U)
      Battery negative (-) -> Terminal 1 (D)      		 Motor gear rotates clockwise
      Fig 2: Identifying Power Window Regulator Motor Connector Terminals
      G04116033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT POWER WINDOW REGULATOR MOTOR (REAR RH)
    1. Remove the power window regulator motor.
    2. Apply battery voltage to the motor connector according to PPOWER WINDOW REGULATOR MOTOR (REAR RH)  .
      NOTE: Do not apply battery to any terminals except terminals 1 and 2.

      Standard

      PPOWER WINDOW REGULATOR MOTOR (REAR RH)

      Measurement Condition Specified Condition
      Battery positive (+) -> Terminal 1 (D)
      Battery negative (-) -> Terminal 2 (U)      		 Motor gear rotates counterclockwise
      Battery positive (+) -> Terminal 2 (U)
      Battery negative (-) -> Terminal 1 (D)      		 Motor gear rotates clockwise
      Fig 3: Identifying Power Window Regulator Motor Connector Terminals
      G04116036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT POWER WINDOW REGULATOR MOTOR (REAR LH)
    1. Remove the power window regulator motor.
    2. Apply battery voltage to the motor connector according to POWER WINDOW REGULATOR MOTOR (REAR LH)  .
      NOTE: Do not apply battery to any terminals except terminals 1 and 2.

      Standard

      POWER WINDOW REGULATOR MOTOR (REAR LH)

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 1 (D)
      Battery negative (-) --> Terminal 2 (U)      		 Motor gear rotates clockwise
      Battery positive (+) --> Terminal 2 (U)
      Battery negative (-) --> Terminal 1 (D)      		 Motor gear rotates counterclockwise
      Fig 4: Identifying Power Window Regulator Motor Connector Terminals
      G04116033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
