Back Door Glass: Components

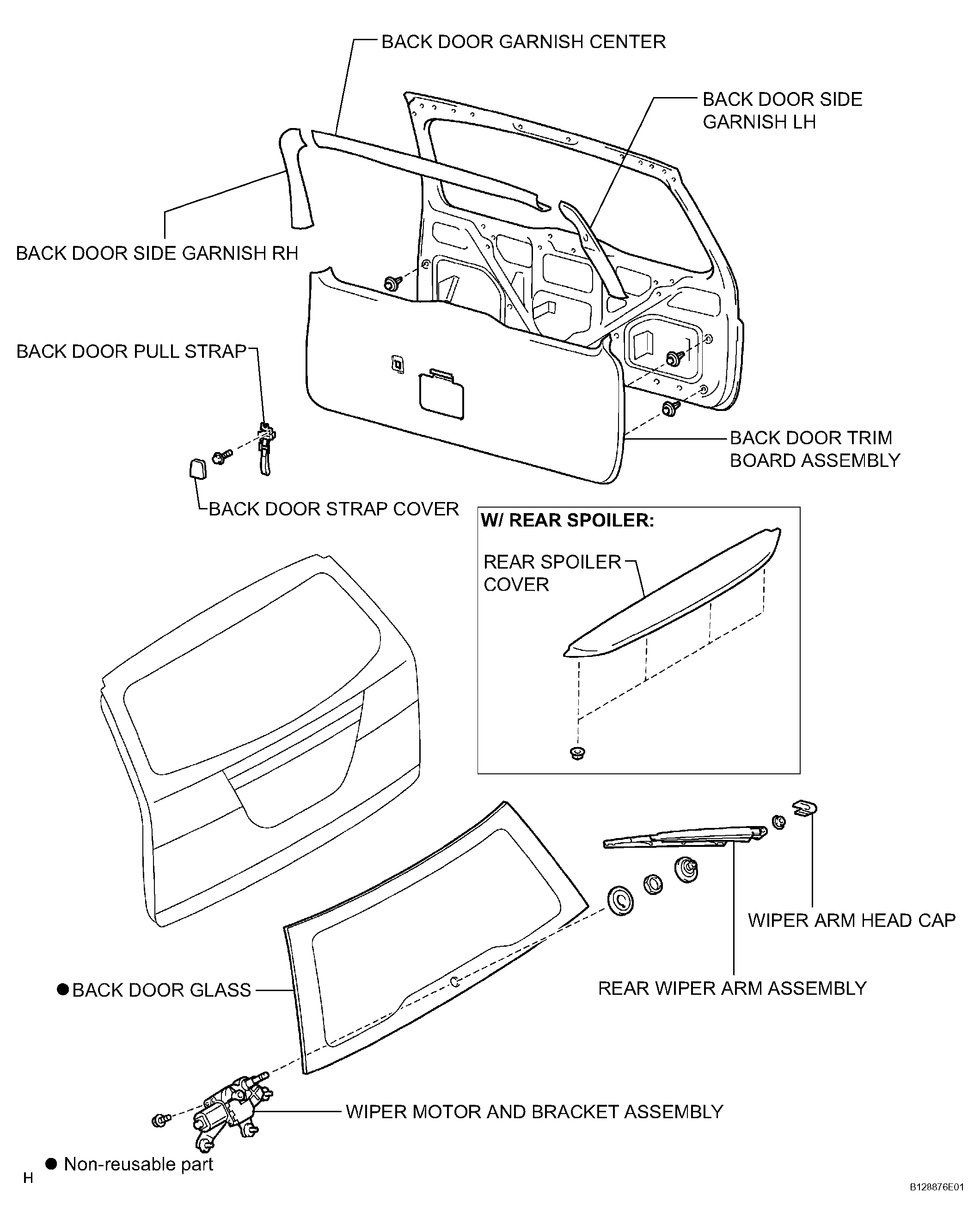

Fig 1: Identifying Back Door Glass Components And Replacements

G04495690

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
