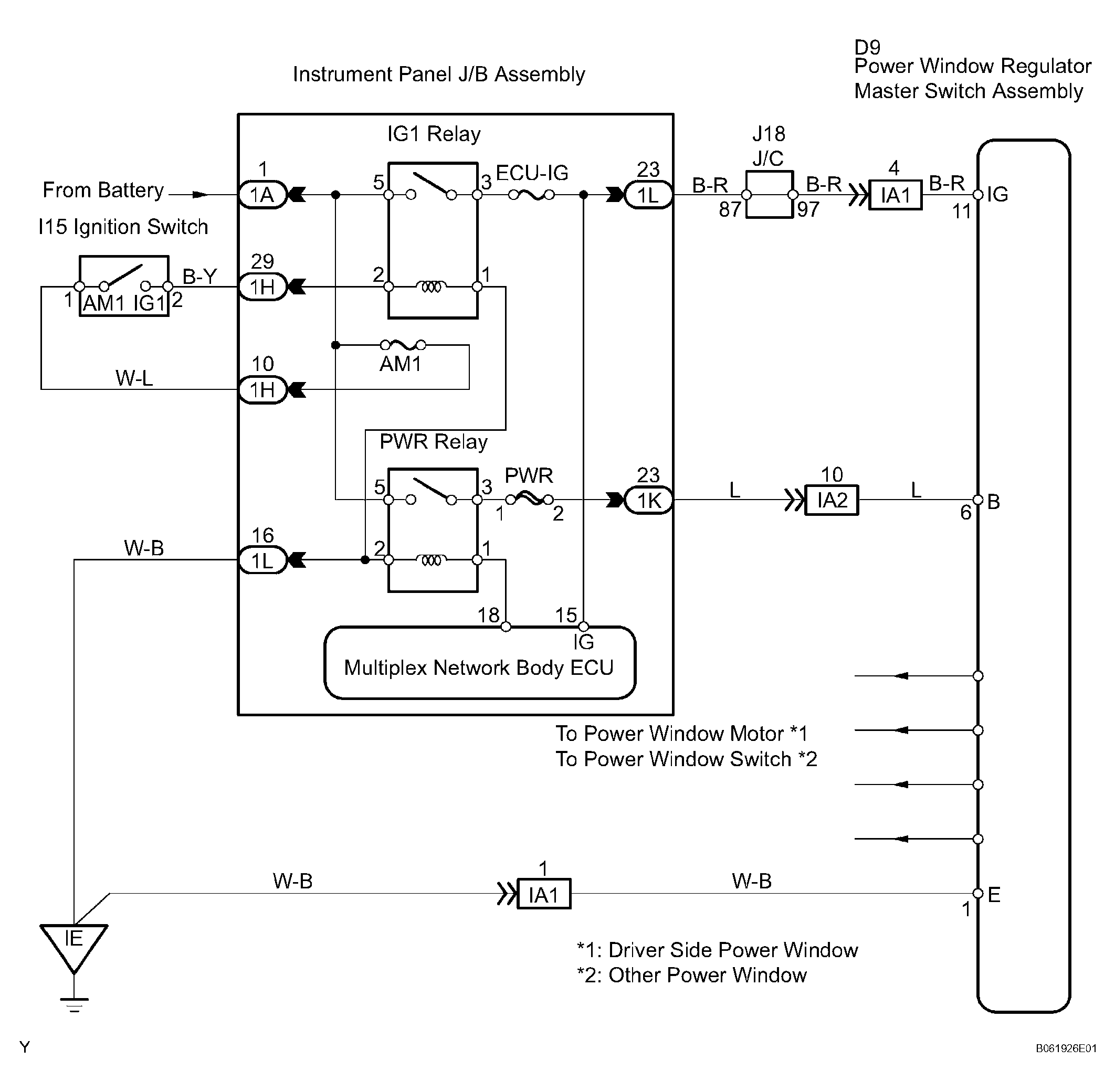

Power Windows do not Operate at All: Wiring Diagram

1. Remove the fuses from the instrument panel J/B.
2. Check the resistance.

   Standard resistance: Below 1 Ω

NG: REPLACE FUSE

OK: Go to next step.

1. Remove the relay from the instrument panel J/B.
2. Check the resistance of the relay.

   Standard resistance

   RELAY (IG1, PWR)



   Terminal No.	Specified Condition
   3 - 5	10 kΩ or higher
   	Below 1 Ω (When battery voltage is applied to terminals 1 and 2)

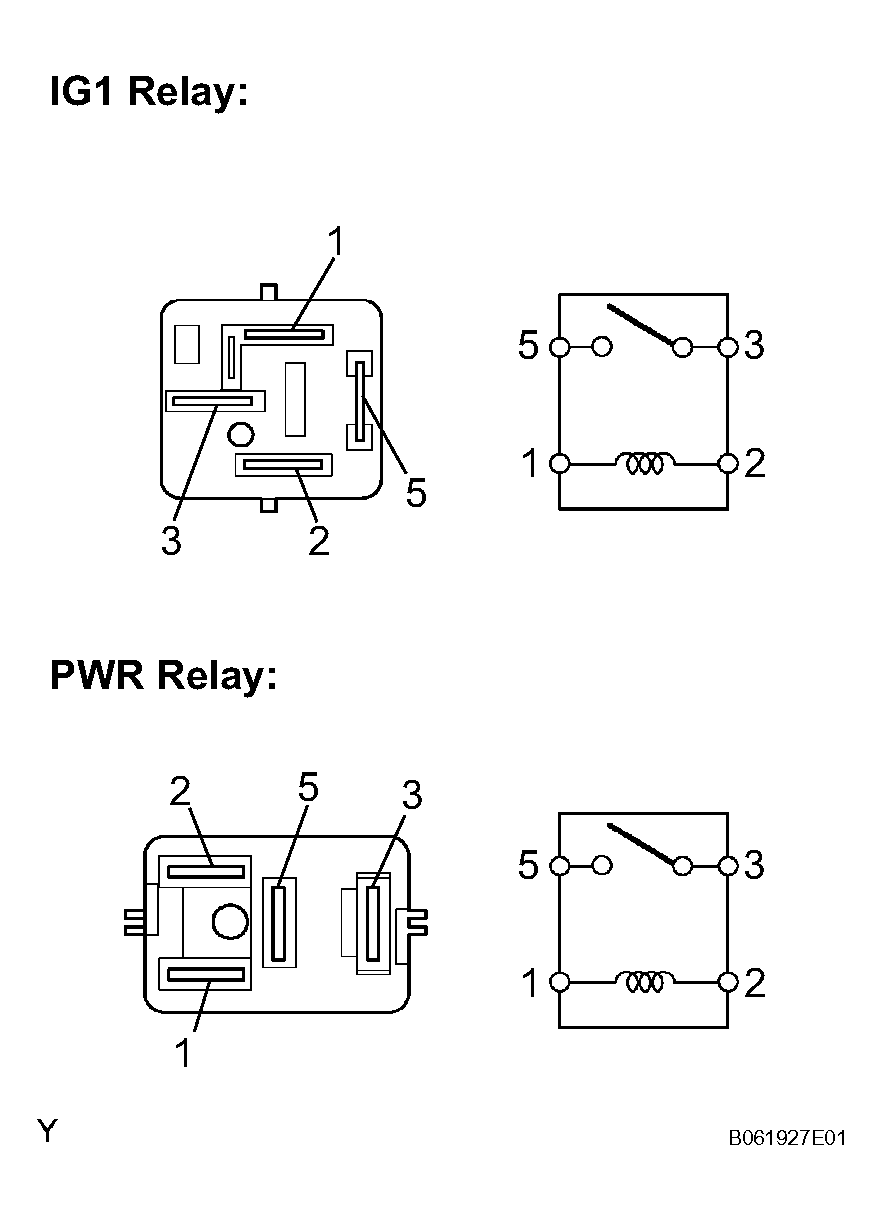

   Fig 2: Inspecting Relay (IG1, PWR)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE RELAY

OK: Go to next step.

1. Disconnect the 1A, 1H and 1L J/B connectors.
2. Check the voltage and resistance between each terminal of the wire harness side connector and the body ground.

   Standard voltage

   TO INSTRUMENT JUNCTION BLOCK ASSEMBLY (VOLTAGE)



   Terminal No.	Condition	Specified Condition
   1A-1 - Body ground	Constant	10 to 14 V

   Standard resistance

   TO INSTRUMENT JUNCTION BLOCK ASSEMBLY (RESISTANCE)



   Terminal No.	Condition	Specified Condition
   1L-16 - Body ground	Constant	Below 1 Ω
   1H-10 - 1H-29	Ignition switch ON	Below 1 Ω

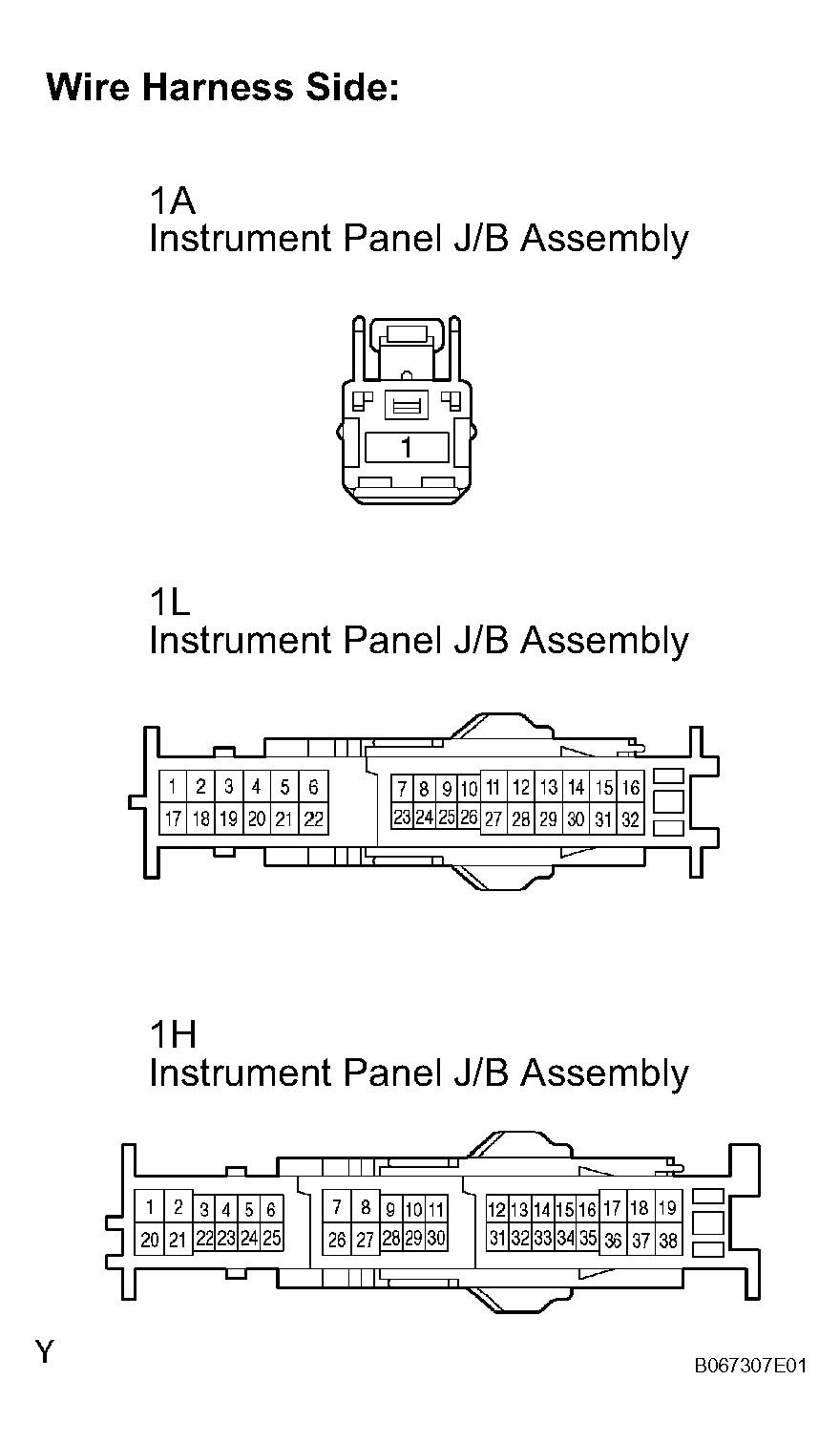

   Fig 3: Checking Wire Harness (To Instrument Junction Block Assembly)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step.

1. Disconnect the D9 master switch connector.
2. Check the voltage or resistance between each terminal of the wire harness side connector and the body ground.

   Standard voltage

   TO POWER WINDOW REGULATOR MASTER SWITCH (VOLTAGE)



   Terminal No.	Condition	Specified Condition
   D9-6 (B) - Body ground	Ignition switch ON	10 to 14 V
   D9-11 (IG) - Body ground

   Standard resistance

   TO POWER WINDOW REGULATOR MASTER SWITCH (RESISTANCE)



   Terminal No.	Condition	Specified Condition
   D9-1 (E) - Body ground	Constant	Below 1 Ω

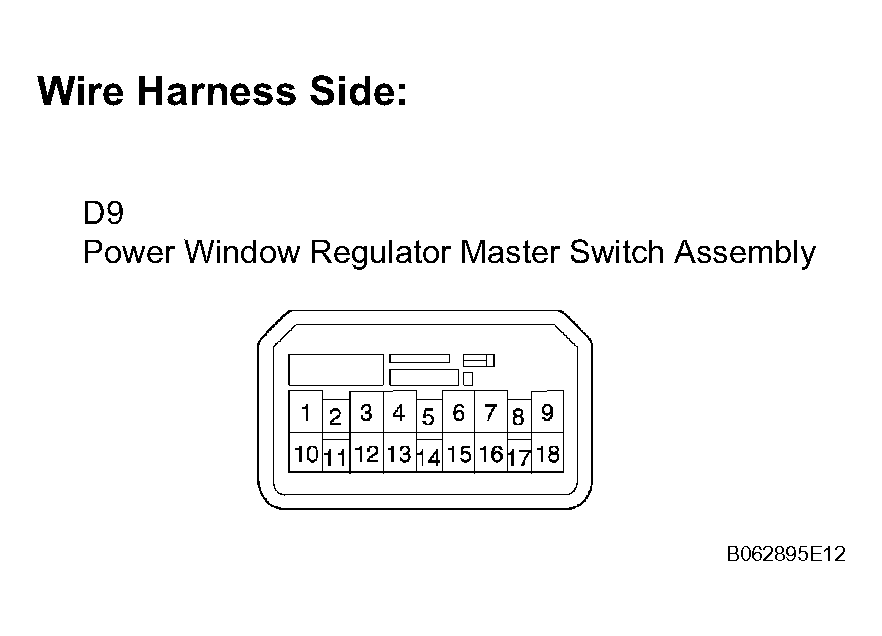

   Fig 4: Checking Wire Harness (To Power Window Regulator Master Switch)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: REPLACE POWER WINDOW MASTER SWITCH

NG: Go to next step.

1. Disconnect the 1L and 1K J/B connectors.
2. Disconnect the D9 master switch connector.
3. Check the resistance between the wire harness side connectors.

   Standard resistance

   INSTRUMENT JUNCTION BLOCK - POWER WINDOW MASTER SWITCH



   Terminal No.	Specified Condition
   1K-20 - D9-6 (B)	Below 1 Ω
   1L-23 - D9-11 (IG)

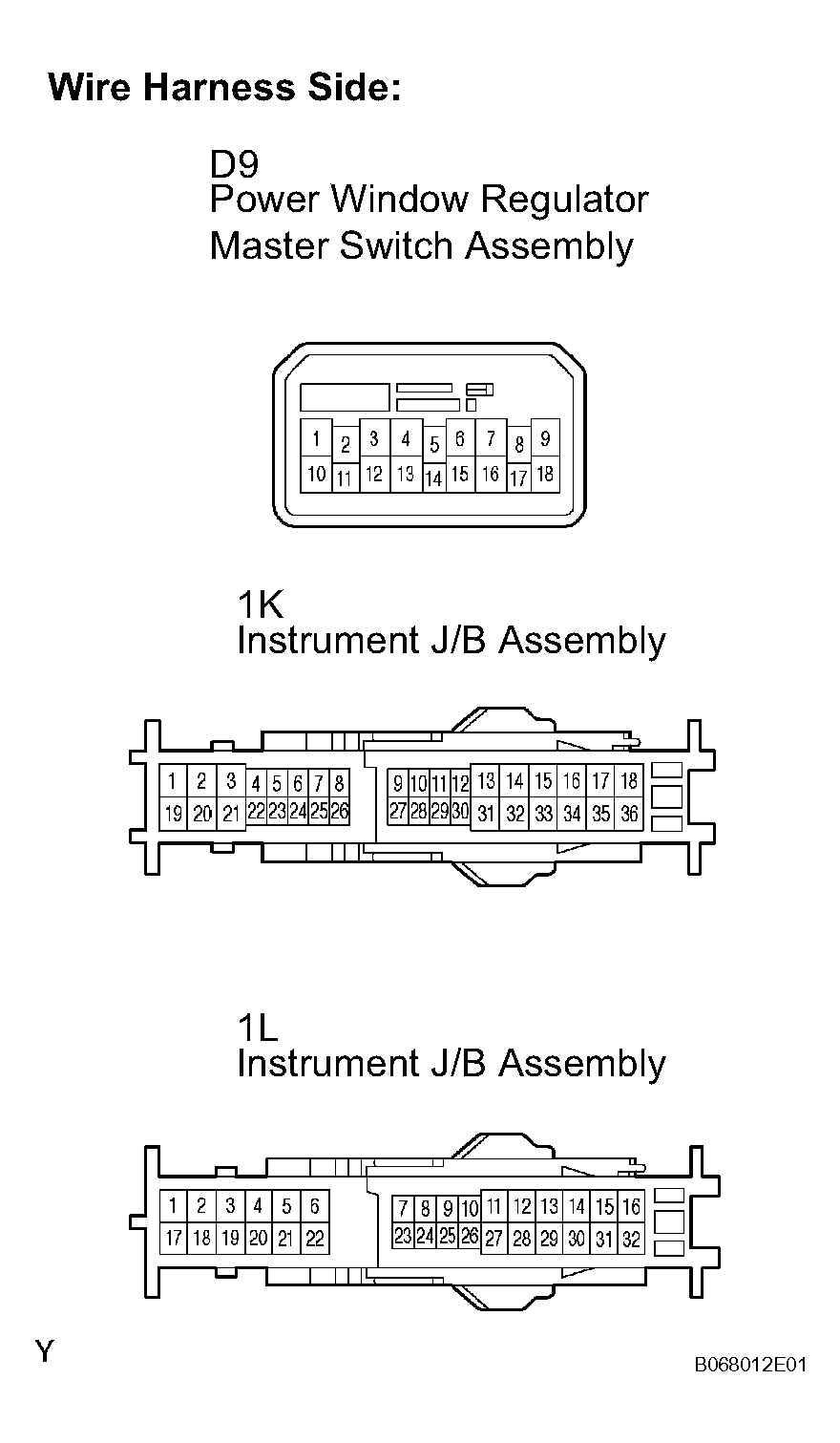

   Fig 5: Checking Wire Harness (Instrument Junction Block - Power Window Master Switch)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: REPLACE INSTRUMENT PANEL J/B ASSEMBLY
