Automatic Transaxle Assembly: Removal

HINT:

(See REMOVAL )

HINT:

(See REMOVAL )

HINT:

(See REMOVAL )

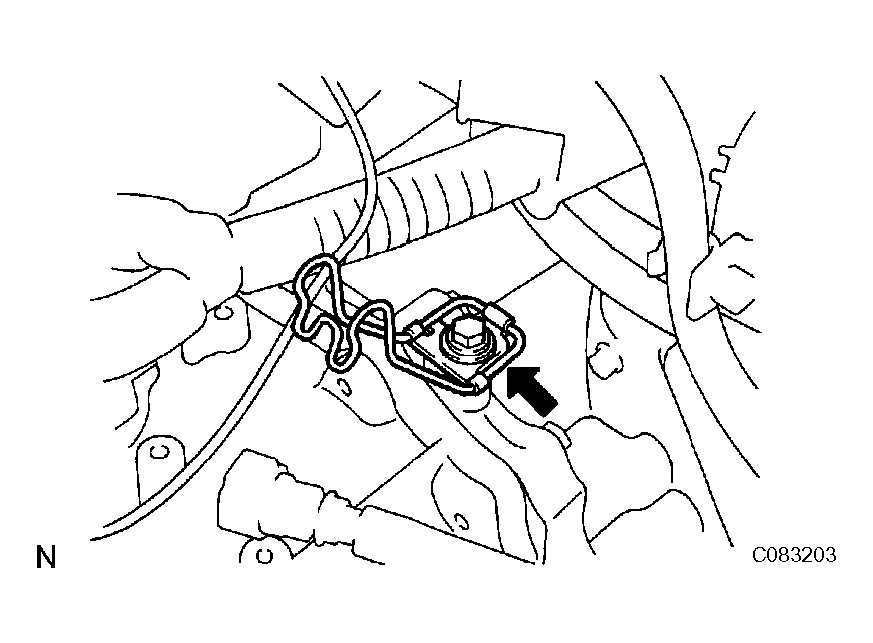

1. Remove the bolt and the transmission control cable clamp.
   Fig 1: Removing Transmission Control Cable Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the wire harnesses from the clamp.

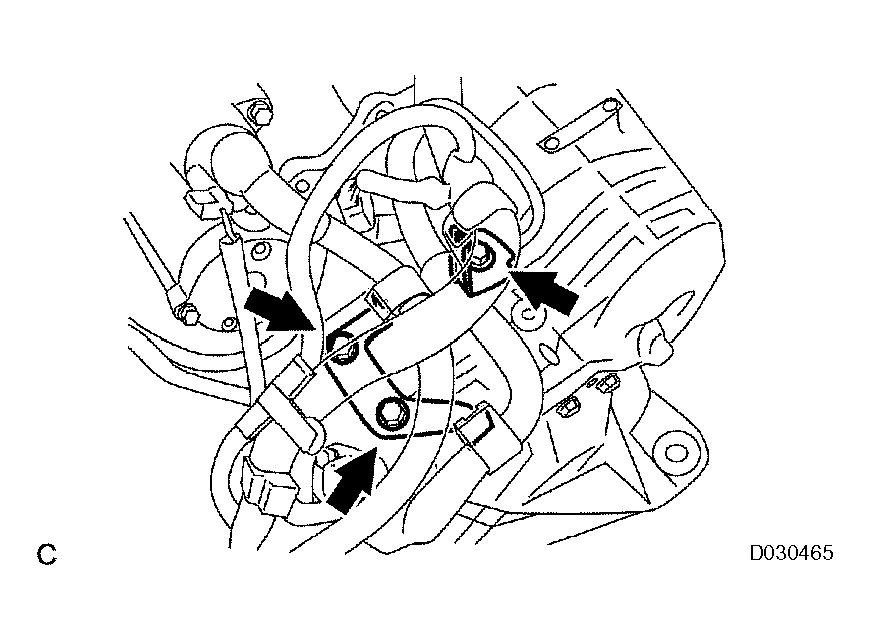

2. Remove the 3 bolts and 2 clamps.
   Fig 2: Removing 3 Bolts And 2 Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the bolt and disconnect the wire harness.
   Fig 3: Locating Wire Harness Mounting Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

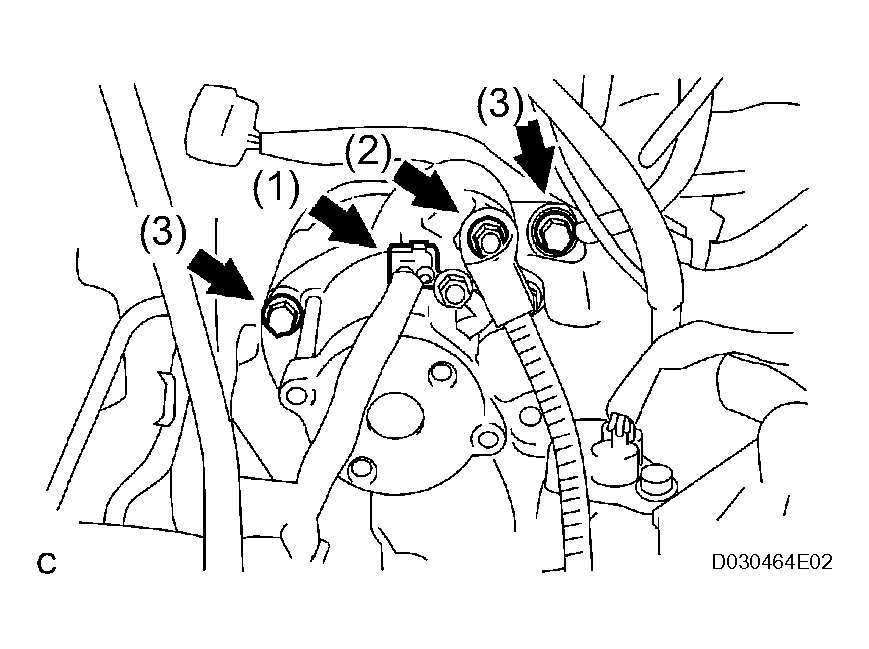

1. Disconnect the connector (1).
2. Remove the nut (2) and disconnect the starter wire.
3. Remove the 2 bolts (3) and starter assembly.
   Fig 4: Removing 2 Bolts (3) And Starter Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

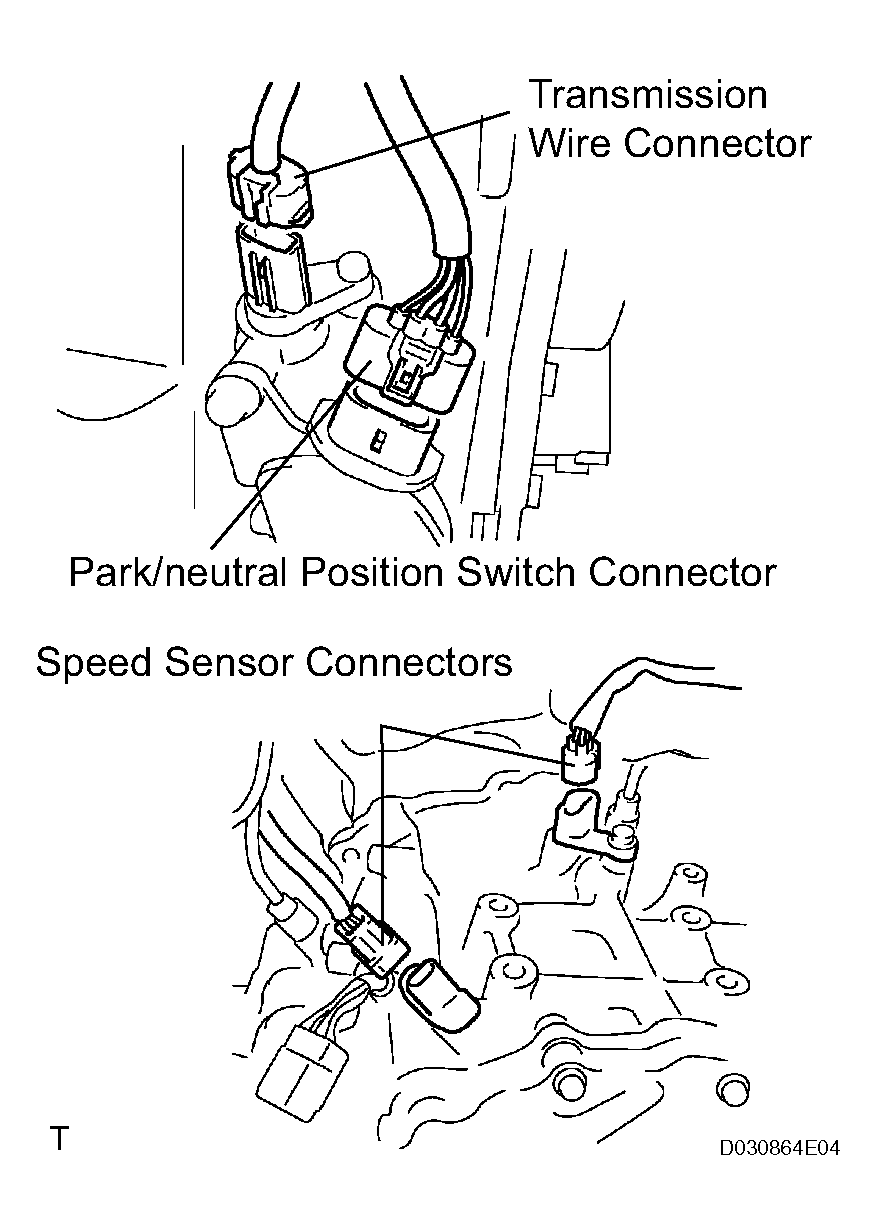

1. Disconnect the transmission wire connector.
2. Disconnect the park/neutral position switch connector.
3. Disconnect the 2 speed sensor connectors.
   Fig 5: Disconnecting Transmission Wire Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

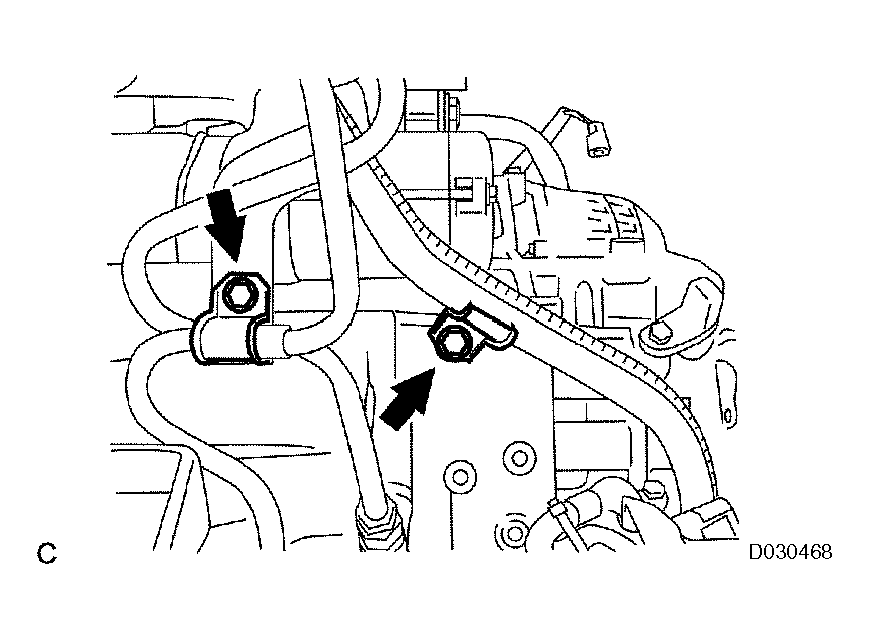

1. Remove the bolt and automatic transmission oil cooler tube clamp.

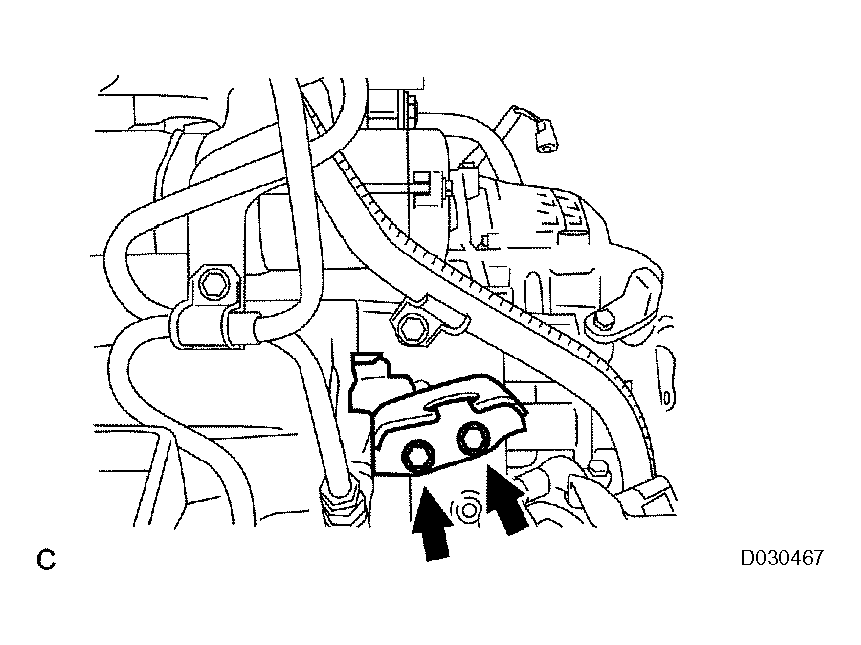

2. Remove the 2 bolts and transmission control cable bracket No.1.
   Fig 6: Removing 2 Bolts And Transmission Control Cable Bracket No.1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the ATF level gauge.
2. Disconnect the wire harnesses 2 clamps from the oil filler tube.
3. Remove the 2 bolts and oil filler tube.
4. Remove the O-ring from the oil filler tube.
   Fig 7: Removing 2 Bolts Of Oil Filler Tube

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

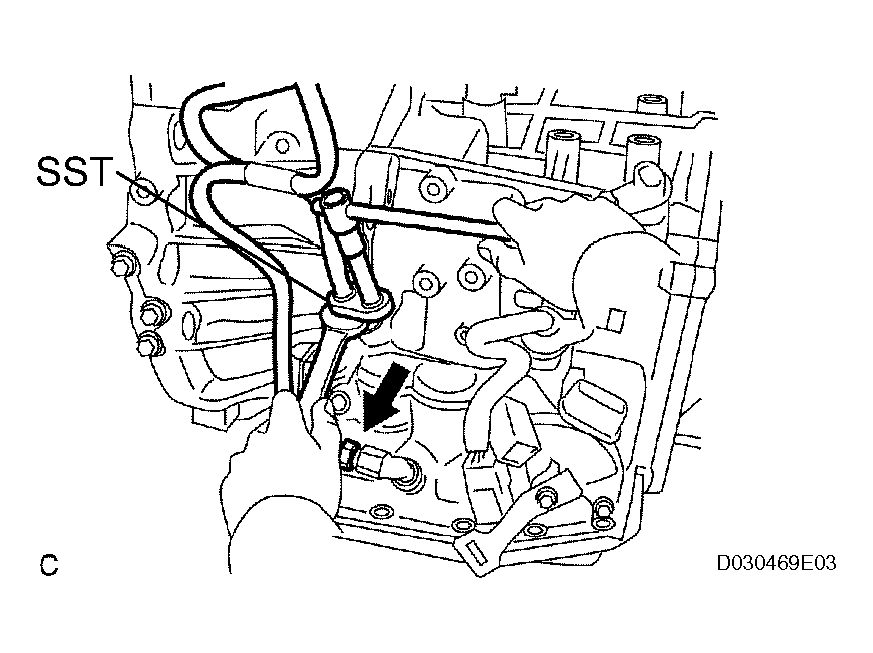

1. Using SST and a wrench, disconnect the oil cooler inlet tube No.1.

   SST 09023-12701

1. Using SST and a wrench, disconnect the oil cooler outlet tube No.1.

   SST 09023-12701

   Fig 8: Disconnecting Oil Cooler Outlet Tube No.1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

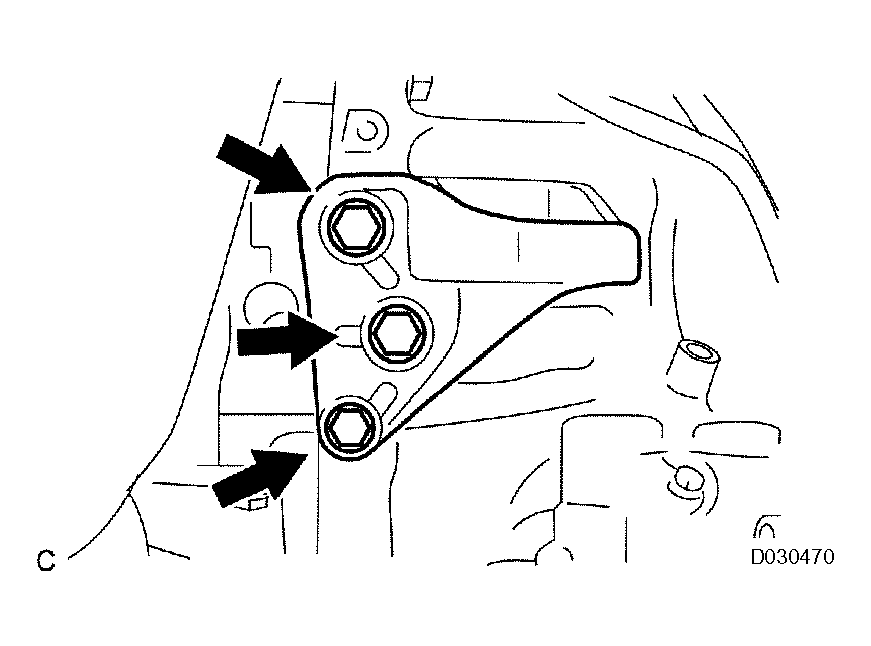

1. Remove the 3 bolts and engine mounting bracket front.
   Fig 9: Removing 3 Bolts And Engine Mounting Bracket Front

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

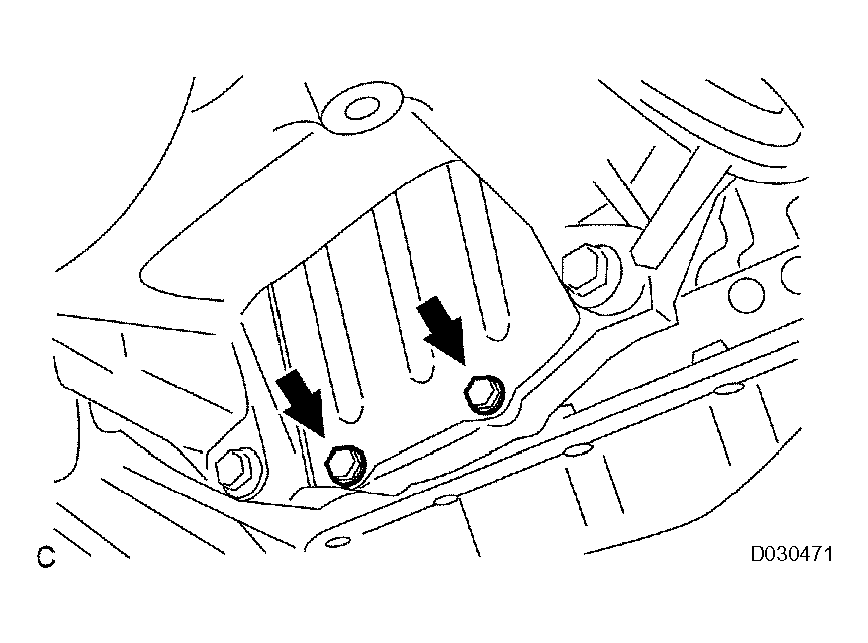

1. Remove the 2 bolts and flywheel housing under cover.
   Fig 10: Removing 2 Bolts Of Flywheel Housing Under Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the crankshaft to gain access and remove the 6 bolts while holding the crankshaft pulley bolt with a wrench.

   HINT:

   There will be one green colored bolt.

   Fig 11: Identifying Torque Converter Clutch Mounting Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

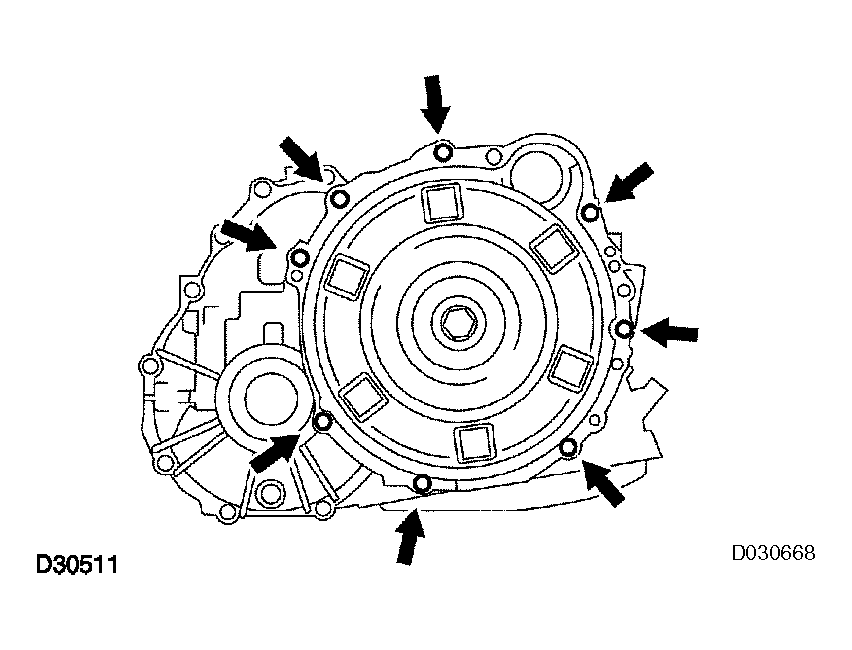

3. Remove the 8 bolts.
4. Separate and remove the automatic transaxle.

HINT:

(See TORQUE CONVERTER CLUTCH AND DRIVE PLATE  )

Fig 12: Removing 8 Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
