Automatic Transaxle Assembly: Installation

  1. INSTALL TORQUE CONVERTER CLUTCH ASSEMBLY
    1. Install the torque converter clutch to the automatic transaxle.
    2. Using vernier calipers and a straight edge, measure the dimension "A" between the transaxle fitting part of the engine and the converter fitting part of the drive plate (*1).

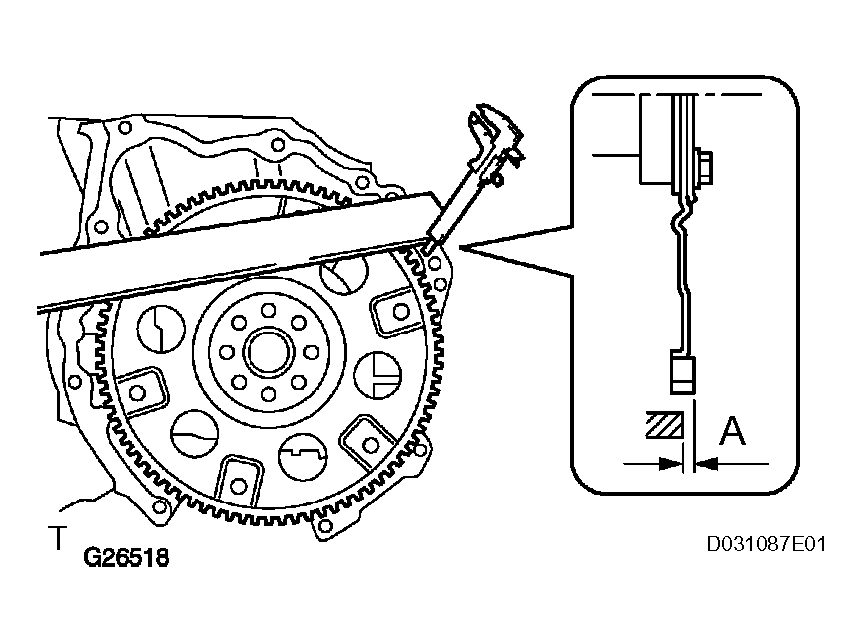

      Fig 1: Measuring Dimension "A" Between Transaxle Fitting Part Of Engine
      G04496520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using vernier calipers and a straight edge, measure the dimension "B" shown in the illustration and check that "B" is greater than "A" (measured in step (*1)).

      Standard:

      A + 1 mm (0.03937 in.) or more

      NOTE: Remember to minus the thickness of the straight edge.
      Fig 2: MeasuringTorque Converter Dimension "B"
      G04496521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY
    1. Install the automatic transaxle to the engine with the 8 bolts.

      Torque: Bolt A

      64 N*m (650 kgf*cm, 47 ft.*lbf)

      Bolt B

      46 N*m (470 kgf*cm, 34 ft.*lbf)

      Bolt C

      37 N*m (377 kgf*cm, 27 ft.*lbf)

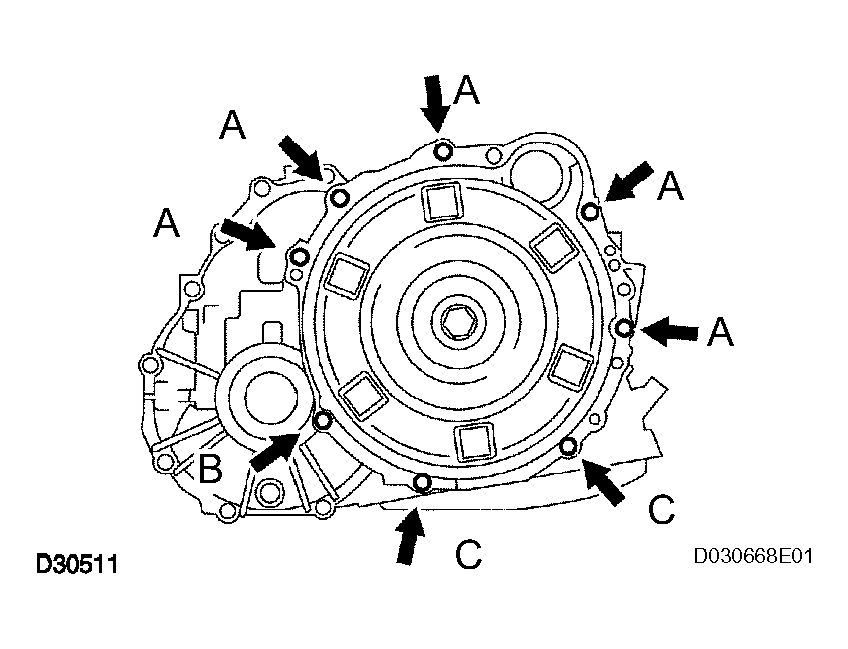

      Fig 3: Installing Automatic Transaxle To Engine With 8 Bolts
      G04496522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply a few drops of adhesive to each of 2 threads on the tip of the 6 torque converter clutch mounting bolts.

      Adhesive:

      Part No. 08833-00070, THREE BOND 1324 or equivalent

    3. Install the 6 torque converter clutch mounting bolts.

      Torque: 48 N*m (489 kgf*cm, 35 ft.*lbf)

      NOTE: First install the black colored bolt, and then the remaining 5 bolts.
      Fig 4: Identifying Torque Converter Clutch Mounting Bolts
      G04384881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the flywheel housing under cover to the automatic transaxle with the 2 bolt.

      Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

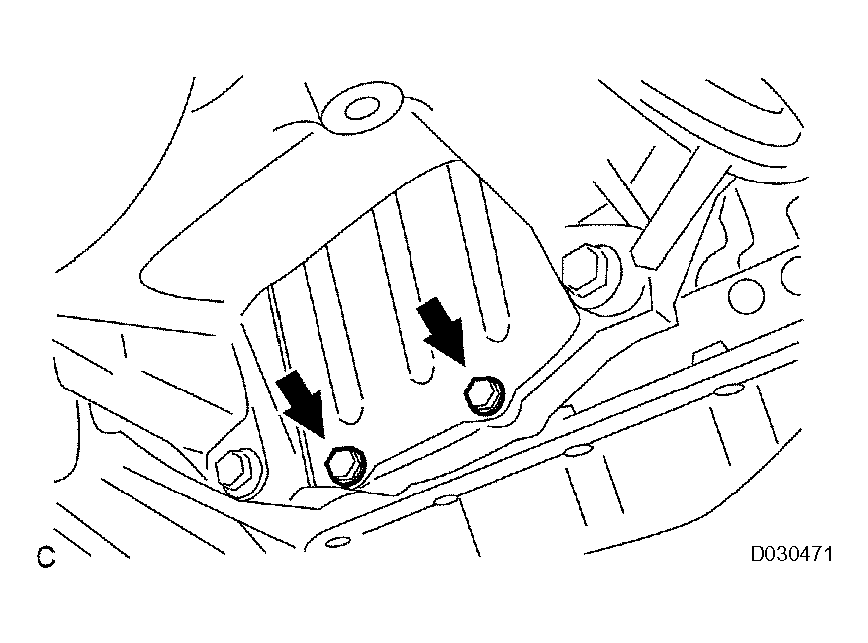

      Fig 5: Installing Flywheel Housing Under Cover To Automatic Transaxle With 2 Bolt
      G04496524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL ENGINE MOUNTING BRACKET FRONT
    1. Install the engine mounting bracket front to the automatic transaxle with the 3 bolts.

      Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

  4. INSTALL TRANSMISSION OIL FILLER TUBE SUB-ASSEMBLY
    1. Coat a new O-ring with ATF, and install it to the transmission oil filler tube sub-assembly.
      Fig 6: Installing Transmission Oil Filler Tube Sub-Assembly
      G04496525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the transmission oil filler tube sub-assembly and bolt to the automatic transaxle.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    3. Connect the 2 clamps to the oil filler tube.
    4. Install the ATF level gauge.
  5. INSTALL OIL COOLER INLET TUBE NO.1
    1. Temporarily install the oil cooler outlet tube No.1.
    2. Temporarily install the oil cooler inlet tube No.1.

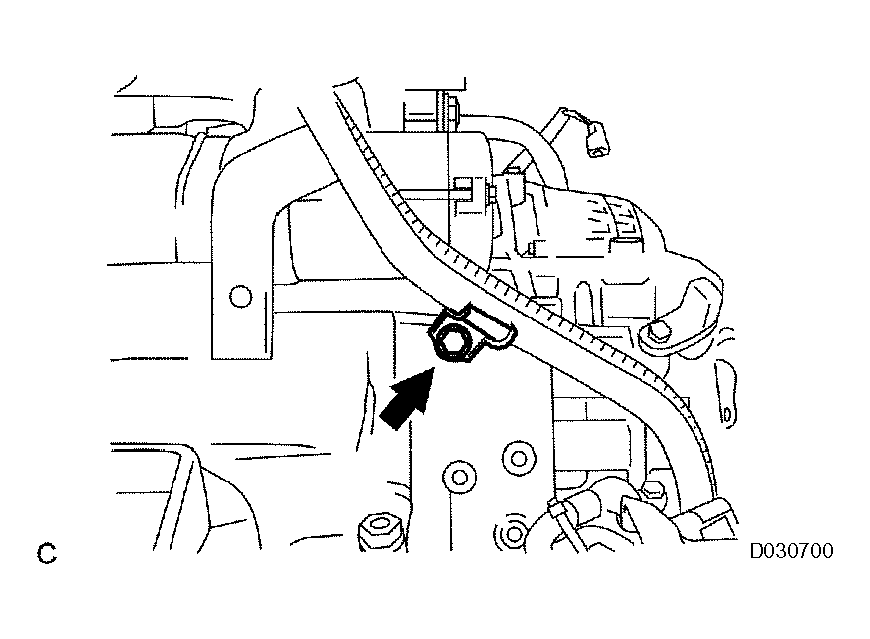

      Fig 7: Installing Oil Cooler Inlet Tube No.1
      G04496526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the oil cooler tube clamp and bolt.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

      Fig 8: Installing Oil Cooler Tube Clamp And Bolt
      G04496527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using SST and a wrench, tighten the oil cooler inlet tube No.1.

      SST 09023-12701

      Torque: 34 N*m (347 kgf*cm, 25 ft.*lbf)

  6. INSTALL OIL COOLER OUTLET TUBE NO.1
    1. Using SST and a wrench, tighten the oil cooler outlet tube No.1.

      SST 09023-12701

      Torque: 34 N*m (347 kgf*cm, 25 ft.*lbf)

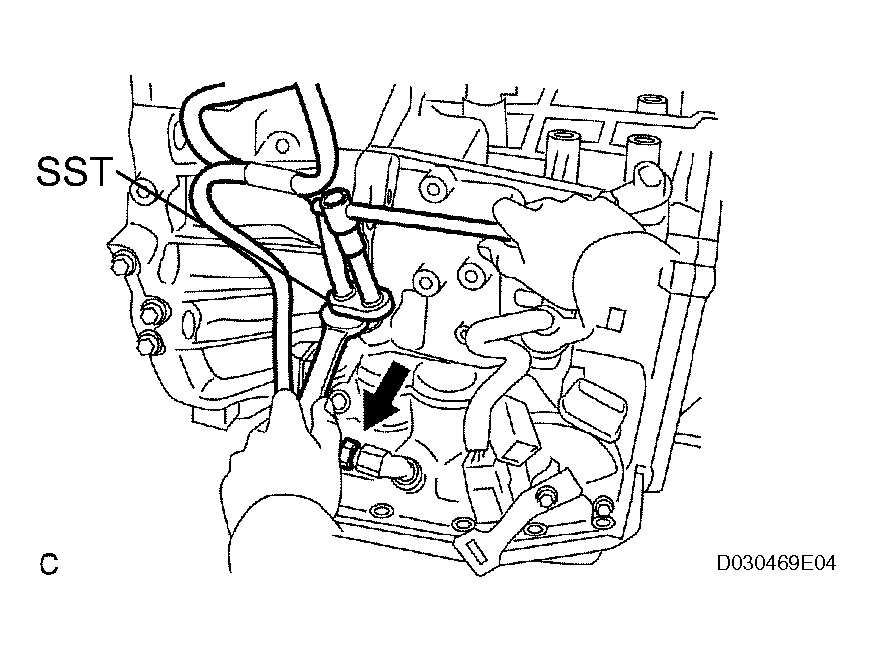

      Fig 9: Tightening Oil Cooler Inlet Tube No.1
      G04496528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL TRANSMISSION CONTROL CABLE BRACKET NO.1
    1. Install the control cable bracket No.1 with the 2 bolts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

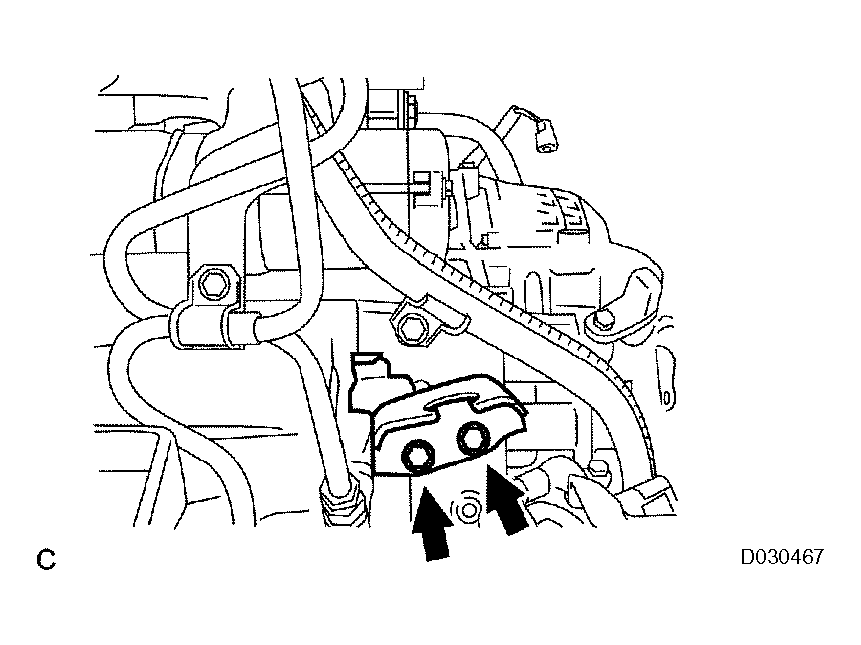

      Fig 10: Installing Control Cable Bracket No.1 With 2 Bolts
      G04496529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. CONNECT CONNECTORS
    1. Connect the transmission wire connector.
    2. Connect the park/neutral position switch connector.
    3. Connect the 2 speed sensor connectors.

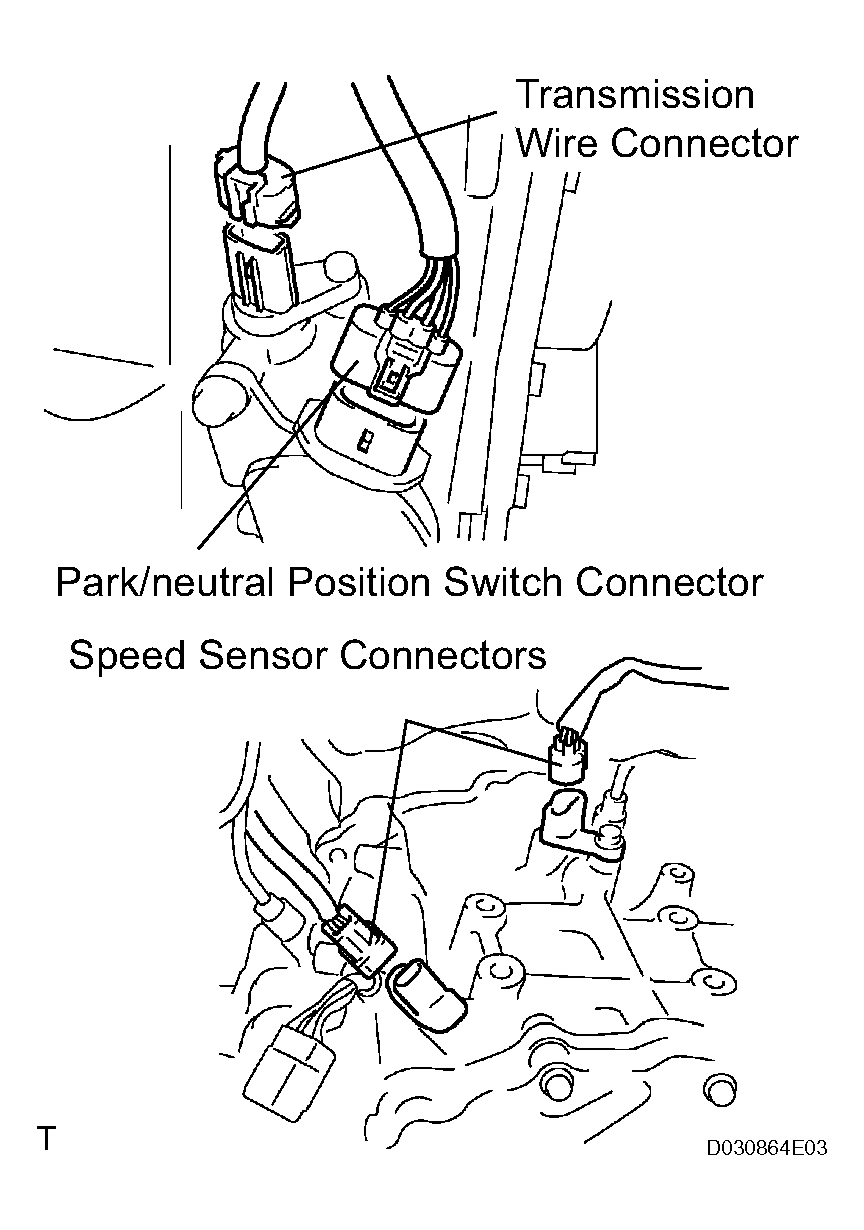

      Fig 11: Connecting Transmission Wire Connector
      G04496530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL STARTER ASSEMBLY
    1. Install the starter assembly with the 2 bolts (1).

      Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

    2. Connect the connector (2).
    3. Connect the starter wire with the nut (3).

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

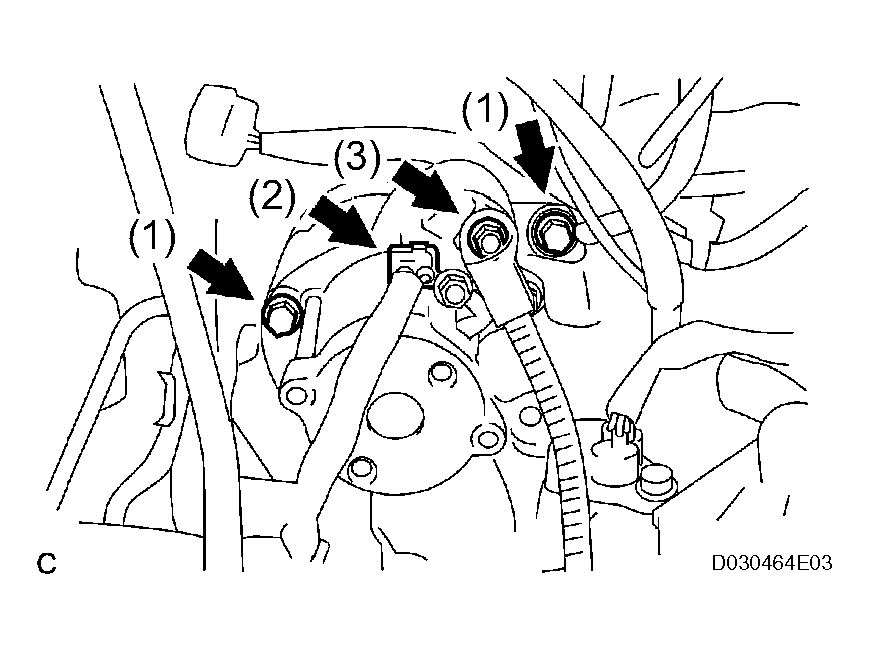

      Fig 12: Connecting Starter Wire With Nut
      G04496531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. CONNECT WIRE HARNESS
    1. Connect the wire harness with the bolt.

      Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

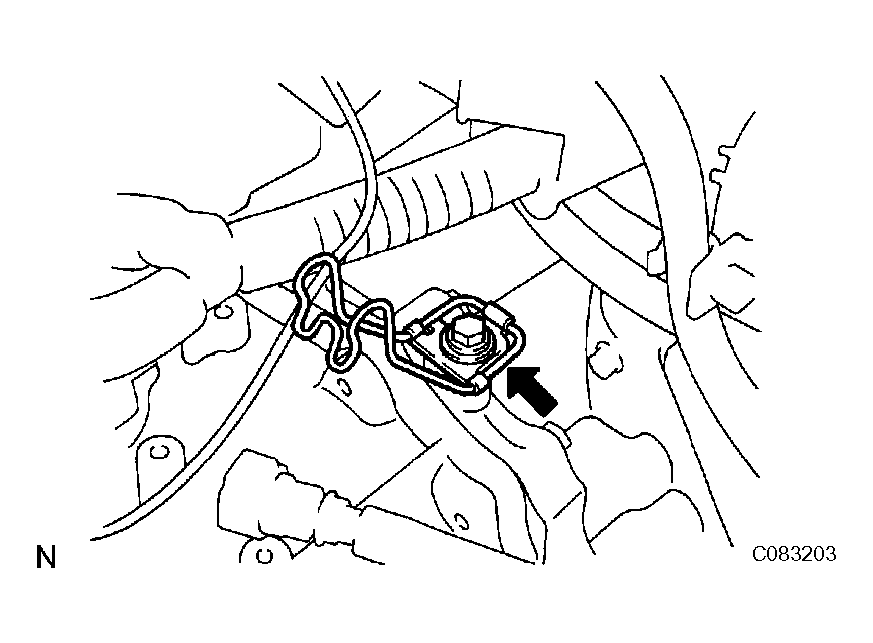

      Fig 13: Locating Wire Harness Mounting Bolt
      G04425249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL WIRE HARNESS CLAMP
    1. Install the 2 clamps and 3 bolts.

      Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)

    2. Connect the wire harnesses to the clamps.

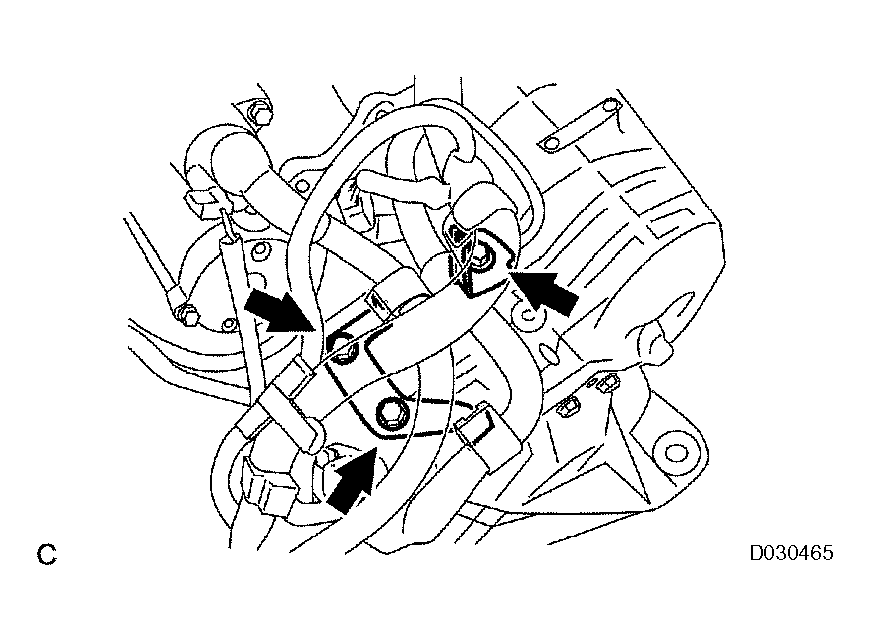

      Fig 14: Connecting Wire Harnesses To Clamps
      G04496533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL TRANSMISSION CONTROL CABLE CLAMP
    1. Install the transmission control cable clamp with the bolt.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  13. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH

    HINT:

    (See INSTALLATION )

  14. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH

    HINT:

    (See INSTALLATION )

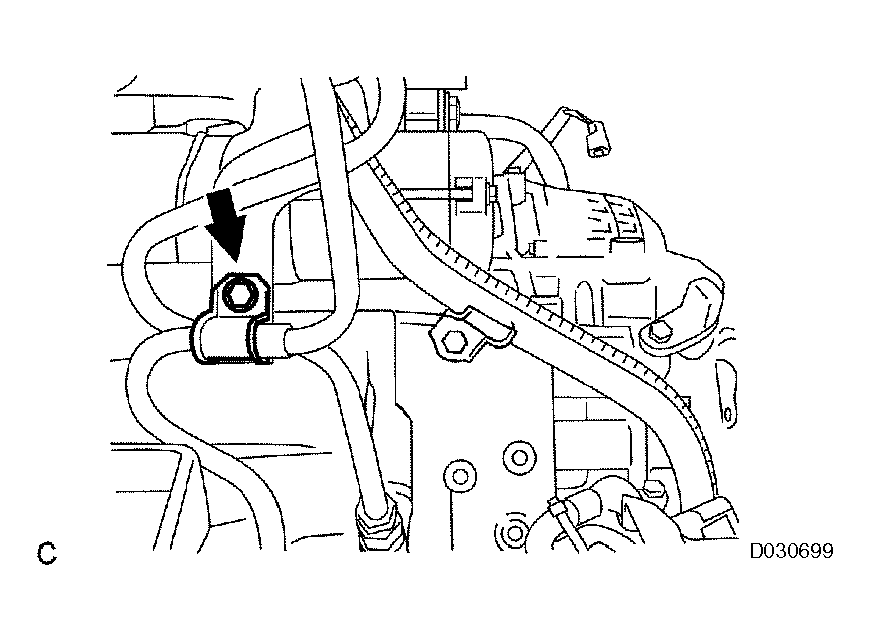

    Fig 15: Installing Transmission Control Cable Clamp With Bolt
    G04496534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE

    HINT:

    (See INSTALLATION )

  16. RESET MEMORY

    HINT:

    (See INITIALIZATION  )
