Section 1 (Transfer Case)
>>
Transfer Unit
>>
Components
Transfer Unit: Components
WARNING:
This page is about a different variant/trim than selected.

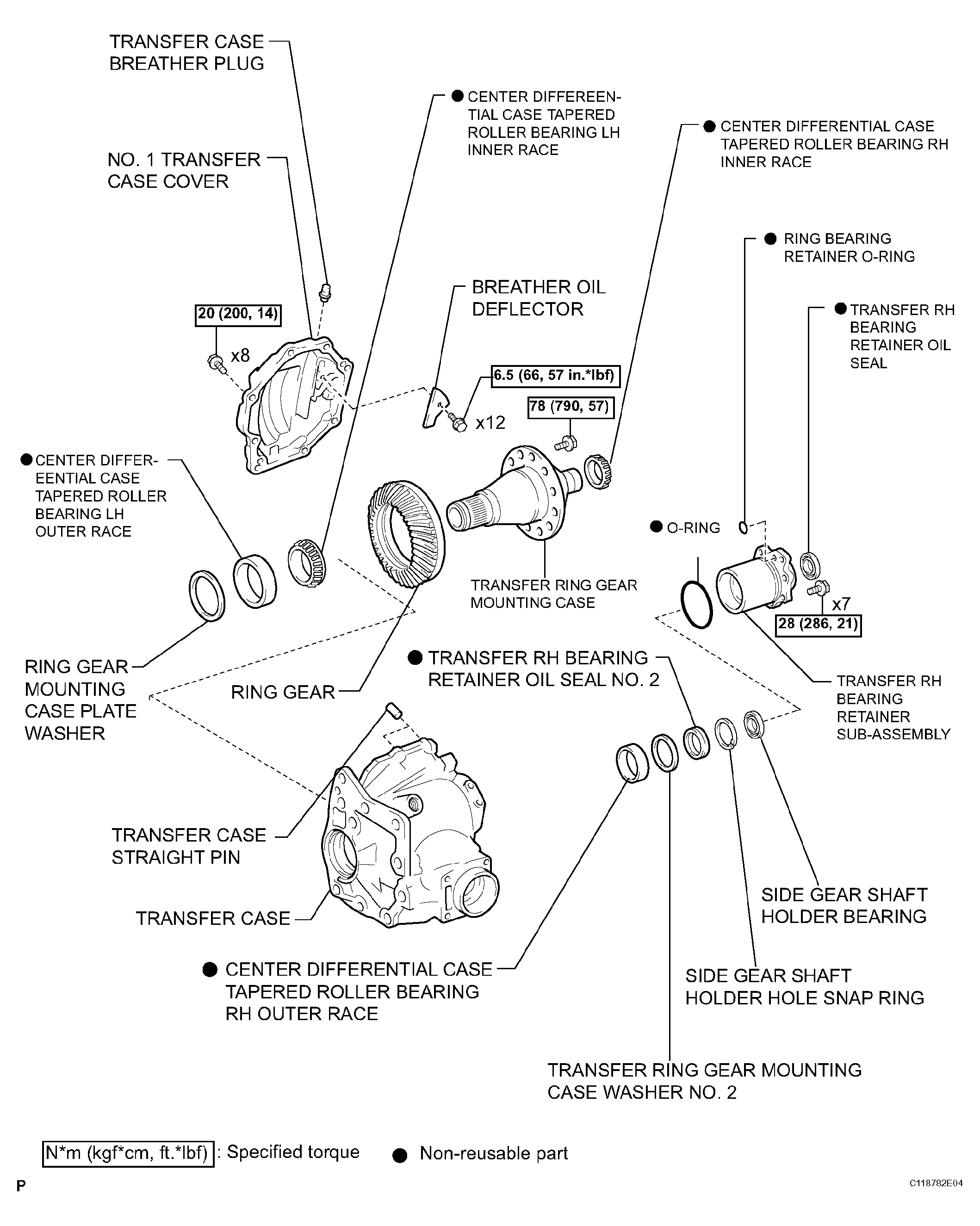

Fig 1: Identifying Transfer Unit Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

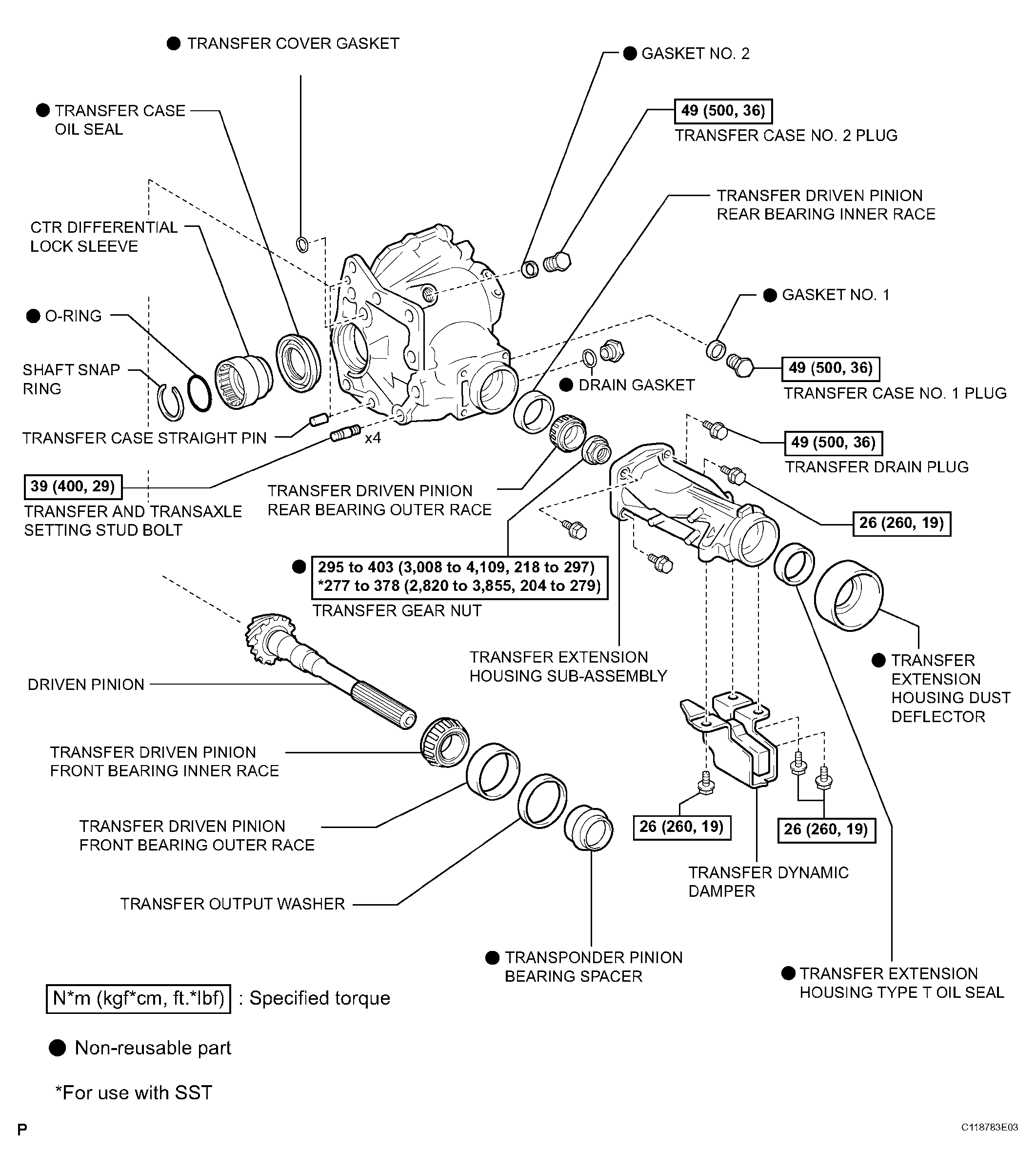

Fig 2: Identifying Transfer Unit Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
