Fuel Tank: Reassembly

  1. CONNECT FUEL TANK VENT HOSE
  2. INSTALL FUEL TANK TO FILLER PIPE HOSE
    1. Install a new fuel tank to filler pipe hose as shown in Fig 1 .

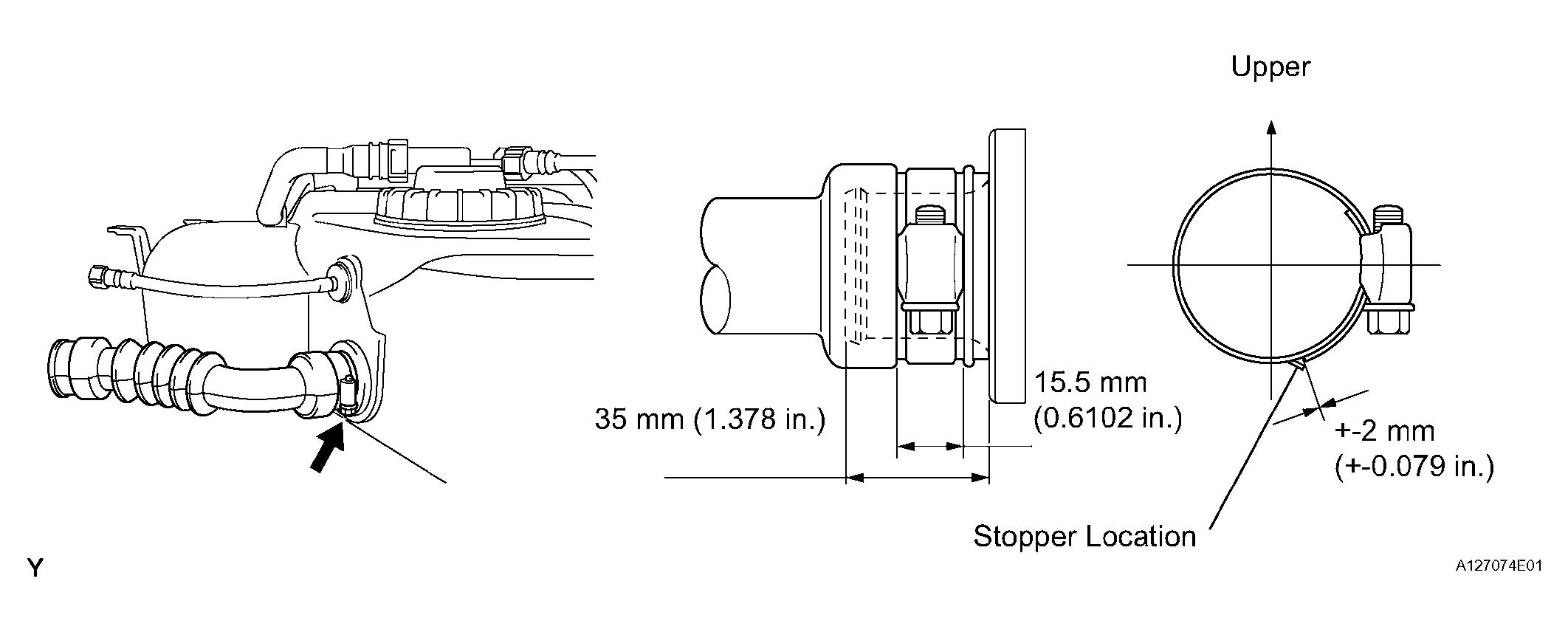

      Fig 1: Installing Fuel Tank To Filler Pipe Hose
      G04494402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAGE (See  REASSEMBLY   )
  4. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY (See  INSTALLATION   )
