Fuel Tank: Disassembly

REMOVE FUEL TANK MAIN TUBE SUB-ASSEMBLY (See REMOVAL )
REMOVE FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAGE (See DISASSEMBLY )
DRAIN FUEL
REMOVE FUEL TANK TO FILLER PIPE HOSE
1. Loosen the hose clamp bolt and remove the fuel tank to filler pipe hose from the fuel tank.

  Fig 1: Removing Fuel Tank To Filler Pipe Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL TANK VENT HOSE
1. Remove the hose of the fuel tank vent hose from the 3 hose clamps.
2. Remove the fuel tank vent hose.
  1. Deeply push the connector to release the locking tab.
  2. Pinch portion A.
  3. Pull out the connector.

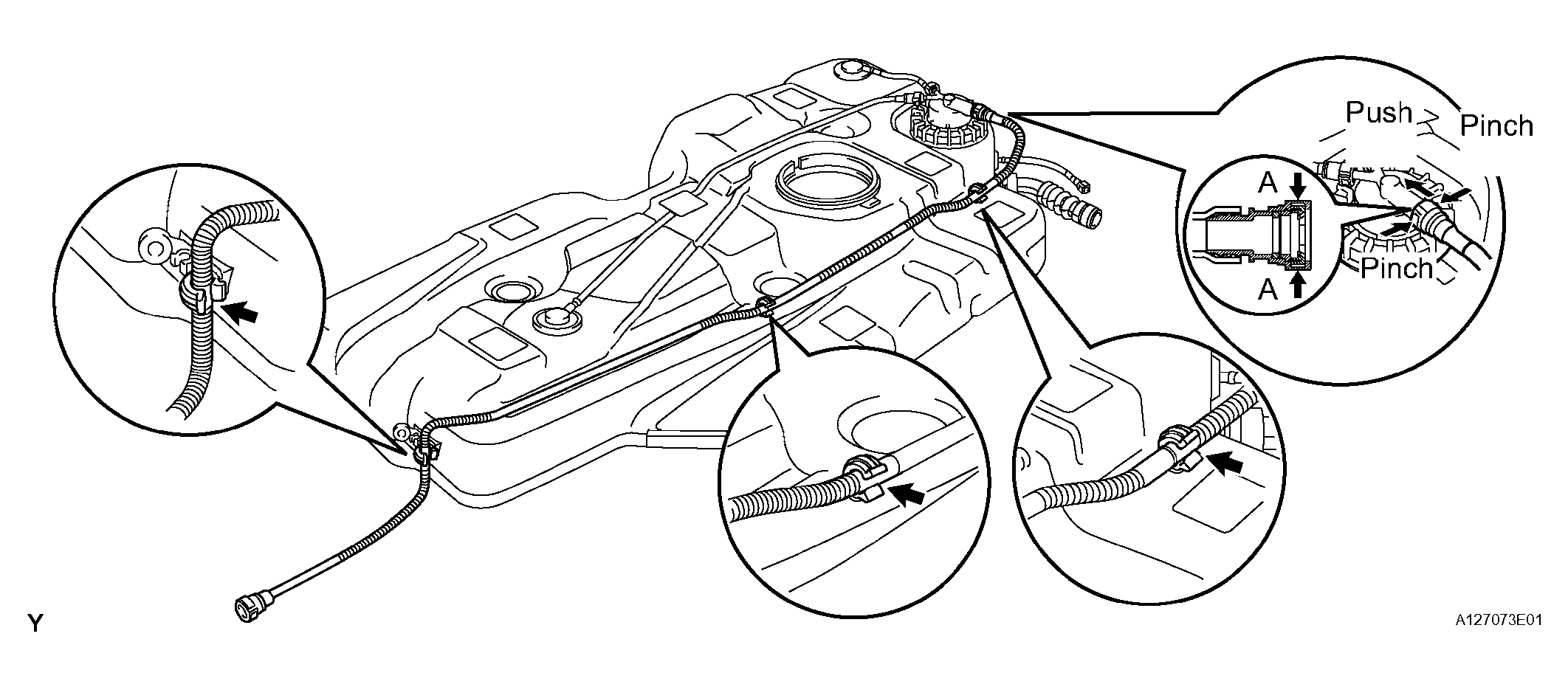

    Fig 2: Removing Fuel Tank Vent Hose
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
