Combination Meter: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working. (See PRECAUTION )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
1. Disengage the 4 clips and remove the instrument cluster finish panel sub-assembly.

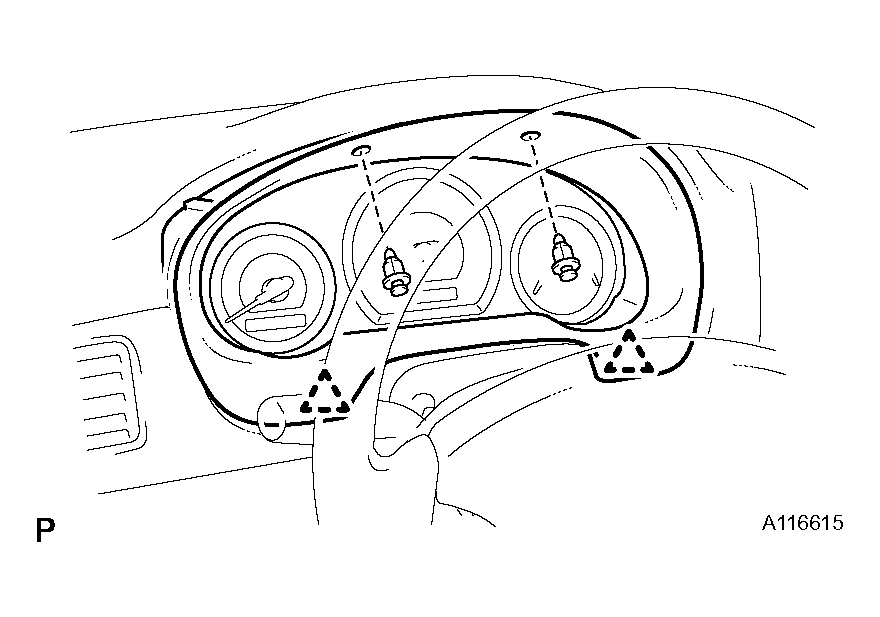

  Fig 1: Removing Clips And Instrument Cluster Finish Panel Sub-Assembly
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REMOVE COMBINATION METER ASSEMBLY
1. Remove the 4 screws.
2. Pull out the combination meter assembly, and disconnect the connectors.

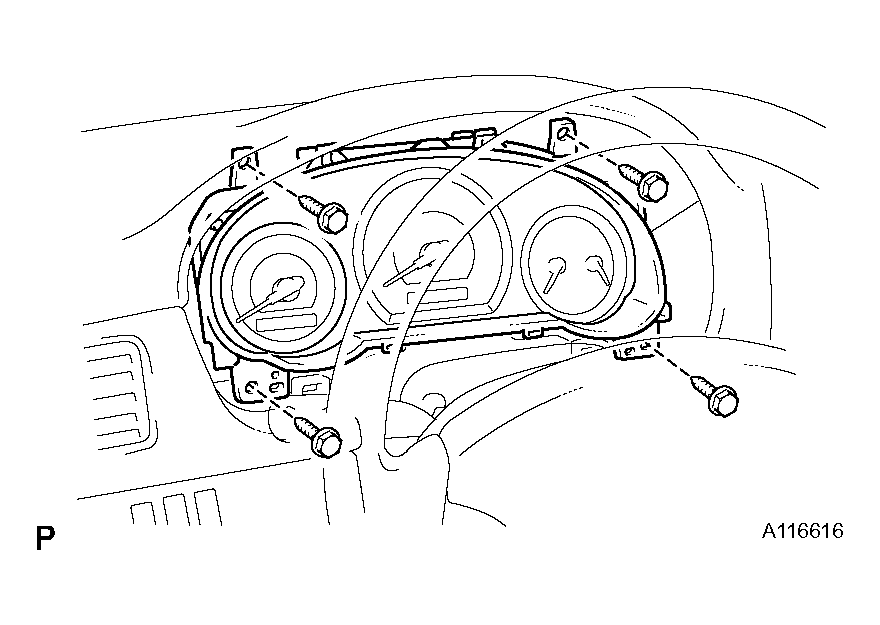

  Fig 2: Removing Screws And Combination Meter Assembly
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
