Combination Meter: Installation

  1. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connectors.
    2. Install the combination meter assembly with the 4 screws.

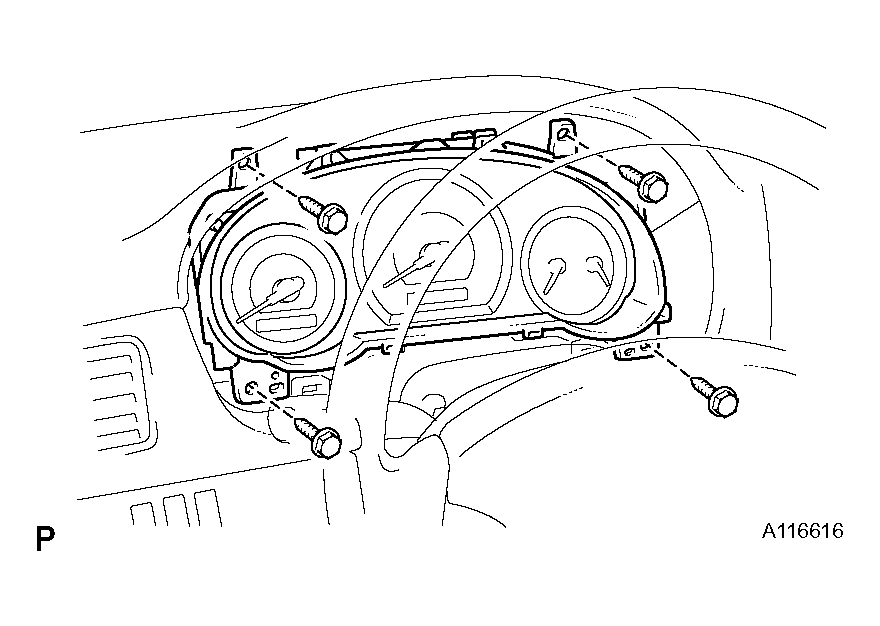

      Fig 1: Installing Combination Meter Assembly With Screws
      G04494994Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Install the instrument cluster finish panel sub-assembly with the 4 clips.
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  4. PERFORM INITIALIZATION
    1. Perform initialization.
      NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal.
      Fig 2: Installing Instrument Cluster Finish Panel Sub-Assembly With Clips
      G04494995Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
