Charging System (3MZ-FE): Generator: Installation

INSTALL GENERATOR ASSEMBLY
1. Temporarily install generator with bolts A and B.

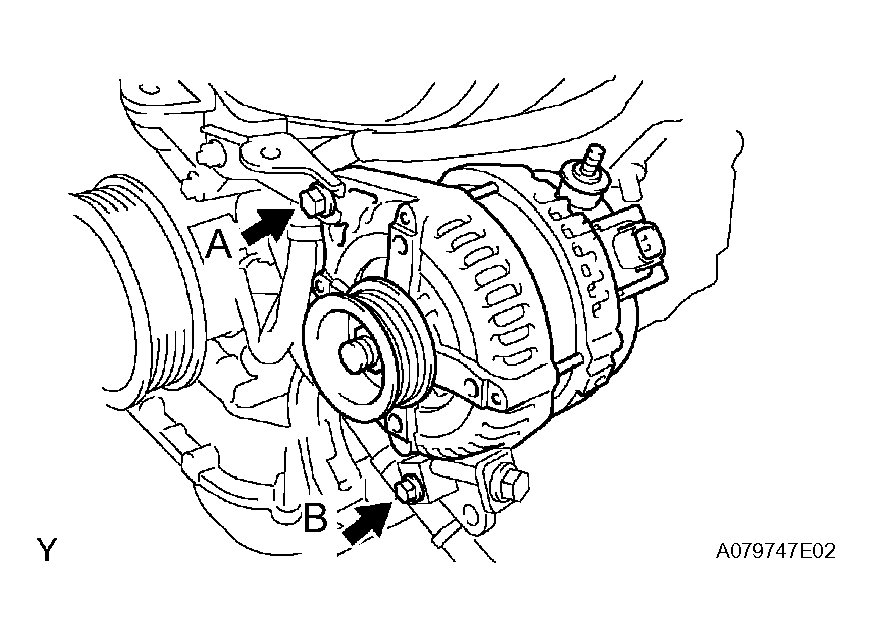

  Fig 1: Temporarily Install Generator Bolts A And B
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

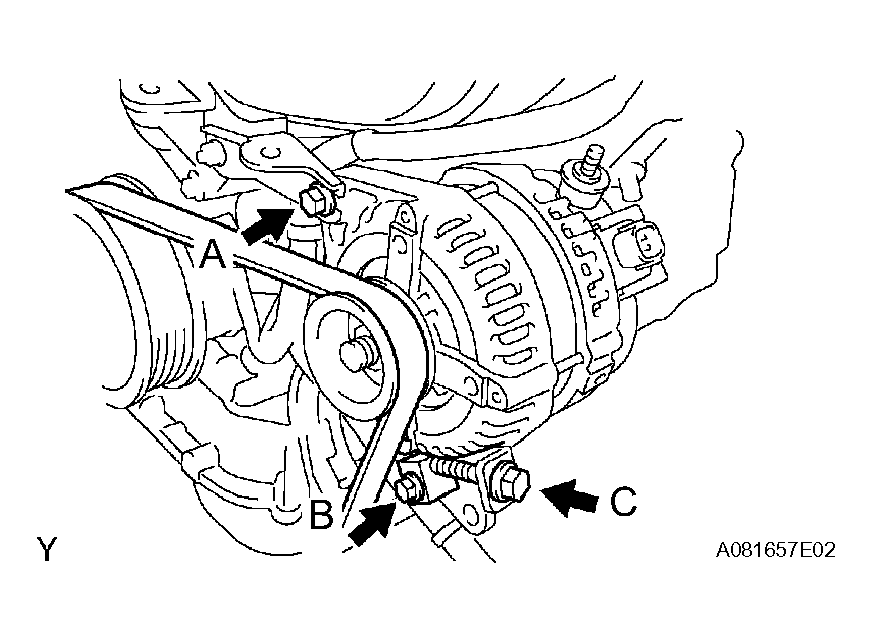

2. Adjust the V belt No. 1 tension by tightening bolt C. (See ON-VEHICLE INSPECTION )
3. Tighten bolts A and B.
  Torque:
  - 58 N*m (592 kgf*cm, 43 ft.*lbf) for bolt A
  - 18 N*m (184 kgf*cm, 13 ft.*lbf) for bolt B
4. Install the generator wire with the nut.
  Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)
5. Connect the generator connector.
6. Install the wire harness clamp.
INSPECT DRIVE BELT (See ON-VEHICLE INSPECTION )
