Cigarette Lighter: Installation

  1. INSTALL CIGARETTE LIGHTER ASSEMBLY
    1. Engage the 2 claws to install the cigarette lighter assembly.
    2. Install the cigarette lighter knob.
      Fig 1: Engaging Claws To Installing Cigarette Lighter Assembly
      G04495607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CIGARETTE LIGHTER COVER
    1. Engage the 2 claws to install the cigarette lighter cover.
  3. INSTALL INSTRUMENT CLUSTER CENTER LOWER FINISH PANEL SUB-ASSEMBLY
  4. INSTALL POSITION INDICATOR HOUSING ASSEMBLY
  5. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
  6. INSTALL INSTRUMENT CLUSTER CENTER NO. 2 FINISH PANEL
  7. INSTALL INSTRUMENT CLUSTER CENTER NO. 1 FINISH PANEL

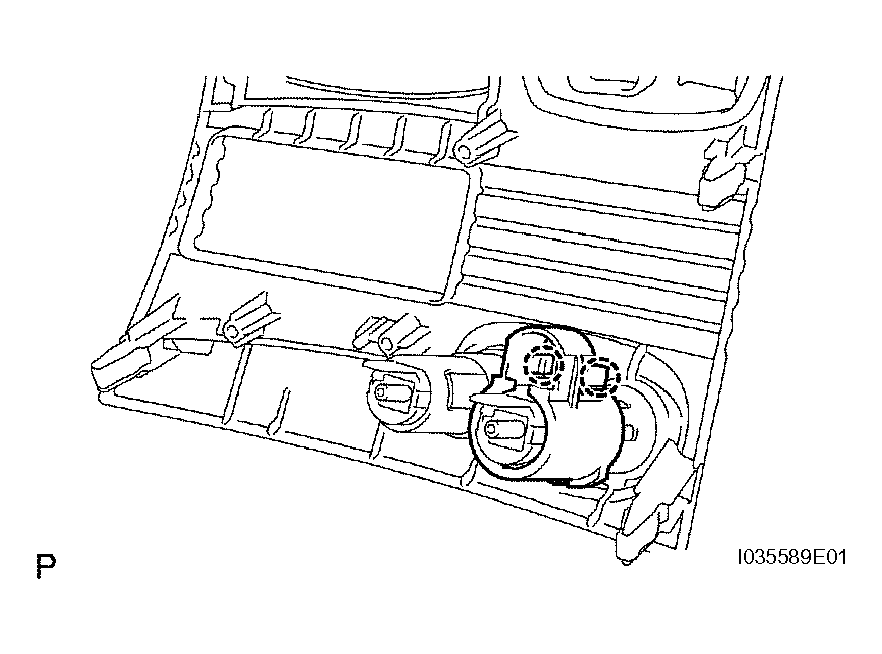

    Fig 2: Locating Claws For Installing Cigarette Lighter Cover
    G04495608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
