Voice is not Recognized

1. Enter the "Menu" screen by pressing the "MENU" switch.
   Fig 1: Pressing "MENU" Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Select "Setup".
3. Check that "Voice Recognition Guidance" is not OFF.

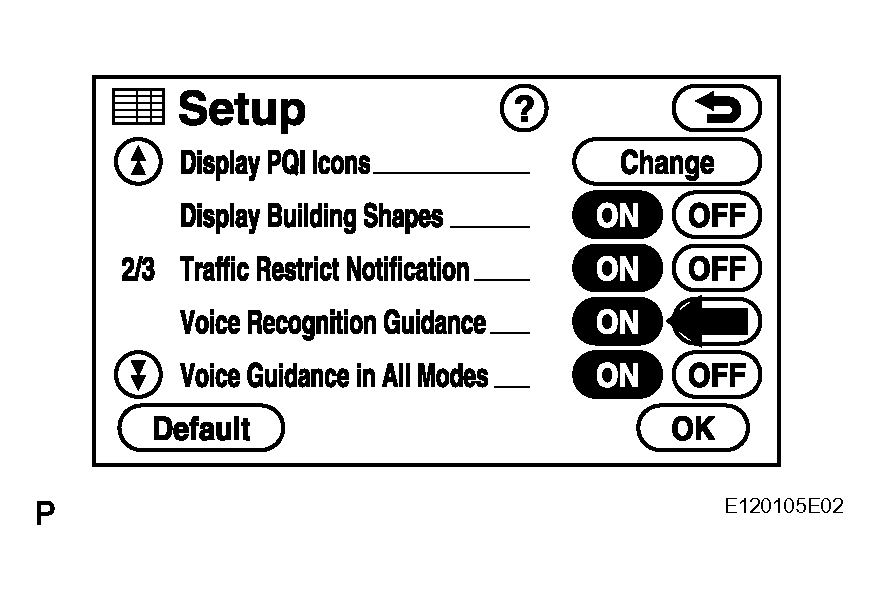

   Fig 2: Checking "Voice Recognition Guidance" Is Not OFF

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: Voice Recognition Guidance is not OFF.

NG: TURN VOICE RECOGNITION GUIDANCE "ON"

OK: GO TO NEXT STEP.

1. Check that the map disc is not deformed or cracked.

   OK: No deformations or cracks on map disc.

   Fig 3: Ensure Map Disc Is Not Cracked Or Deformed

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE MAP DISC

OK: GO TO NEXT STEP.

1. Check for dirt on the map disc surface.

   OK: No dirt is on the map disc surface.

   NOTE: Do not use a conventional record cleaner or antistatic preservative.

   HINT:

   If the disc is dirty, clean the disc by wiping the disc's surface radially with a soft cloth.

   Fig 4: Cleaning Disc

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: CLEAN MAP DISC

OK: GO TO NEXT STEP.

1. Enter the "MICROPHONE & VOICE RECOGNITION CHECK" mode (See NAVIGATION CHECK MODE  ).
2. When voice is input into the microphone, check that the microphone input level meter changes according to the input voice.
3. Push the recording switch and perform voice recording.

   HINT:

   Voice can be recorded up to 5 seconds.

4. Check that the recording indicator remains on while recording and that the recorded voice is played normally without noise or distortion.

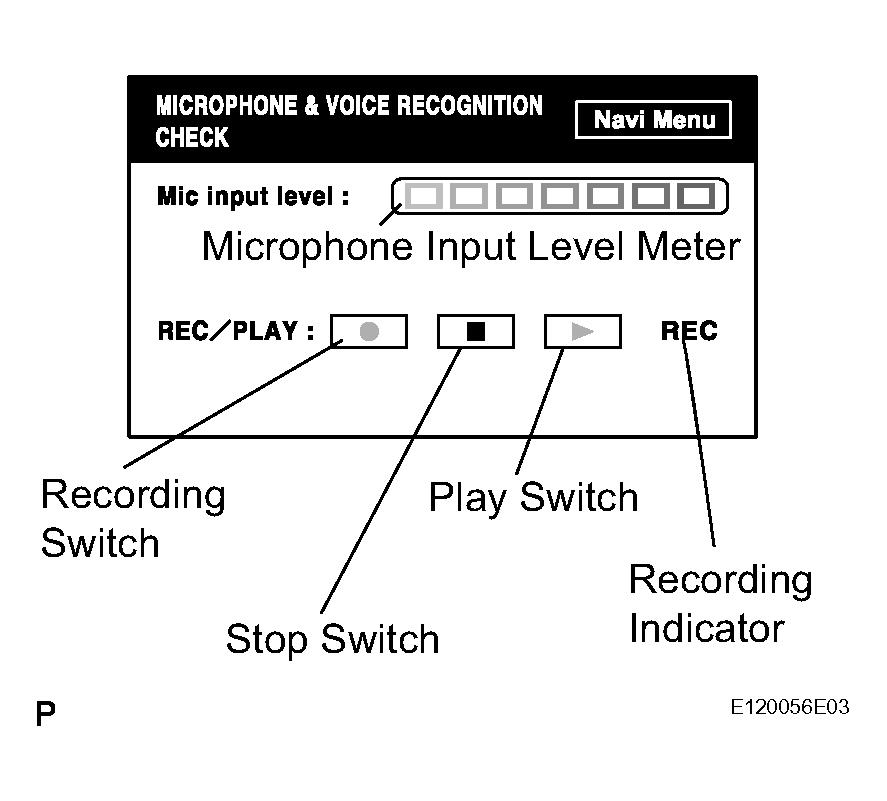

   Fig 5: Checking Microphone (Navigation Check Mode)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: All check results are normal.

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

OK: REPLACE RADIO AND NAVIGATION ASSEMBLY
