MAP Disc cannot be Inserted

1. Check if a disc is inserted into the MAP disc slot.

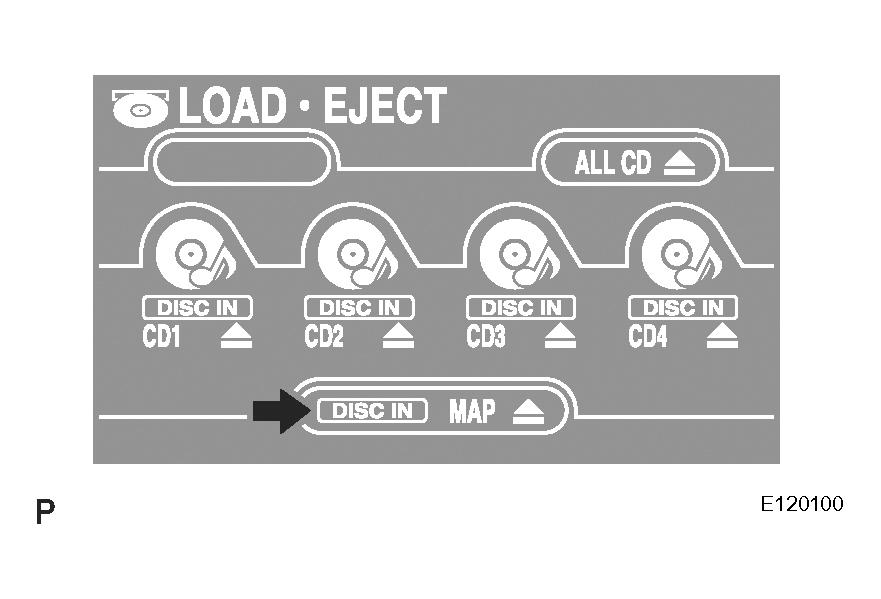

   1. Check if "DISC IN" is displayed.

      OK: "DISC IN" is displayed.

   Fig 1: Checking Disc Cannot Be Inserted

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: EJECT DISC

OK: GO TO NEXT STEP.

1. Check that the map disc is not deformed or cracked.

   OK: No deformations or cracks on map disc.

   Fig 2: Ensure Map Disc Is Not Cracked Or Deformed

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE MAP DISC

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
