Home >> Toyota >> 2006 >> Sienna CE >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio/Visual >> Video Terminal >> Components

Video Terminal: Components

Fig 1: Identifying Video Terminal Components And Replacements (1 Of 3)
G04495188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Video Terminal Components And Replacements (2 Of 3)
G04495189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

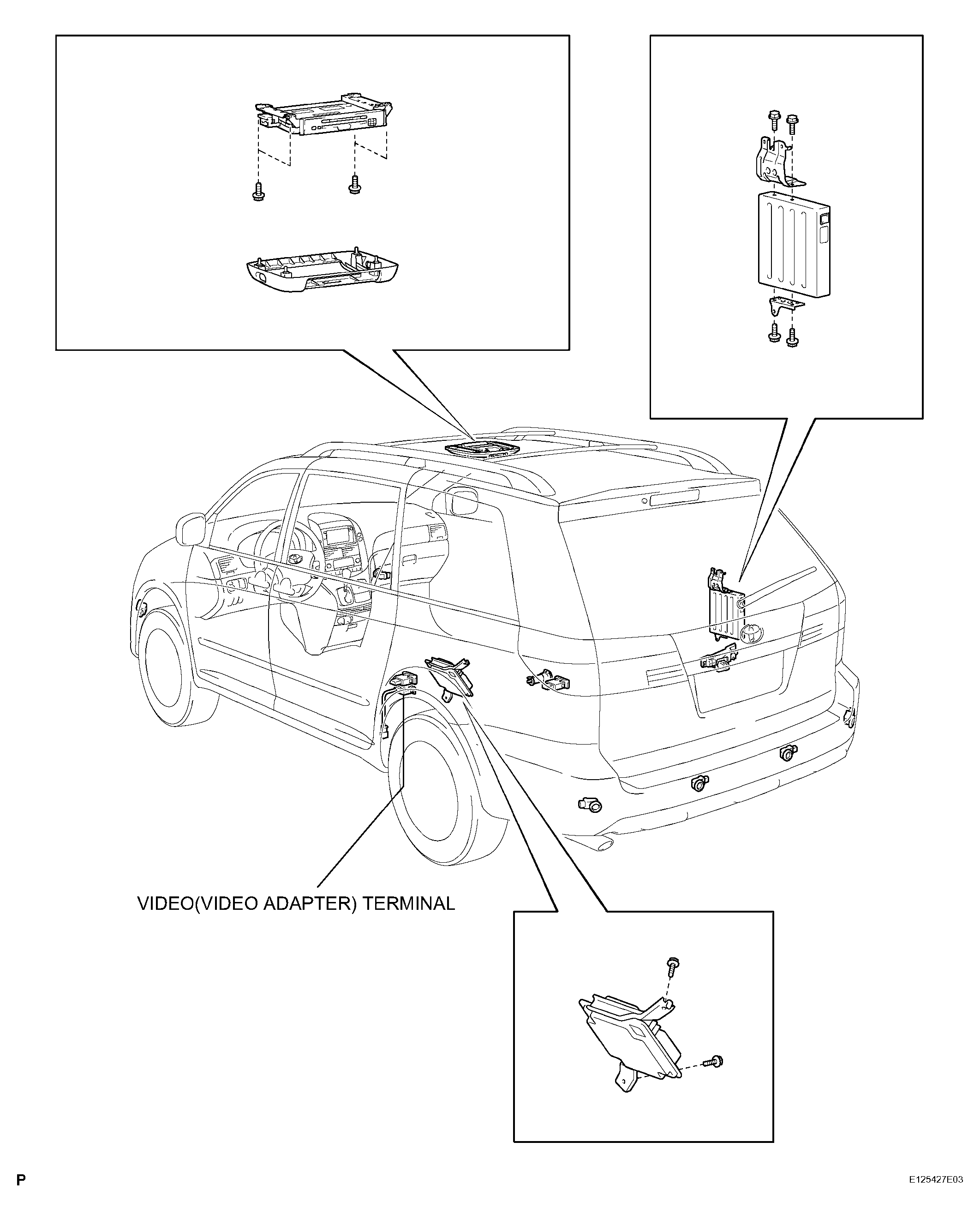

Fig 3: Identifying Video Terminal Components And Replacements (3 Of 3)
G04495190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
