Distance Control ECU Power Source Circuit: Wiring Diagram

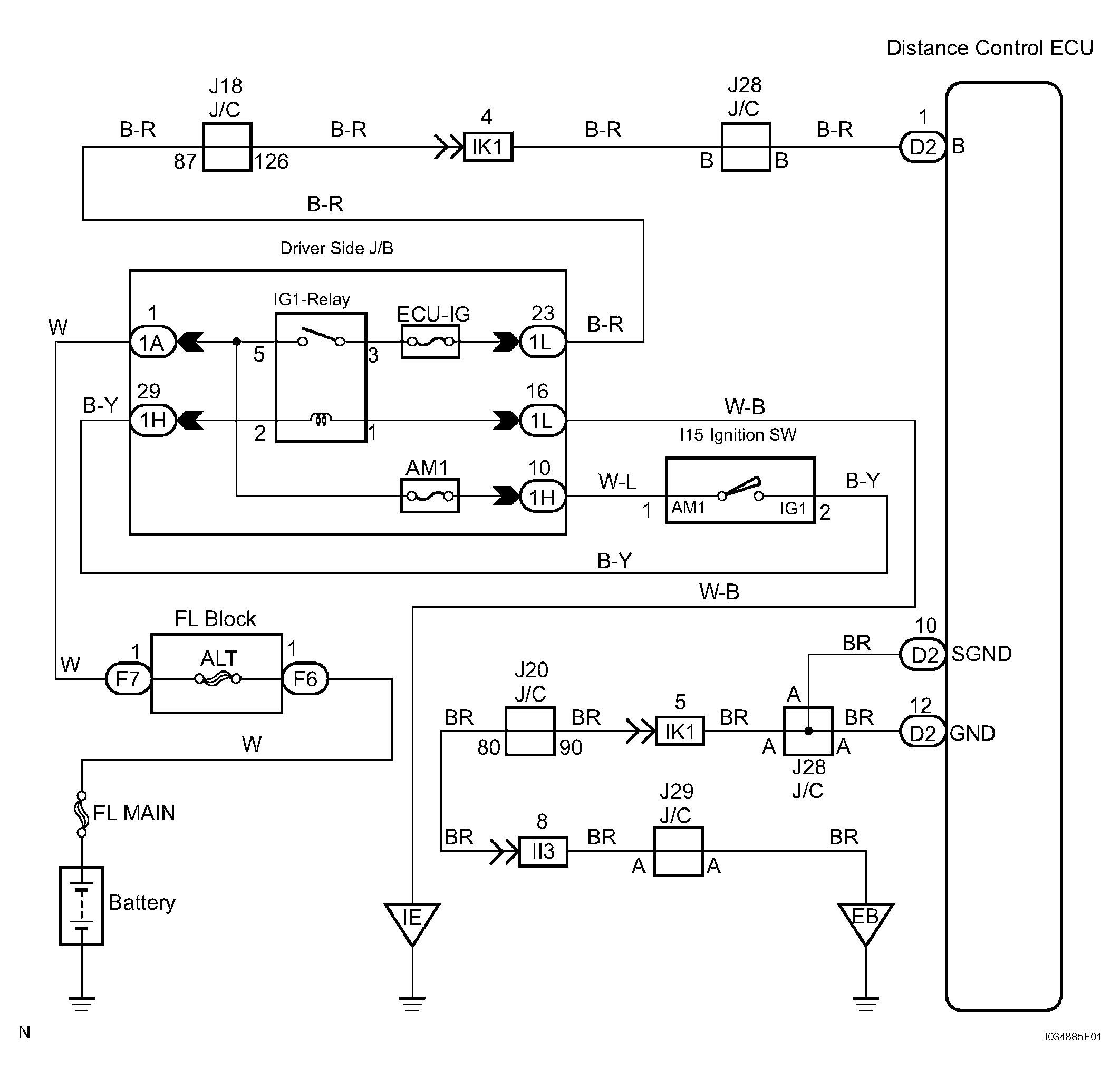

Fig 1: Distance Control ECU Power Source Circuit - Wiring Diagram
G04494816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
