Front Upper Suspension Arm: Components

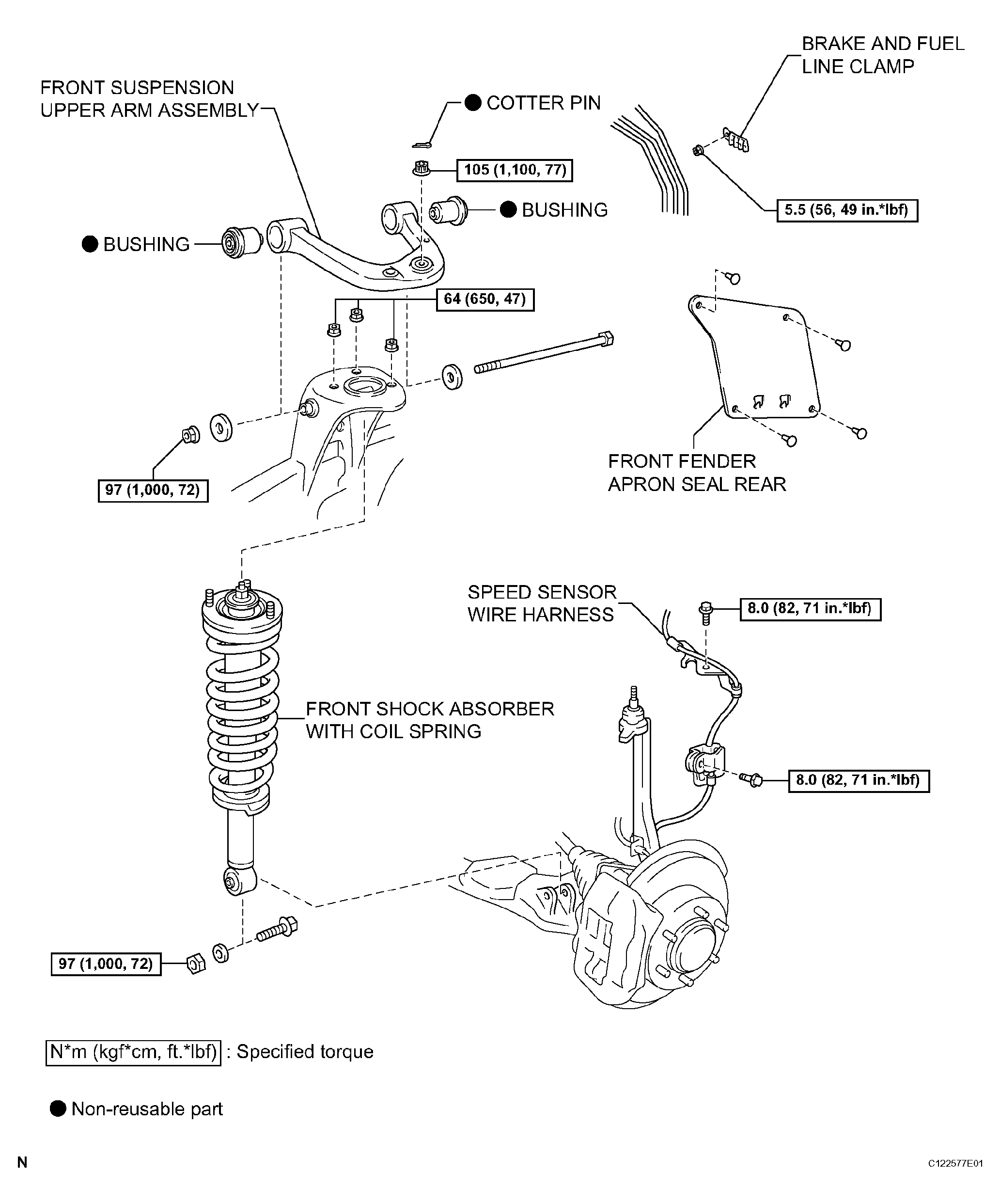

Fig 1: Identifying Front Upper Suspension Arm Components & Replacements

G04509265

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
