Front Axle Hub: Reassembly

INSTALL FRONT AXLE HUB BEARING

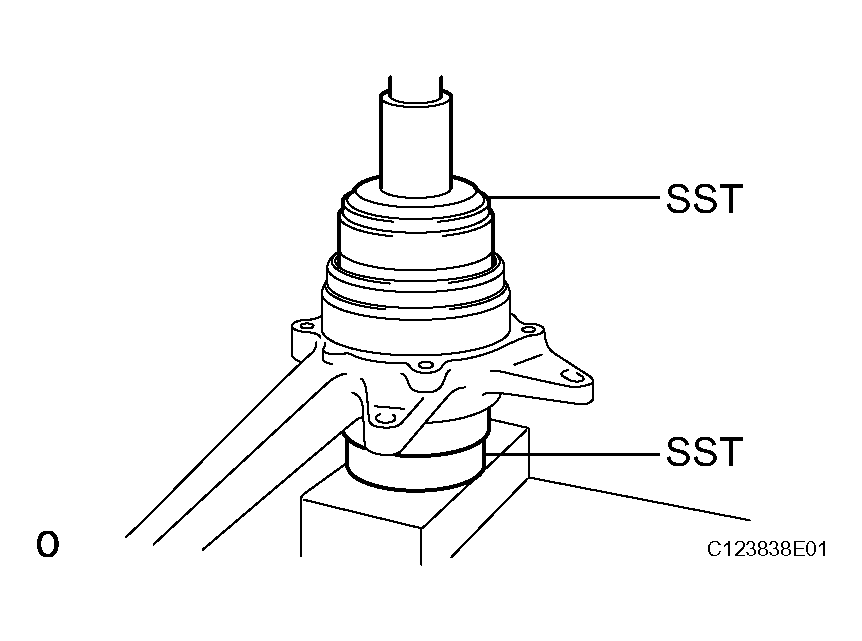

1. Using SST and a press, install a new bearing to the steering knuckle.
  SST 09527-17011, 09950-60020 (09951-00910)
2. Using snap ring pliers, install a new snap ring.

  Fig 1: Installing Front Axle Hub Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT AXLE HUB OIL SEAL

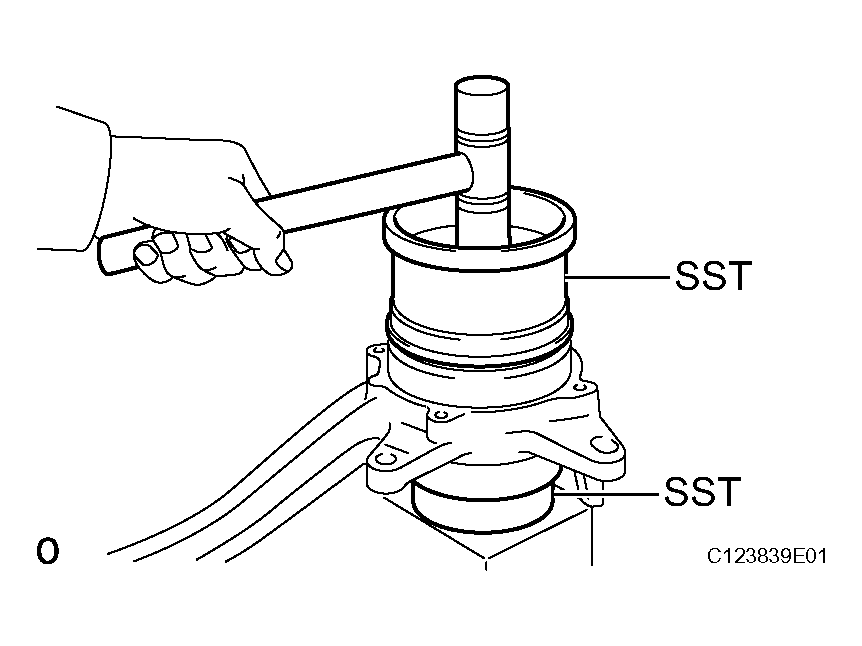

1. Using SST and a plastic hammer, install a new oil seal (outside).
  SST 09223-15030, 09527-17011
2. Coat MP grease to the oil seal lip.
INSTALL FRONT AXLE HUB
1. Install the dust cover to the steering knuckle with the 4 bolts.
  Torque: 18 N*m (185 kgf*cm, 13 ft.*lbf)

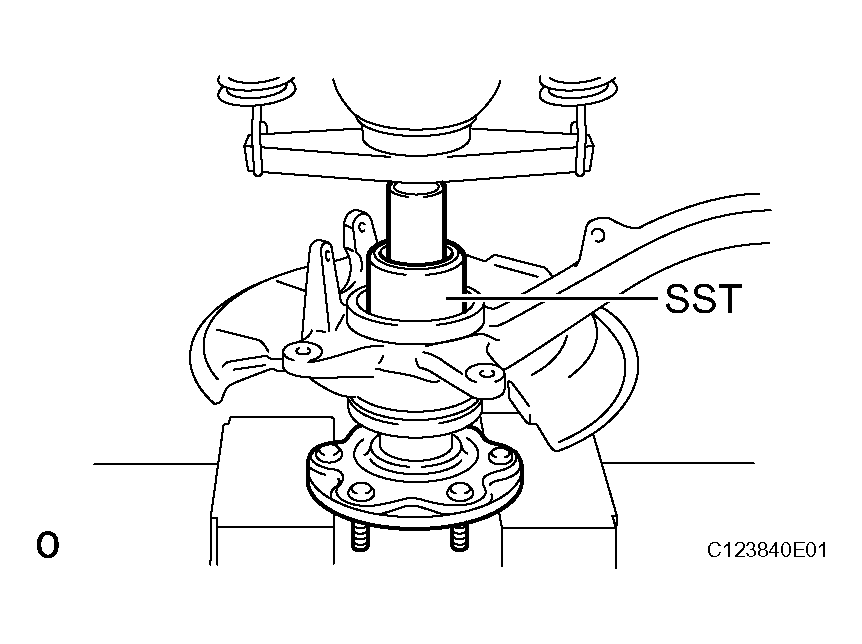

2. Using SST and a press, install the axle hub to the steering knuckle.
  SST 09649-17010

  Fig 2: Install Axle Hub To Steering Knuckle Using SST & A Press
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SPEED SENSOR ROTOR
NOTE: Do not scratch the serration of the speed sensor rotor.

Fig 3: Installing Front Axle Hub
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT AXLE LOCK NUT (for 2WD)

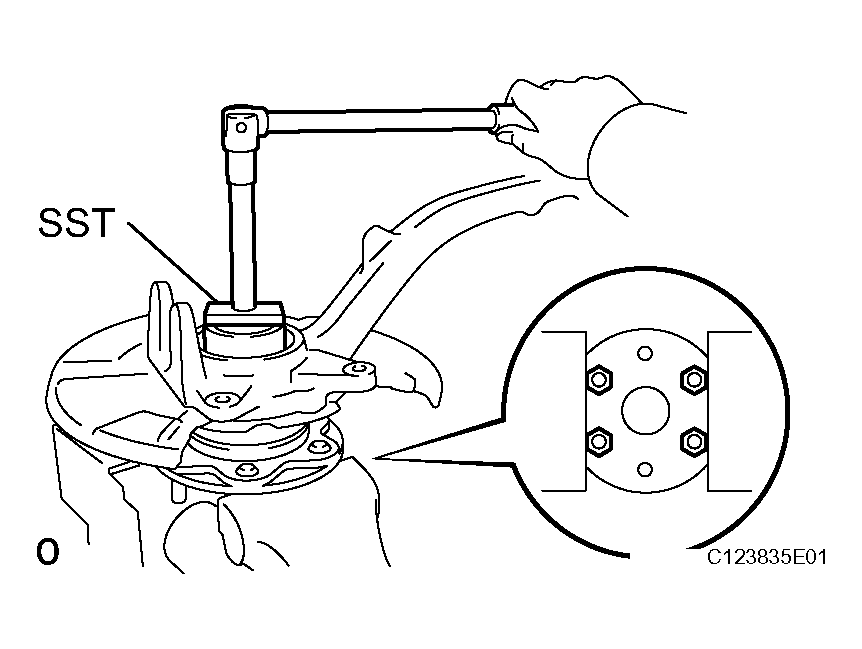

1. Using SST, install and torque a new lock nut to the axle hub.

  Fig 4: Installing & Torquing A New Lock Nut To Axle Hub Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09318-12010

  Torque: 274 N*m (2,800 kgf*cm, 203 ft.*lbf)
2. Using a chisel and hammer, stake the lock nut.
INSTALL FRONT WHEEL INNER BEARING SPACER (for 4WD)

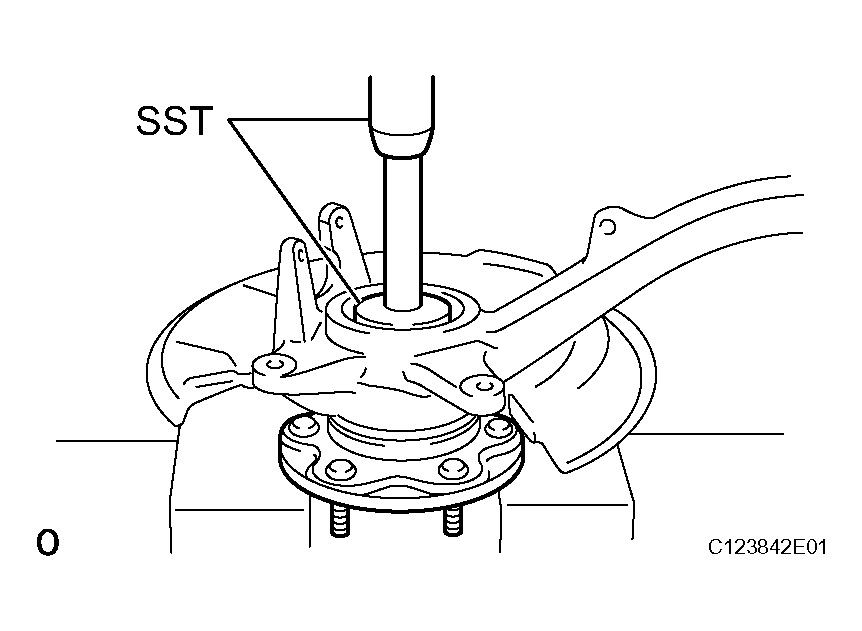

1. Using SST and a press, install the bearing spacer.
  SST 09950-60010 (09951-00650), 09950-70010 (09951-07150)
INSTALL FRONT AXLE HUB GREASE CAP (for 2WD)
INSTALL FRONT AXLE HUB OIL SEAL (for 4WD)

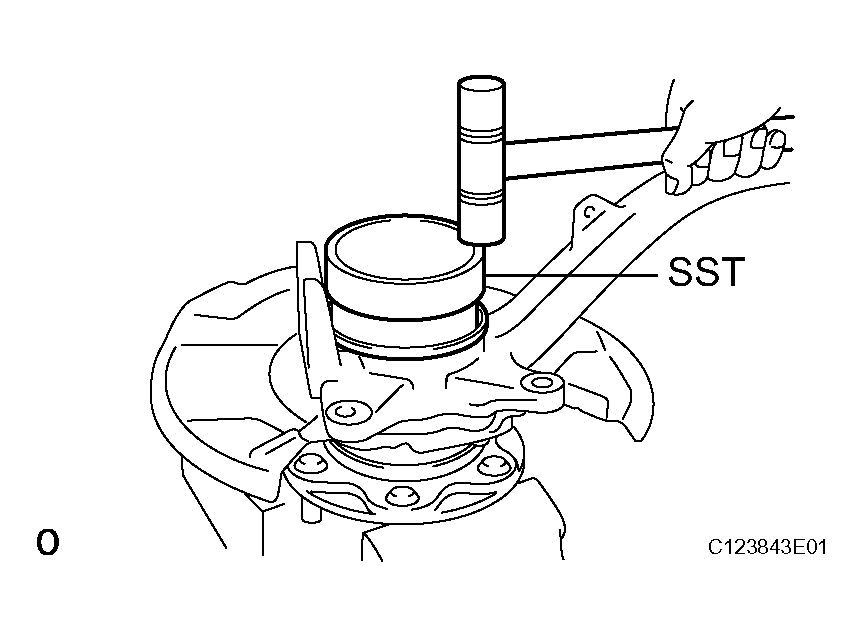

1. Using SST and a plastic hammer, install a new oil seal (inside).
  SST 09527-17011

  HINT:

  Lightly strike the SST on its circumference evenly.
2. Coat MP grease to the oil seal lip.

  Fig 6: Installing A New Oil Seal (Inside) Using SST & A Plastic Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
