Front Axle Hub: Components

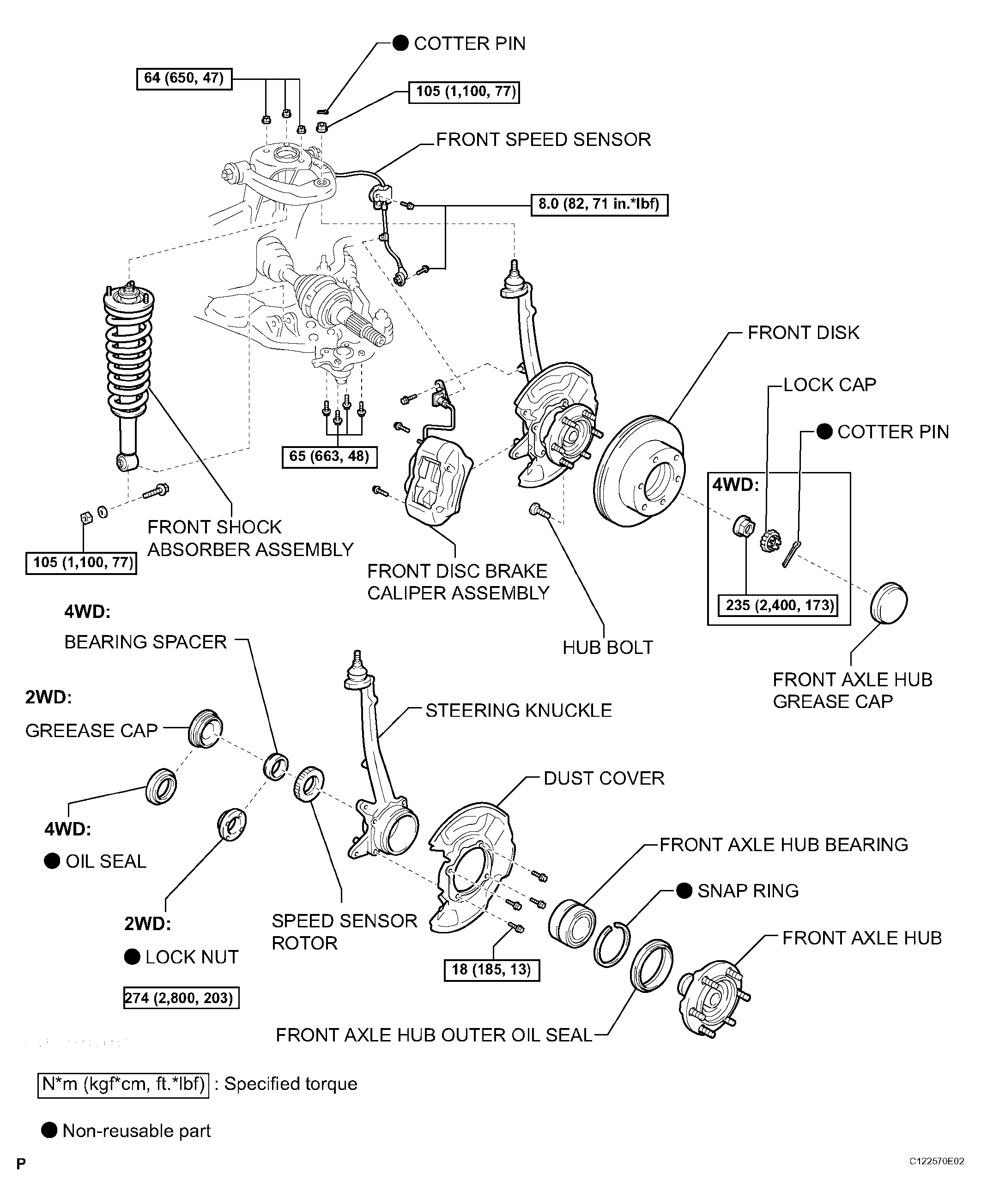

Fig 1: Identifying Front Axle Hub Components
G04509104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
