Starting System: Starter: Installation

INSTALL STARTER
1. Install the engine wire protector to the starter with the bolt.
  Torque: 9.81 N*m (100 kgf*cm, 84 in.*lbf)
2. Connector the starter wire with the nut.
  Torque: 9.81 N*m (100 kgf*cm, 84 in.*lbf)
3. Connect the starter connector.
4. Connect the starter to the cylinder block.
5. Connect the engine wire with the bolt.

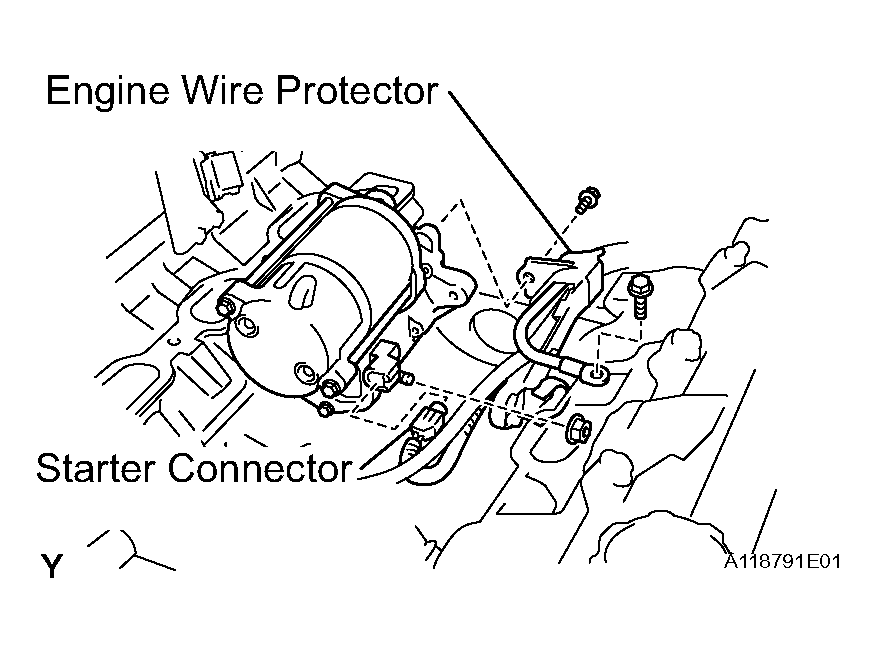

  Fig 1: Installing Engine Wire Protector To Starter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the starter with the 2 bolts
  Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)
INSTALL AIR PUMP ASSEMBLY
(See INSTALLATION )
INSTALL INTAKE MANIFOLD ASSEMBLY
(See INSTALLATION )
CONNECT THROTTLE BODY ASSEMBLY TO INTAKE MANIFOLD
(See INSTALLATION )

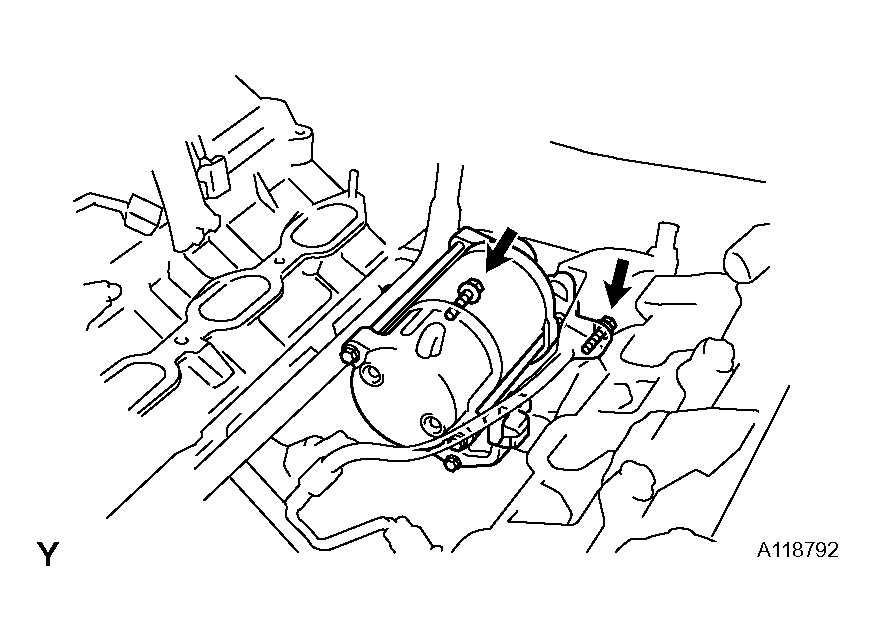

Fig 2: Installing Starter With 2 Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE AIR CONNECTOR
INSTALL THROTTLE BODY COVER
CONNECT CABLE TO NEGATIVE (-) BATTERY TERMINAL
PERFORM INITIALIZATION
1. Some system need initialization when disconnecting the cable from the battery terminal (See INITIALIZATION ).
