Remote Control Mirror without Driving Position Memory: Notes

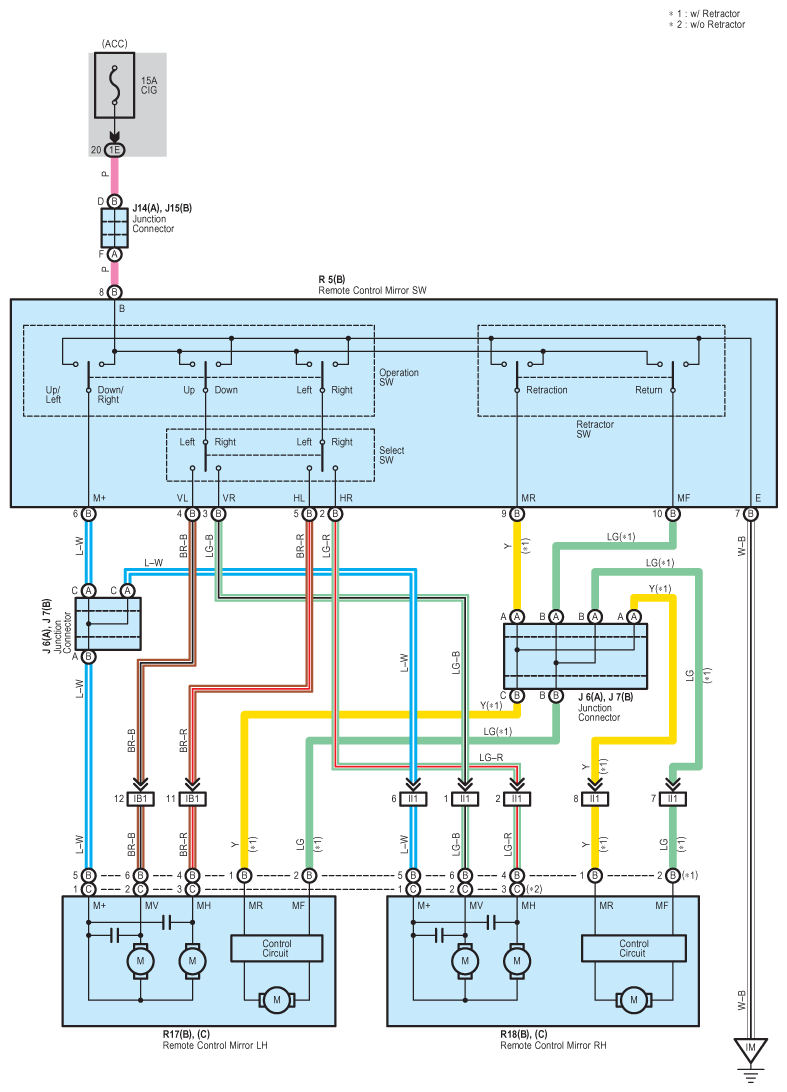

Fig 1: Remote Control Mirror (Without Driving Position Memory) System Wiring Diagram

G08789821

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
