Navigation and Audio System without RSES: Notes

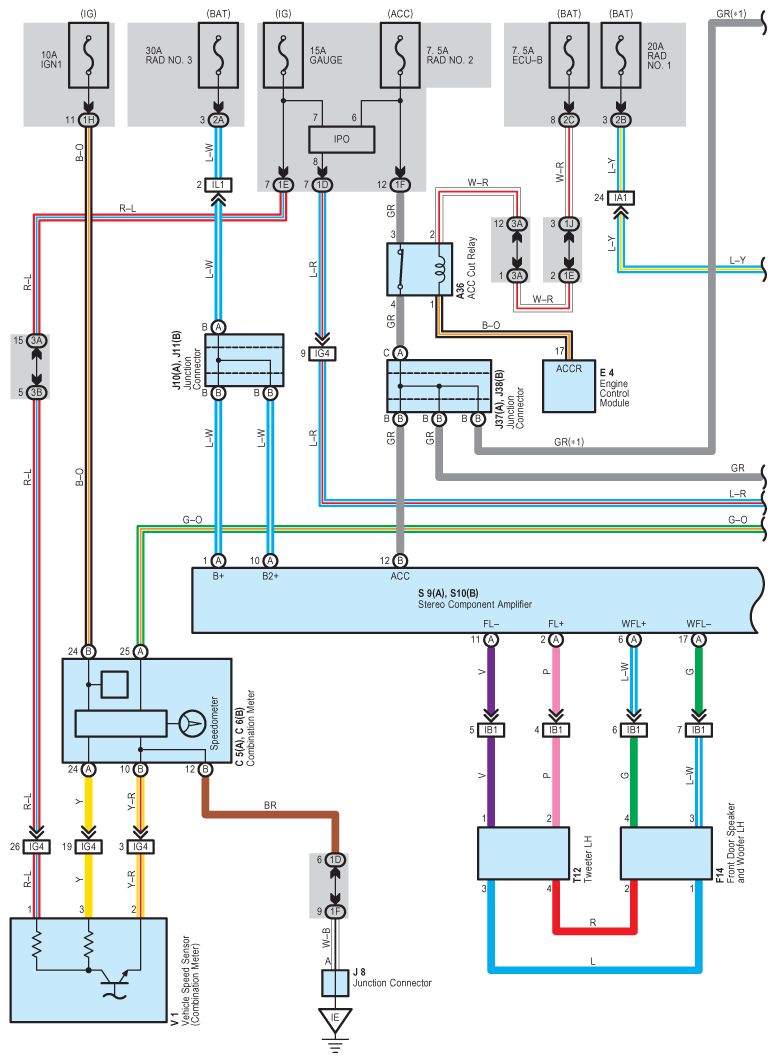

Fig 1: Navigation And Audio System (Without RSES) Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

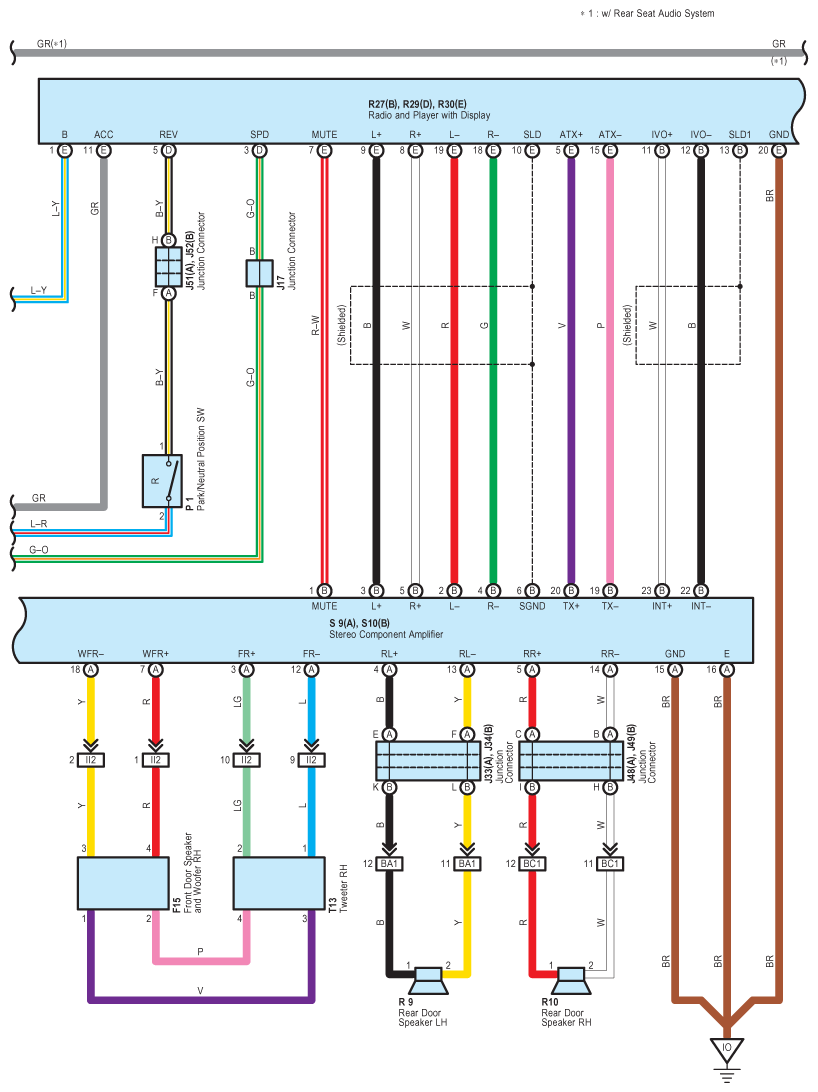

Fig 2: Navigation And Audio System (Without RSES) Wiring Diagram (2 Of 3)

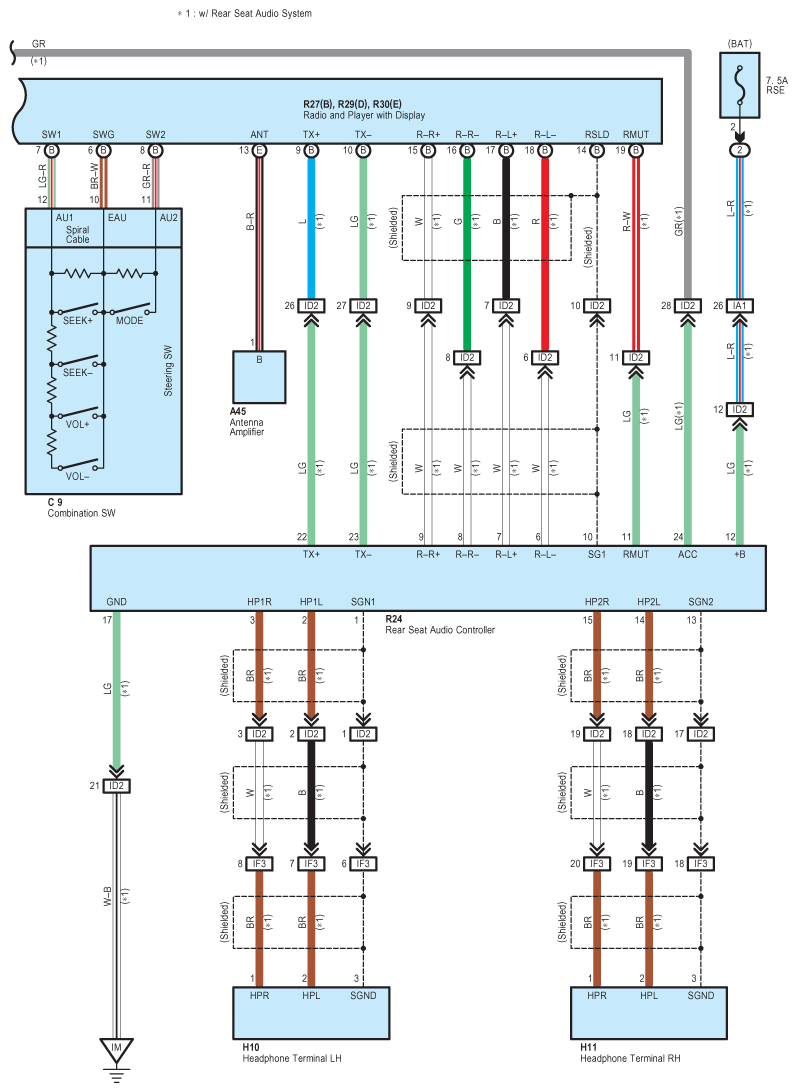

Fig 3: Navigation And Audio System (Without RSES) Wiring Diagram (3 Of 3)
