Multiplex Communication System - CAN Bus: Notes

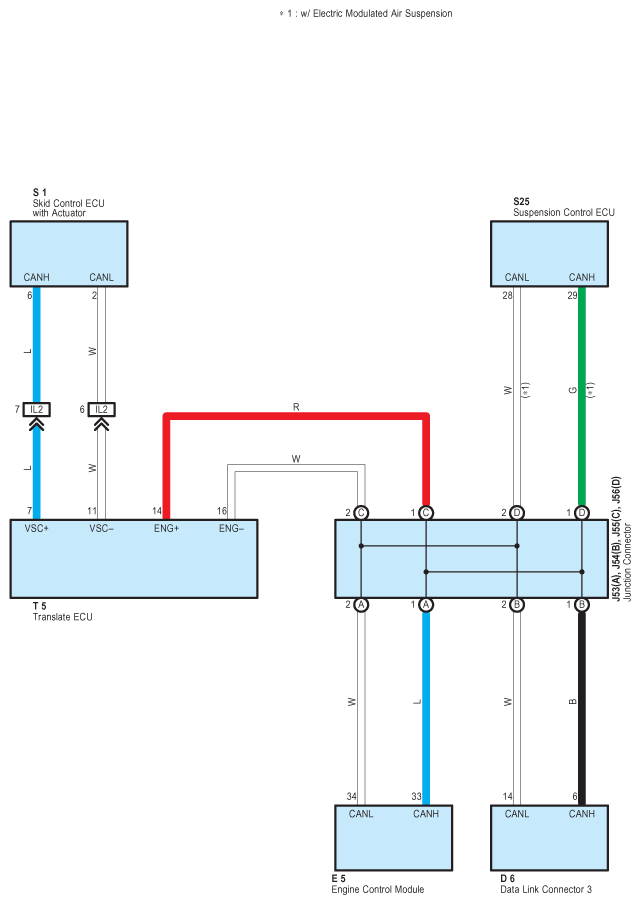

Fig 1: Multiplex Communication System (CAN Bus) Wiring Diagram

G08789735

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
